Feed Mixers

Jaylor 6750HD

Jaylor’s Twin Auger mixers are engineered for farms that need fast, consistent feed processing with maximum efficiency. Featuring Jaylor’s patented square-cut auger design, these mixers deliver a uniform, fluffy TMR while reducing fuel use and mixing time. The twin-auger layout handles larger volumes with ease, improves vertical feed movement, and ensures even blending of all ingredients, from long fibre to finer supplements. Built tough and simple to maintain, Jaylor Twin Augers are a reliable choice for New Zealand operations looking for performance, durability, and low total cost of ownership.

5 Models

Jaylor 6425

Jaylor 6750

Jaylor 6750HD

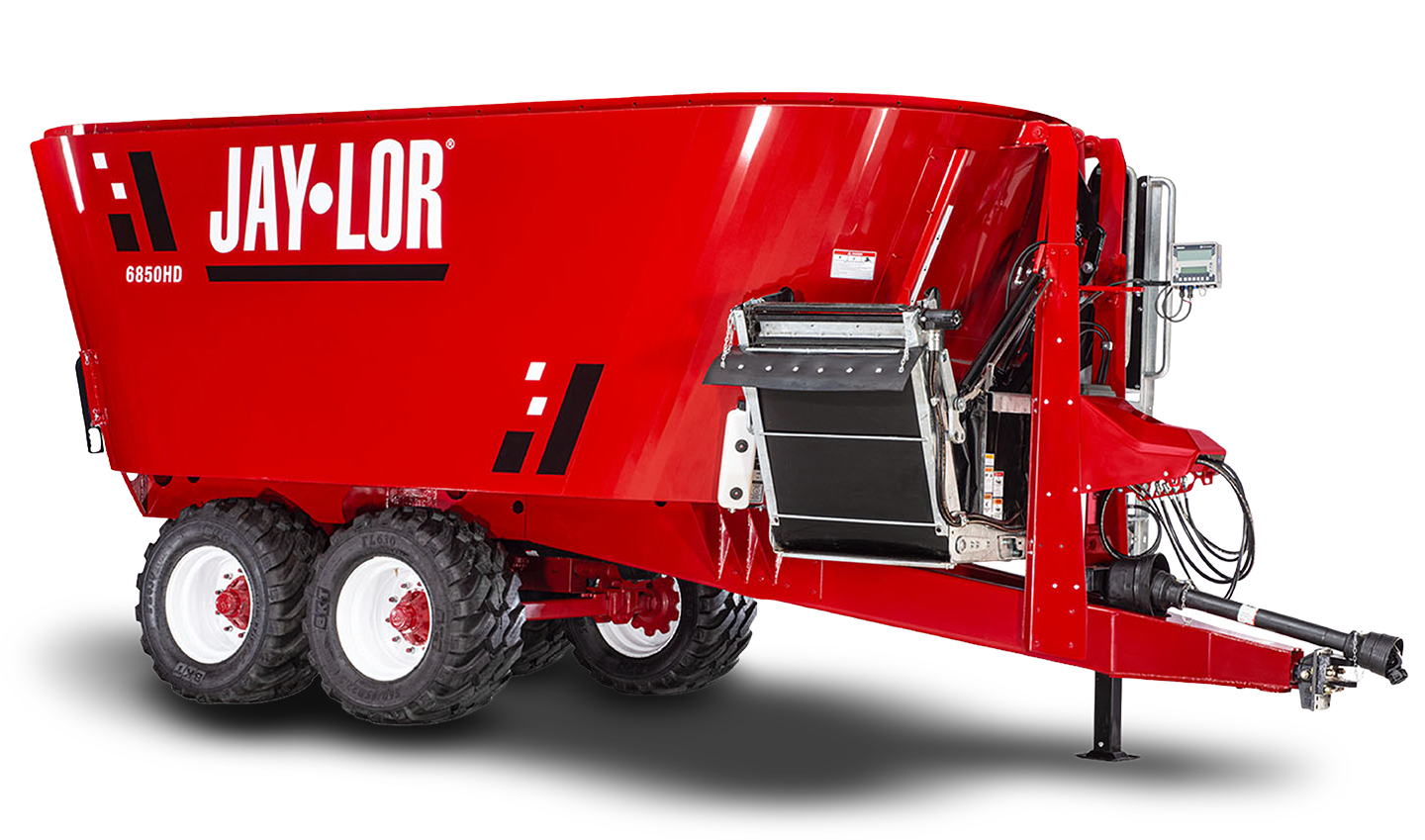

Jaylor 6850

Jaylor 6850HD

With 12" Extension

21.0m3

With 16" Extension

22.1m3

Height

305cm

Length

737cm

Auger speed

38 RPM

Jaylor 6750HD

Overview
Features
Models
Video
Gallery

The Jaylor 6750HD is one of the most cost-effective twin-auger mixers available, offering 21 m³ of capacity. Built to a high specification, it operates with a 1000 PTO rpm input, which significantly reduces the load on the tractor.

The unit comes standard with a reduction start-up gearbox. Combined with the higher input drive speed and the twin-reduction planetary gearboxes, this setup allows the augers to consistently maintain a speed of 38 rpm. Reinforced 17-inch rims and heavy-duty 26-ply tyres provide the strength to carry more than 11,000 kg of wet mixed feed across four wheels with ease.

A twin-axle system with centre oscillation ensures smoother travel over rough terrain, reducing bowl pitching by more than 50% when crossing nib walls. All twin-auger models are equipped with wide-angle Series 8 drive shafts. The 6750HD has an empty weight of approximately 5,900 kg, and it is covered by Jaylor’s standard warranty package.

Save time while using 20% less horsepower

Using 20% less horsepower and requiring less time per mix than conventional mixers — a Jaylor mixer reduces fuel consumption and ensures a longer operating life.

The Jaylor Auger

Sloped Top

Exclusive, patented design, prevents bale bridging, enabling rapid cutting and efficient mixing of even the toughest forages, enhancing overall feed quality.

Vertical Knives

Enhances cutting efficiency, reducing forage processing times and improving the distribution of high forage rations to ensure a cleaner, more uniform mix.

Slide Plate Technology

Gathers feed gently into the auger, reducing friction and cutting horsepower needs by 20%, which means lower energy costs and a smoother operation.

Square-Cut Edges

Patented design to reduce pressure on the mix, rapidly and efficiently process baled forage into a uniform TMR, that resists sorting and delivers consistent shaker box results.

Carbide-Coated Knives

Knives that stay sharp longer, thanks to their self-sharpening design. The low angle and serrated edges provide a true slicing action, reducing the need for brute force.

Specifications

Compare specifications below, to find out what will be suit your operations

Models	Jaylor 6425	Jaylor 6750	Jaylor 6750HD	Jaylor 6850	Jaylor 6850HD
Augers	1	2			2
Horse Power	70	115	125		135
Capacity No Extension	12.7m3	N/A		22.7m3
Capacity 8" EXTENSION	13.7m3	N/A
Capacity 12" extension	14.6m3	21.0m3		25.8m3
Capacity 16" extension	15.3m3	22.1m3		27.2m3
Weight	3400kg	5900kg		6100kg	8000kg
Length	538cm	737cm		782cm
Height	274cm	284cm	305cm	274cm	305cm
Drum Width	246cm	231cm		246cm
PTO Speed	540 RPM	1000 RPM
Auger Speed	41 RPM	38 RPM
Knives	9	18
Max. Discharge Height	190cm		201cm	190cm	203cm
Conveyor Width	91cm
Door Opening Width	107cm
Floor Thickness	16mm				19mm
Drum Wall Thickness	6mm		9mm *with included lower wall stainless steel liner	6mm	9mm *with included lower wall stainless steel liner
Standard Tyre	15.0/55" x 17" 26 ply tyres(2)	15.0/55-17 26 Ply tyres (4)	435/50R-19.5 Super Single tyres (4)	15.0/55-17 26 Ply tyres (4)	560/45R 22.5 BKT FL630 tyres (4)
Wheel Assembly	Single Straight Axle	Dual Oscillating	Walking Beam	Dual Oscillating	Walking Beam
