Väderstad Spirit seed drills are designed for New Zealand farmers and contractors who need high-capacity, precision seeding with fertiliser application in a single pass. By combining seedbed preparation, reconsolidation, seeding and pressing, they deliver accurate seed placement and consistent crop establishment. Advanced metering systems and precise row depth control ensure uniform emergence across the field, even at higher working speeds. Built for efficiency and reliability, the Spirit is ideal for modern NZ cropping systems.

4 Models Working Width

400C

4 m

600C

6 m

800C

8 m

900C

9 m

4 - 9 m

5000 Litre Hopper Capacity

>125 HP Requirements

125 mm Row Spacing

Väderstad Spirit 400-900C

Overview
Features
Video
Specifications
Gallery

Talk to an Expert

Väderstad Spirit 400-900C

Overview
Features
Video
Specifications
Gallery

Talk to an Expert

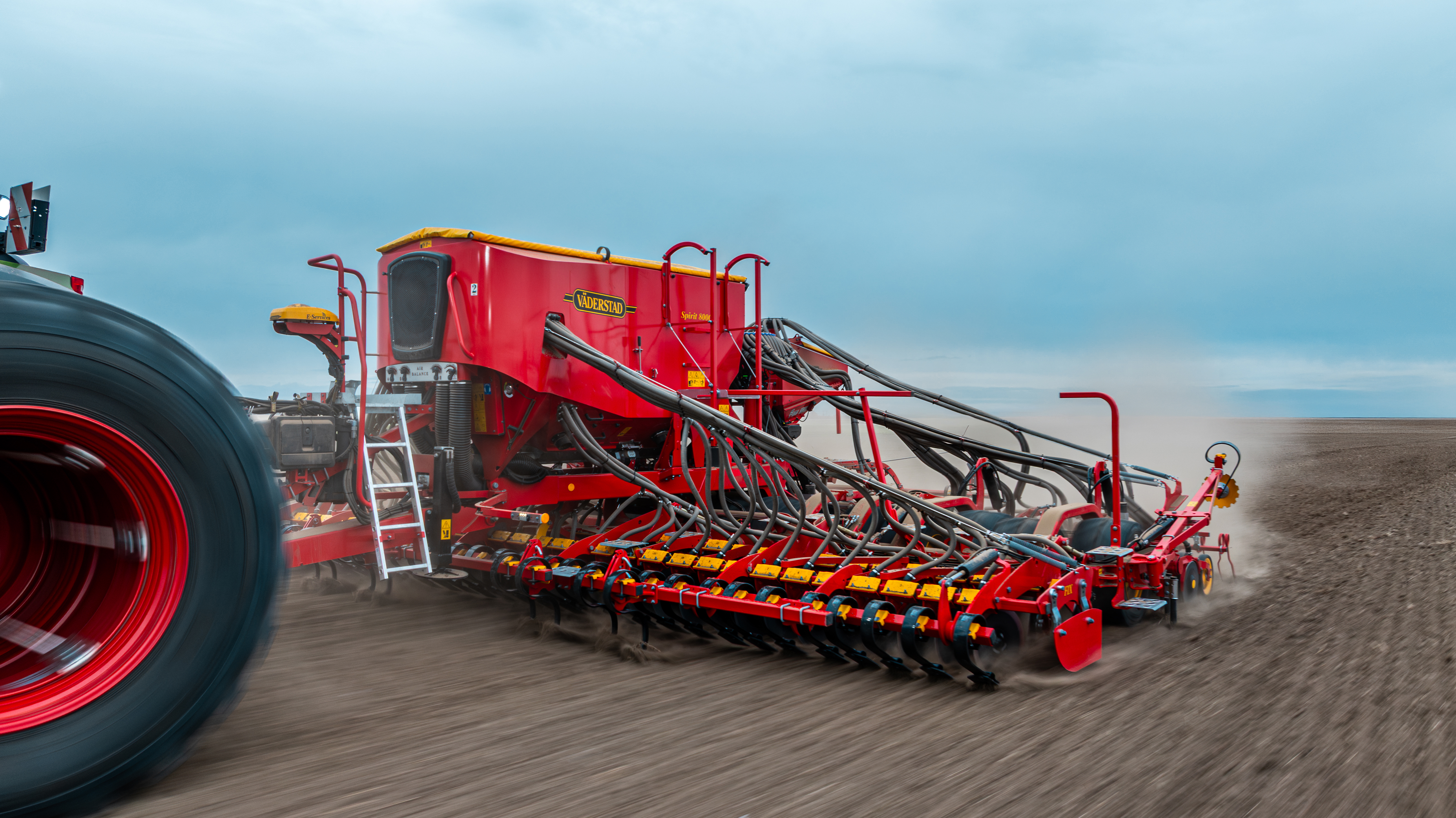

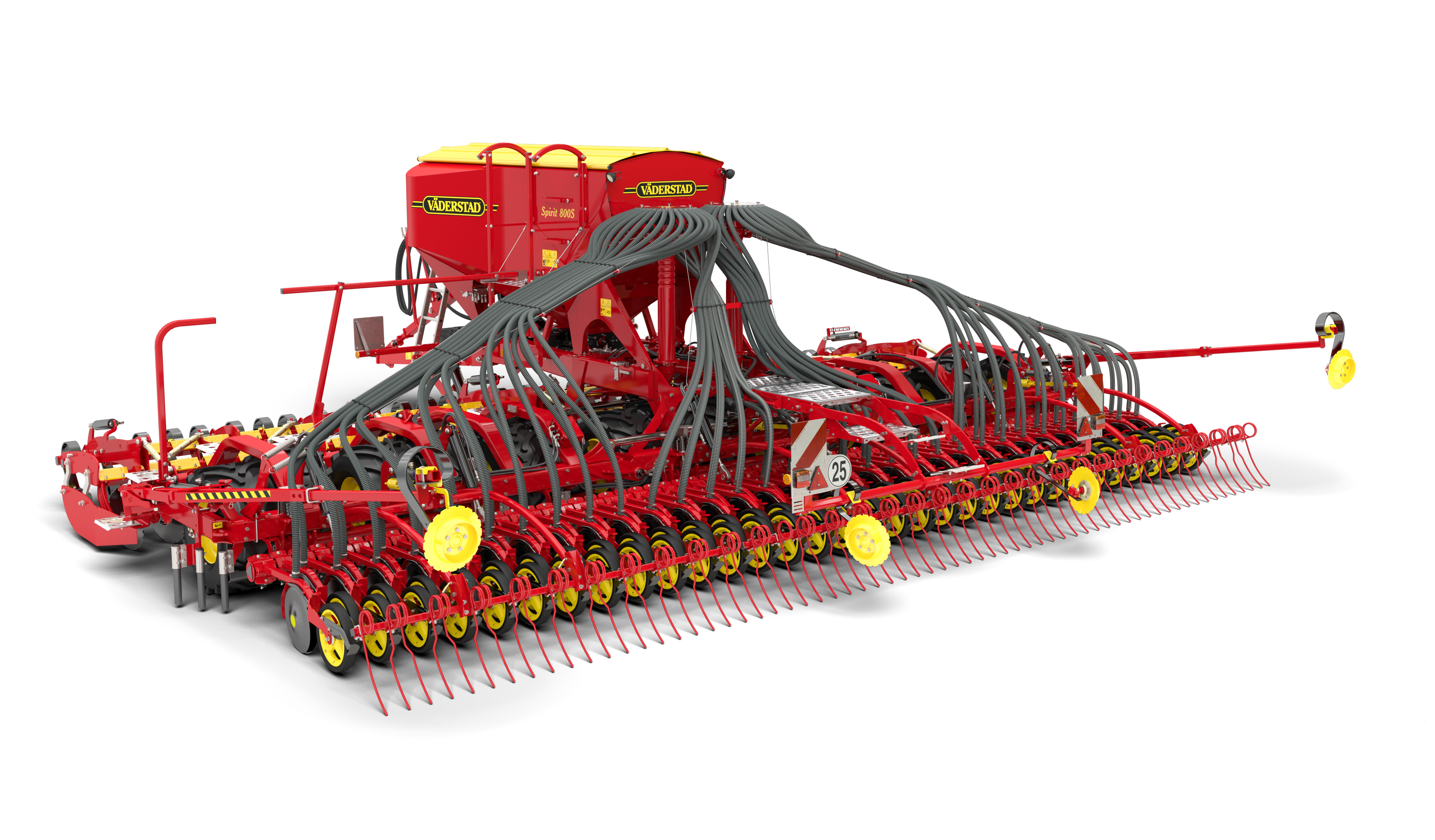

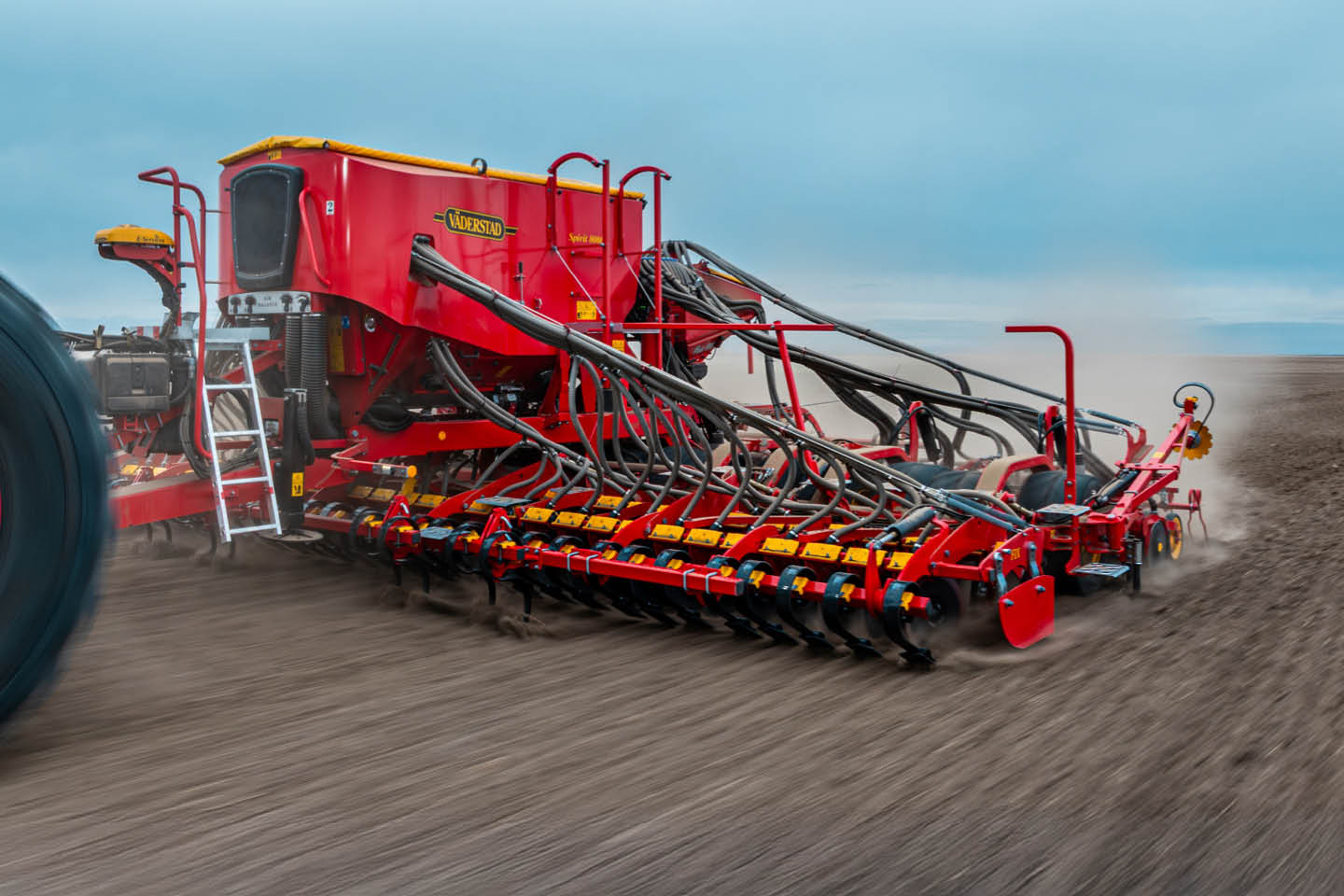

Väderstad Spirit Seed Drill

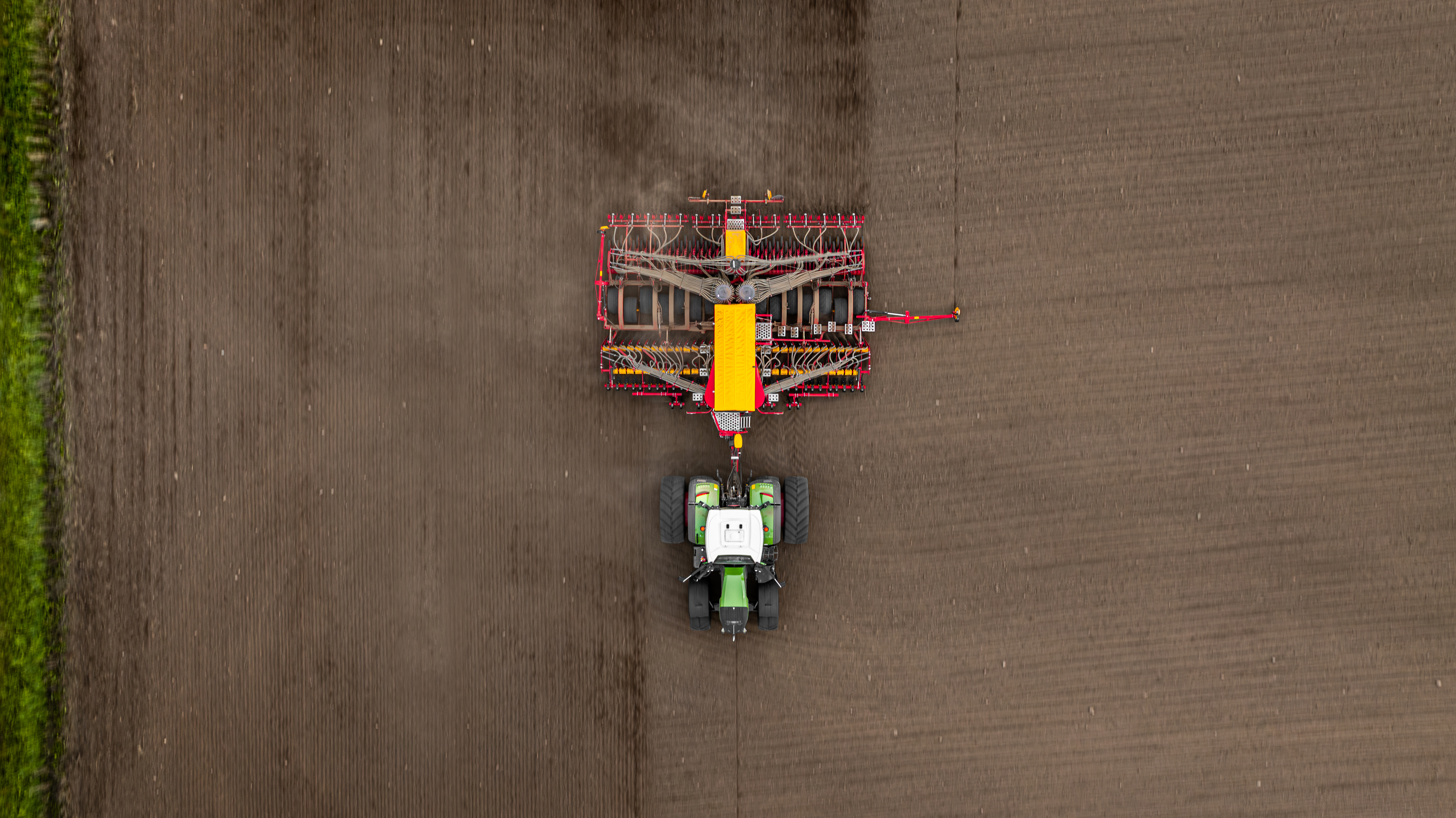

The Väderstad Spirit is a high-capacity seed drill for simultaneous seed and fertiliser application, available in working widths from approximately 4 m to 9 m.

A large 5000 L hopper with a wide opening reduces refill frequency, while high-capacity seed and fertiliser metering systems ensure consistent application.

Designed to complete multiple operations in a single pass, the Spirit performs levelling, seedbed preparation, reconsolidation, seeding and pressing with high precision, even at fast working speeds. Individual row depth control ensures accurate seed placement at the desired depth, delivering uniform emergence across the entire field.

Talk to an Expert

The seed coulter

Perfect seed placement comes down to the details. The Spirit 400-900C coulter design leaves nothing to chance, ensuring that each seed is given the best possible conditions for growth. This helps maximise the potential of every seed in the field.

Learn more

The seed coulter

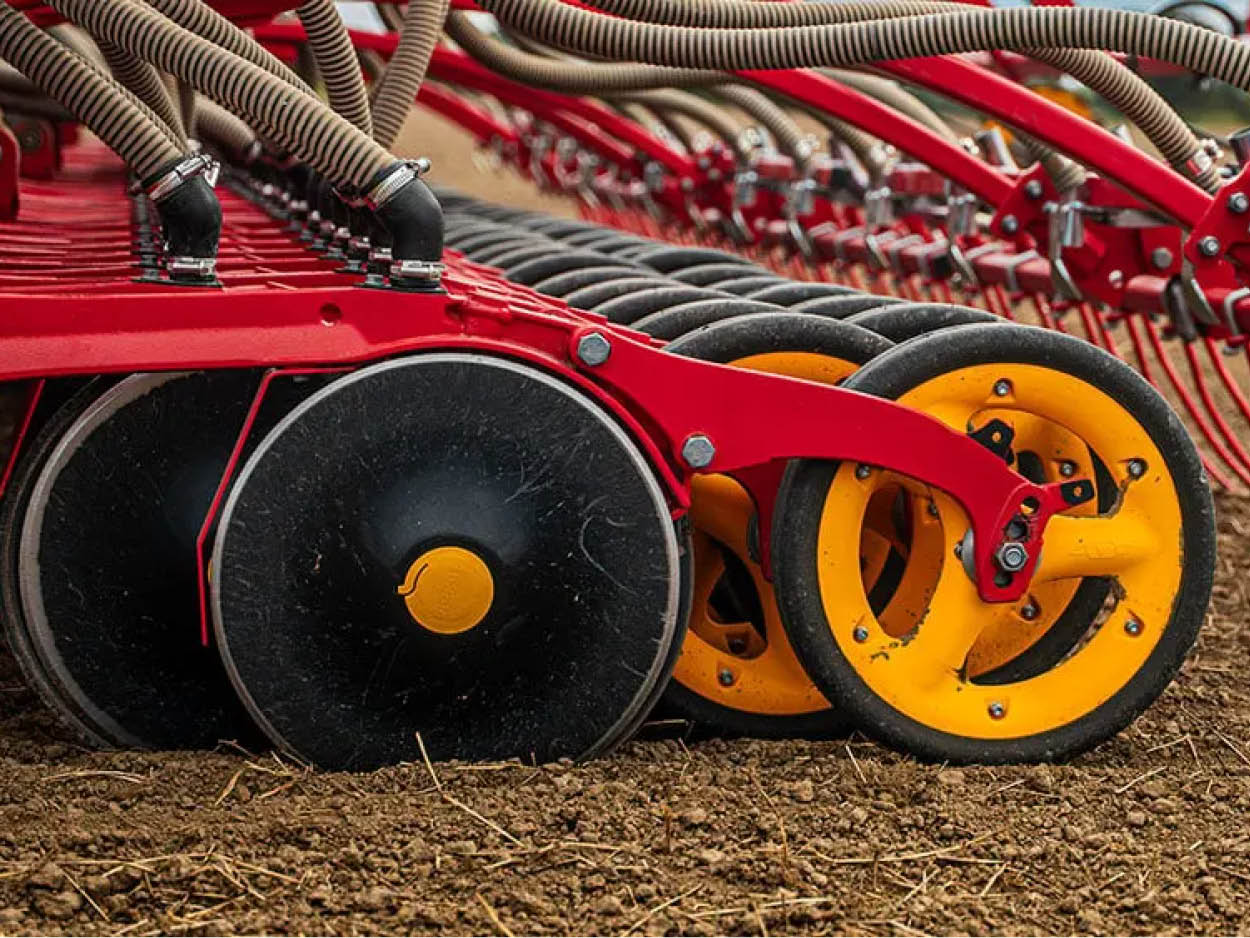

The coulter at a glance

The seed coulter places strong emphasis on the details that influence seeding precision. At its core are the seed discs and press wheel, working in harmony to deliver optimal seed placement and consistent results in the field.

Talk to an Expert

The seed coulter

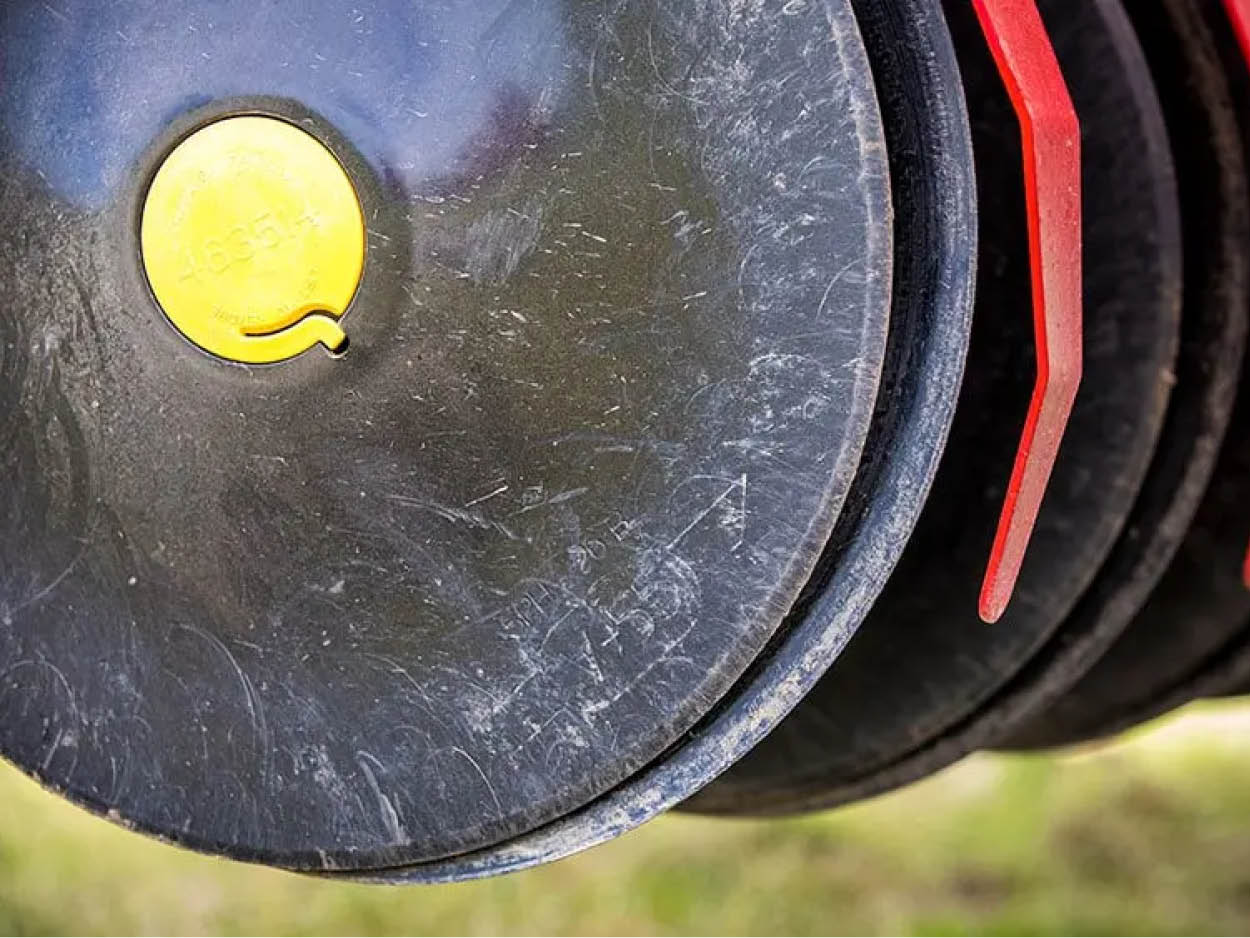

Great depth keeping

The sharp attack angle of the seed discs reduces the pressure needed to create the seed slot at the desired depth. As a result, the seed drill’s ability to maintain consistent depth is significantly enhanced.

Talk to an Expert

The seed coulter

Reduced draught force

The seed discs on Spirit 400-900C are mounted in an offset position, reducing the draught force needed to open the seed slot. This clever design helps the discs maintain their position over time, improving precision and reducing maintenance requirements.

Talk to an Expert

The seed coulter

Precise seed delivery

Seeds are released just ahead of the centre of the seed disc. As the disc rotates, it helps place each seed at the bottom of the seed slot, giving it immediate access to moisture and supporting strong early growth.

Talk to an Expert

The seed coulter

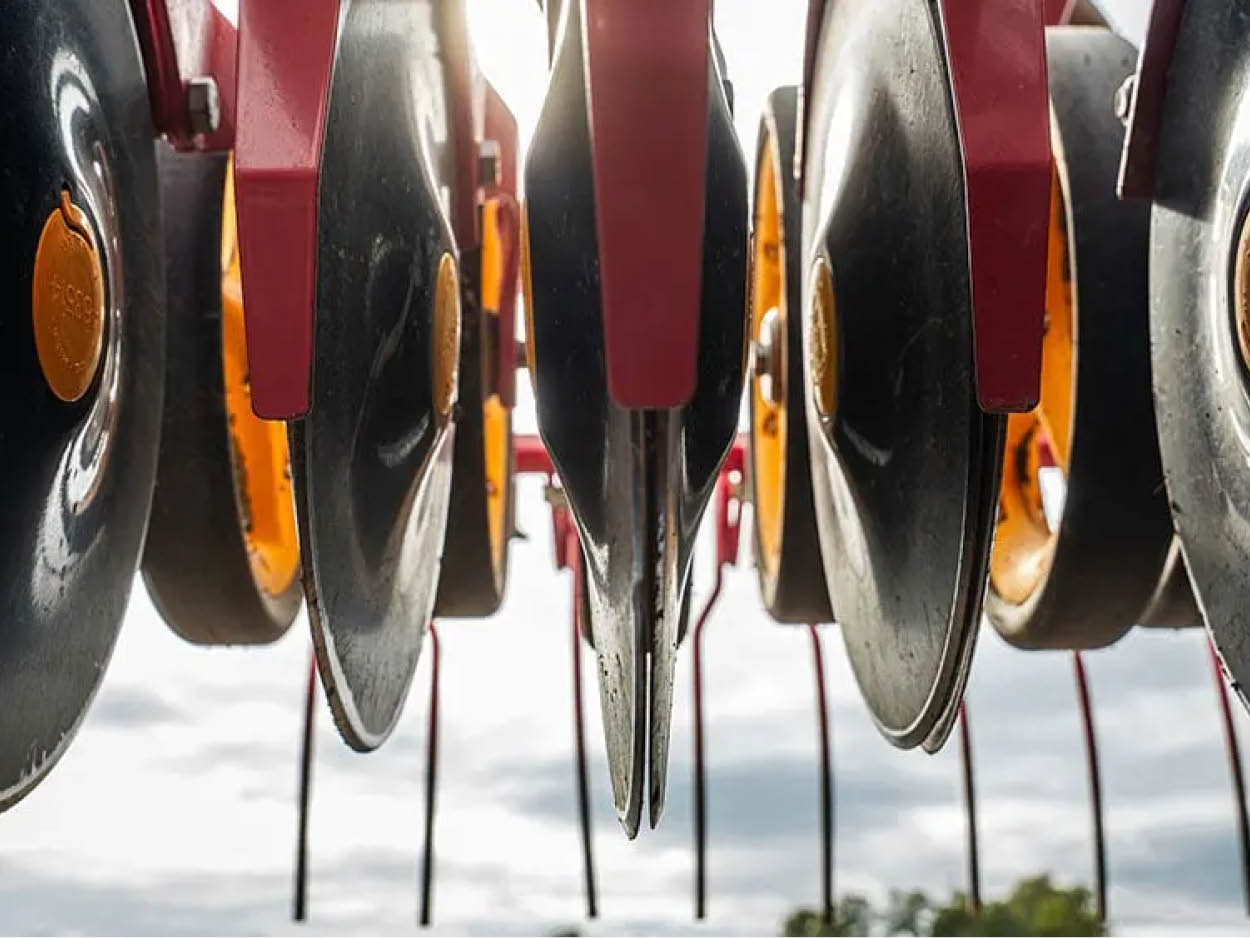

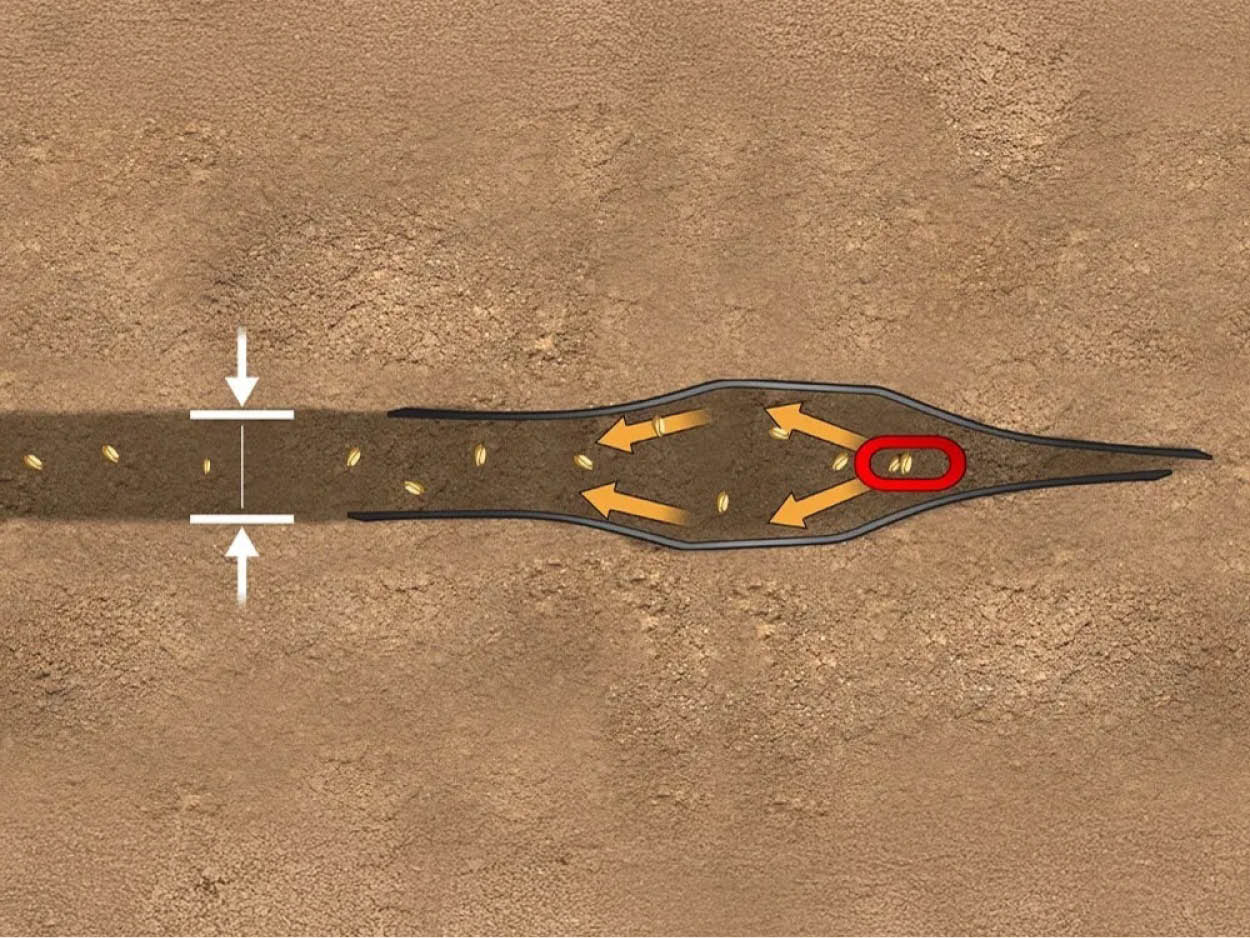

Minimal soil disturbance

The shape of the disc, combined with its offset mounting, creates a narrow seed slot with minimal soil disturbance. This improves seed distribution within the row and makes it easier to close the slot effectively.

Talk to an Expert

The seed coulter

Higher throughflow

The narrow seed coulter is made possible by Spirit 400-900C´s seed disc design. This allows more material to pass through the machine, improving performance when drilling in crop residues and challenging field conditions.

Talk to an Expert

The seed coulter

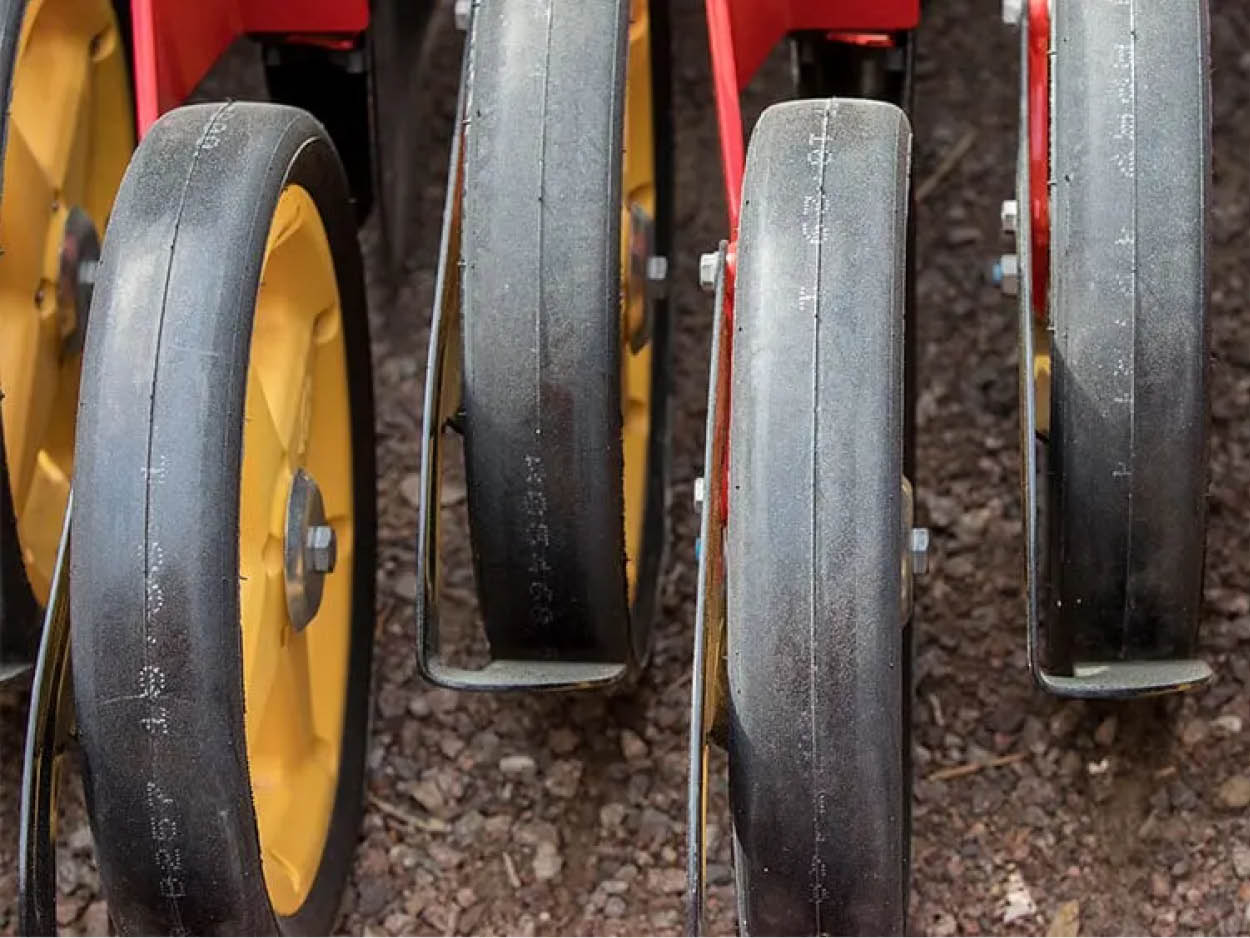

Versatile press wheel

The wide coulter press wheel enhances Spirit 400-900C´s ability to stay on top of the field surface, regardless of soil conditions. Its soft tyre profile increases the contact area with the soil, improving slot closure and broadening the range of working environments.

Talk to an Expert

The seed coulter

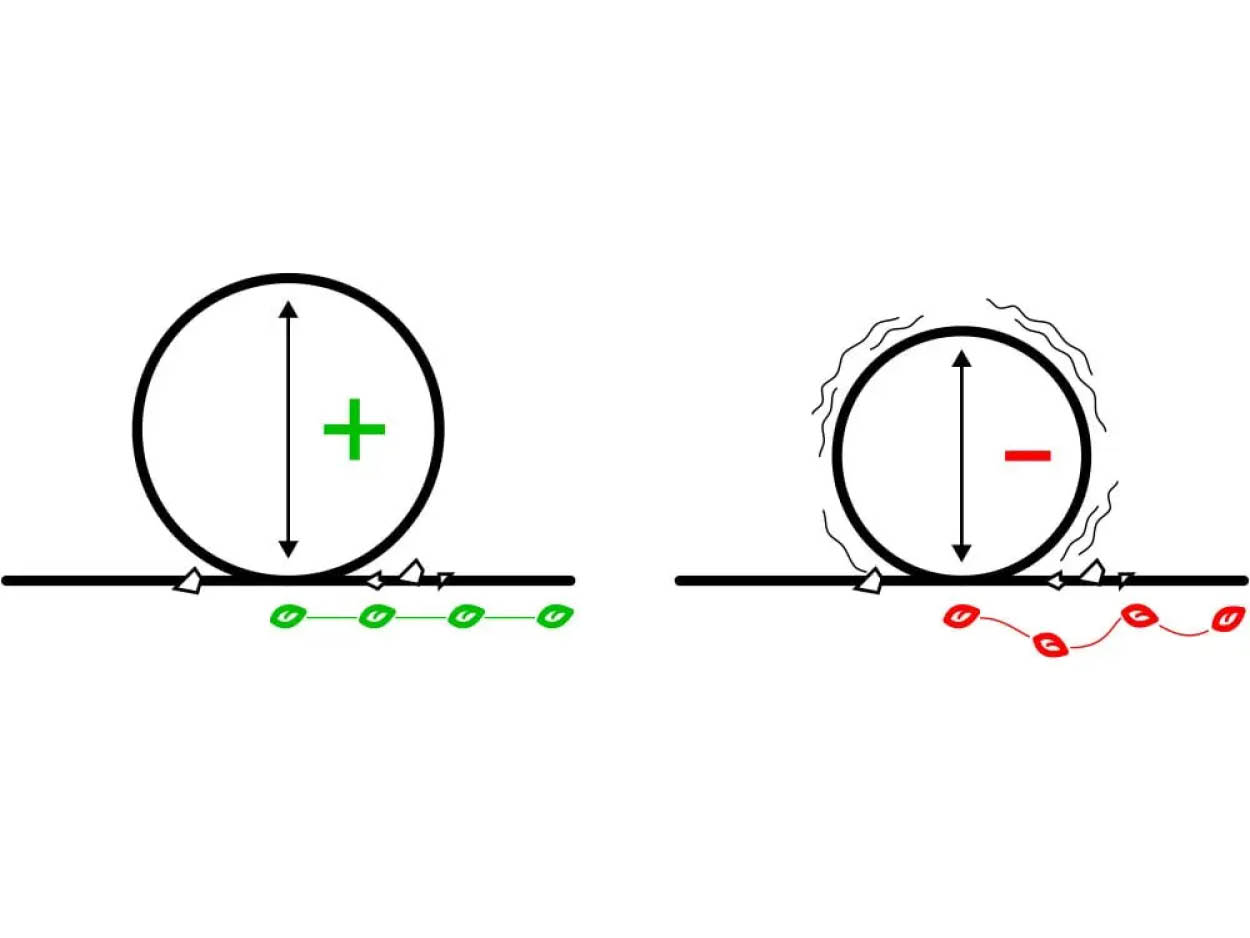

Size minimises vibrations

The generous diameter of the seed discs and coulter press wheels ensures a smooth ride with minimal vibration. This stability enhances depth control and contributes to consistent seed placement, even at higher working speeds.

Talk to an Expert

The seed coulter

Clean wheel maintains seed depth

The tyre, combined with rear-mounted scrapers, keeps the wheel clean by preventing soil from sticking. This helps maintain consistent seed depth, avoiding any variation that could affect crop emergence.

Talk to an Expert

Features

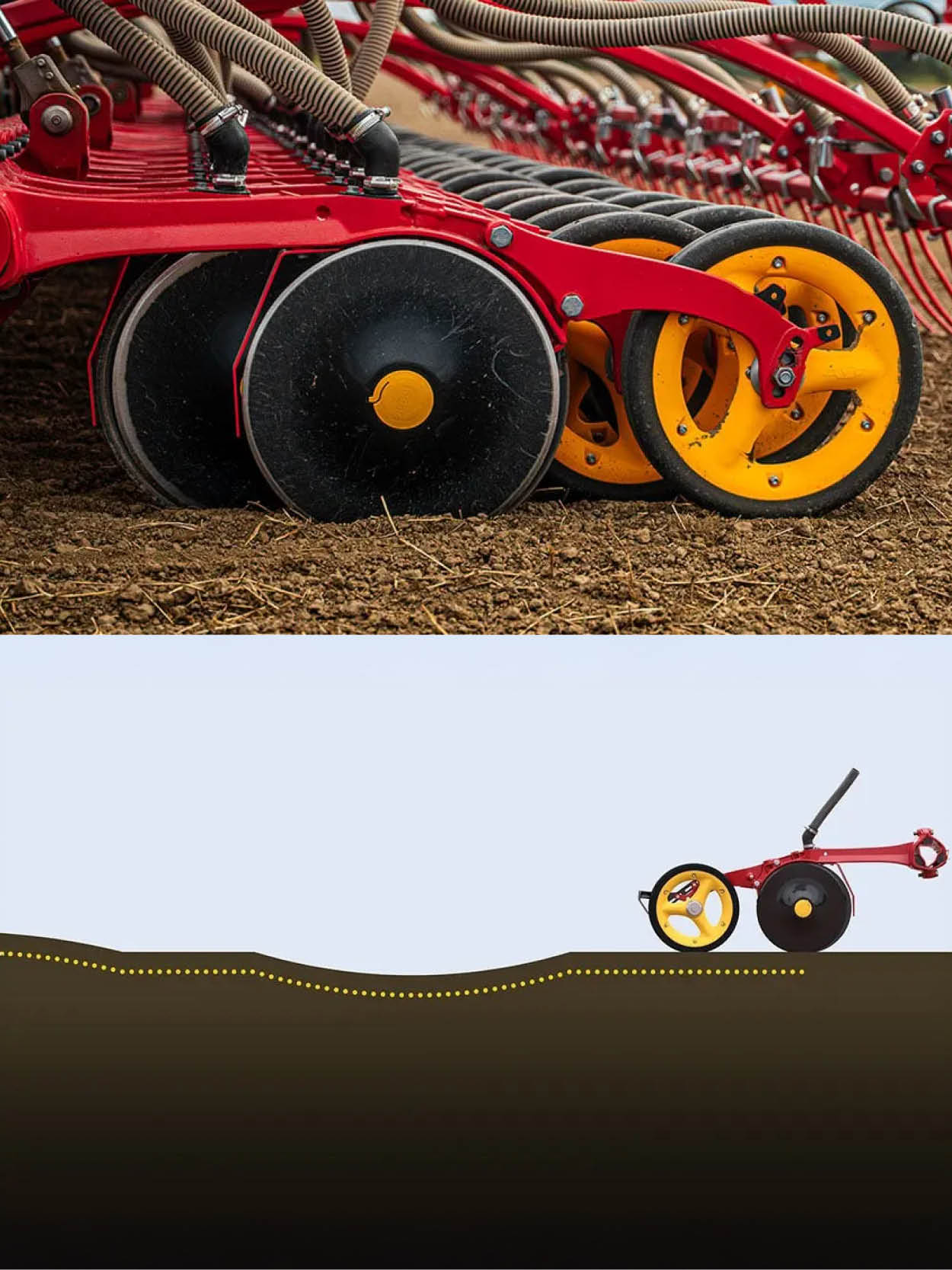

TriForce II® seed coulter suspension

The TriForce II® seed coulter suspension delivers high precision by maintaining consistent coulter pressure across uneven terrain. Its unique design allows the coulter to keep the set pressure even when moving over field irregularities. This results in more consistent seed depth, improving germination and ensuring uniform crop emergence.

With up to 120 kg of coulter pressure, TriForce II® offers an extended operating range. It performs effectively in light to medium soil conditions while maintaining seeding accuracy.

Each coulter maintains its pressure even when the arm moves up or down with ground contours. The result is uniform seed placement, consistent crop development, and improved yield potential.

Talk to an Expert

Features

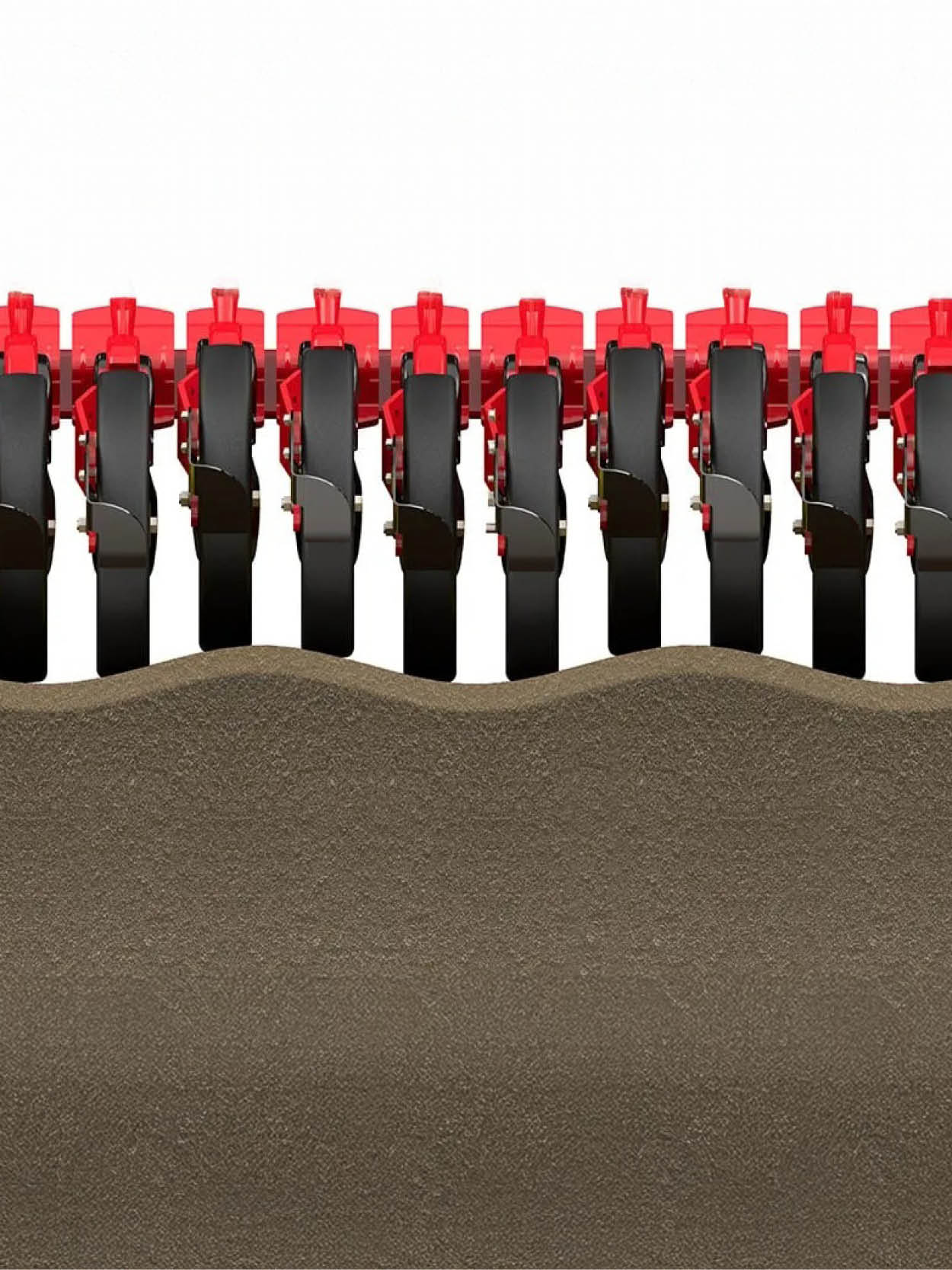

Adapts to the field

Correct seed depth is critical for timely emergence and strong crop establishment. On the Spirit 400-900C, every part of the seed coulter system is designed to deliver precise and consistent seed placement.

Each coulter is mounted on its own arm, allowing it to react independently to uneven ground. This ensures consistent working depth across the full working width.

Coulter pressure can be adjusted from the cab while working to match changing soil conditions. The wide press wheel maintains good soil contact and reduces the need for frequent adjustments.

Active coulter pressure automatically adapts on hilly terrain, ensuring accurate seed placement on both crests and troughs.

Talk to an Expert

Features

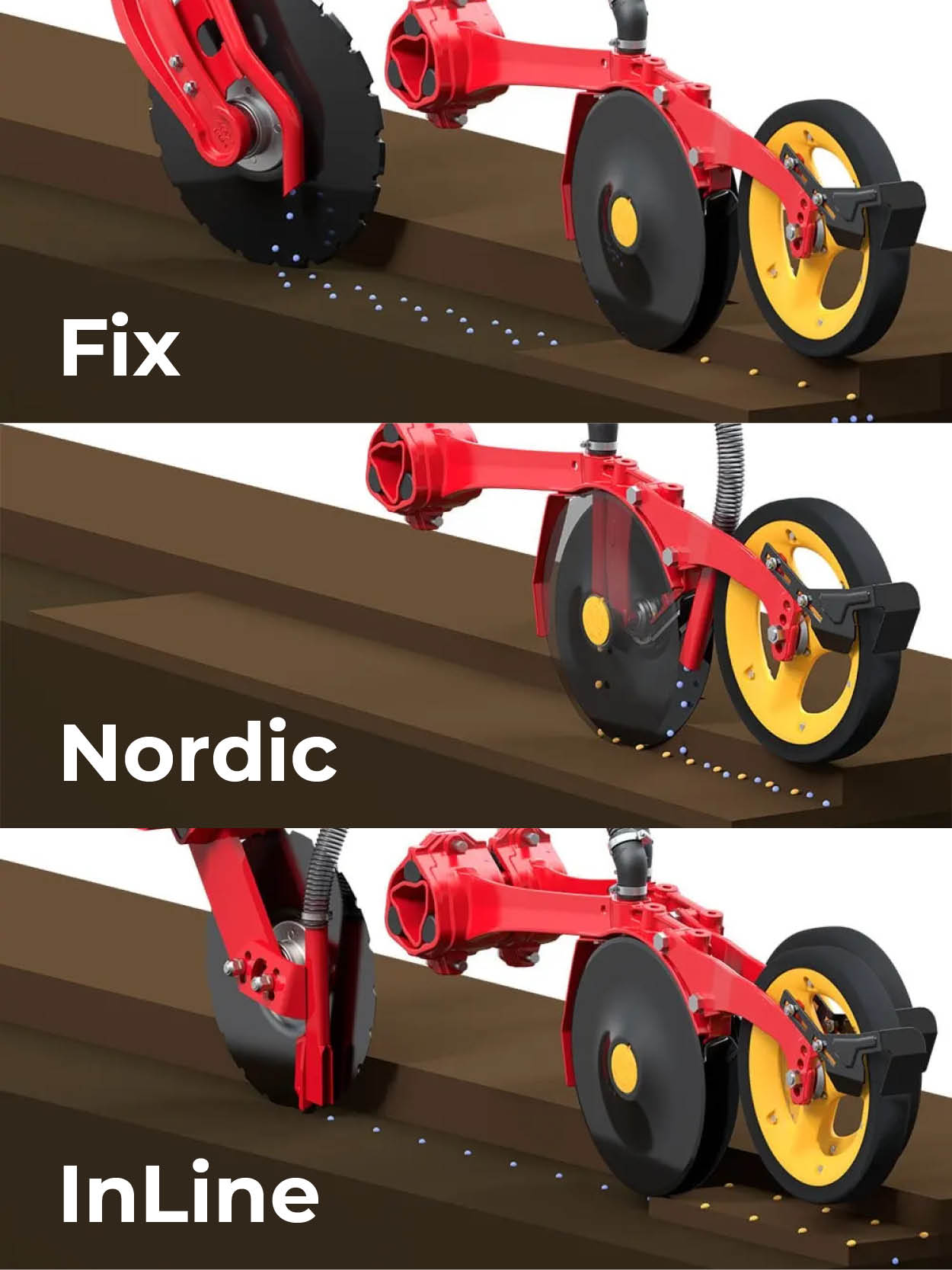

Three fertilising methods

Placing fertiliser during drilling ensures fast, reliable nutrient uptake, reduces dependence on rainfall, and improves yields. The Spirit 400-900C combi-version offers three fertilising methods: FIX, Nordic, and InLine.

FIX places fertiliser in 5 cm strips at 125 mm row spacing in front of every seed row, with depth adjustable from the cab. Available in 4, 6, 8, and 9 m widths.

Nordic uses aggressive disc coulters to place fertiliser between seed rows at 250 mm spacing, ideal for conventional tillage in dry conditions. Also available in 4, 6, 8, and 9 m widths.

InLine delivers fertiliser together with the seed for quick uptake, with separate transport ensuring high accuracy. Available on 4 and 6 m Spirit 400-600C.

Talk to an Expert

Features

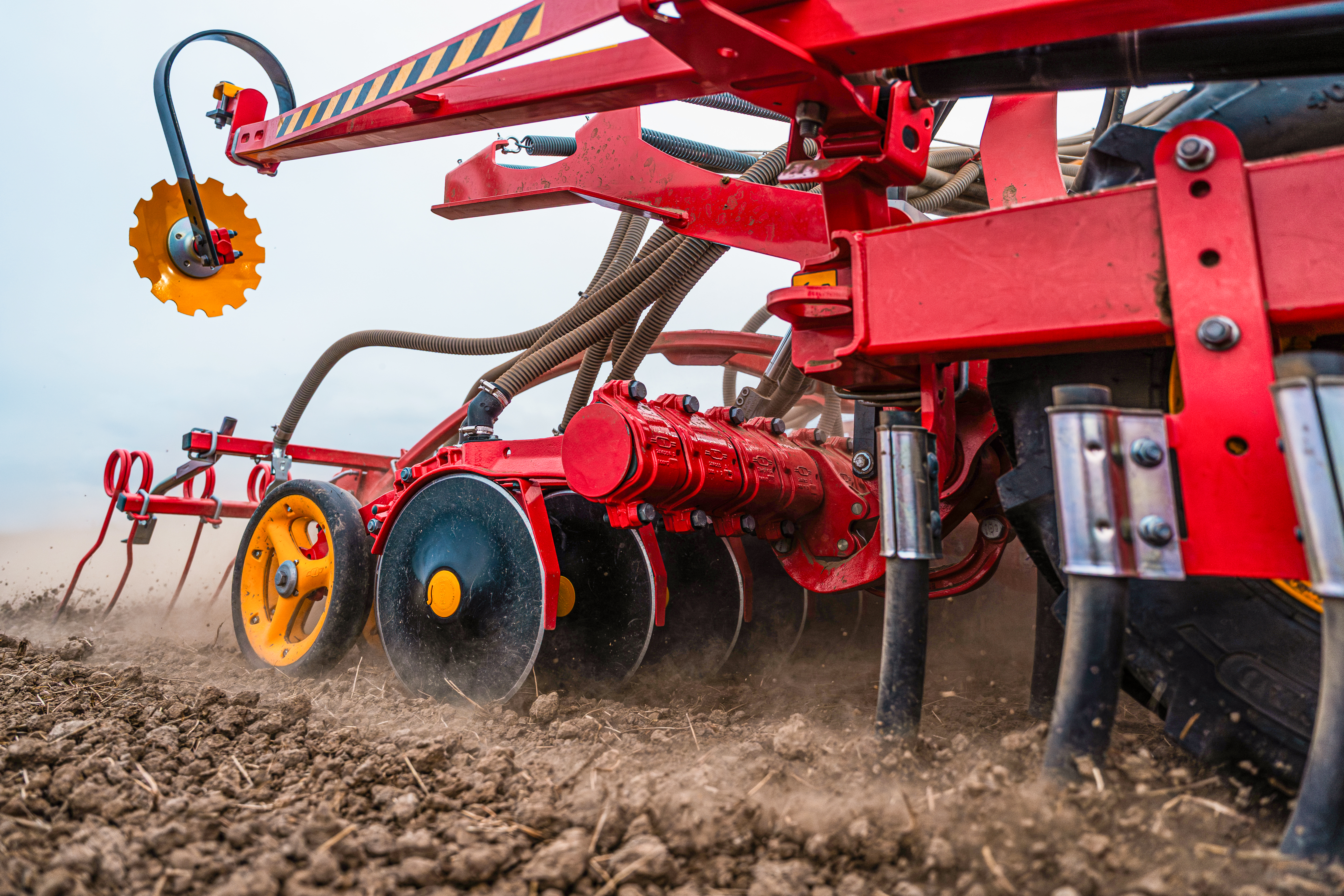

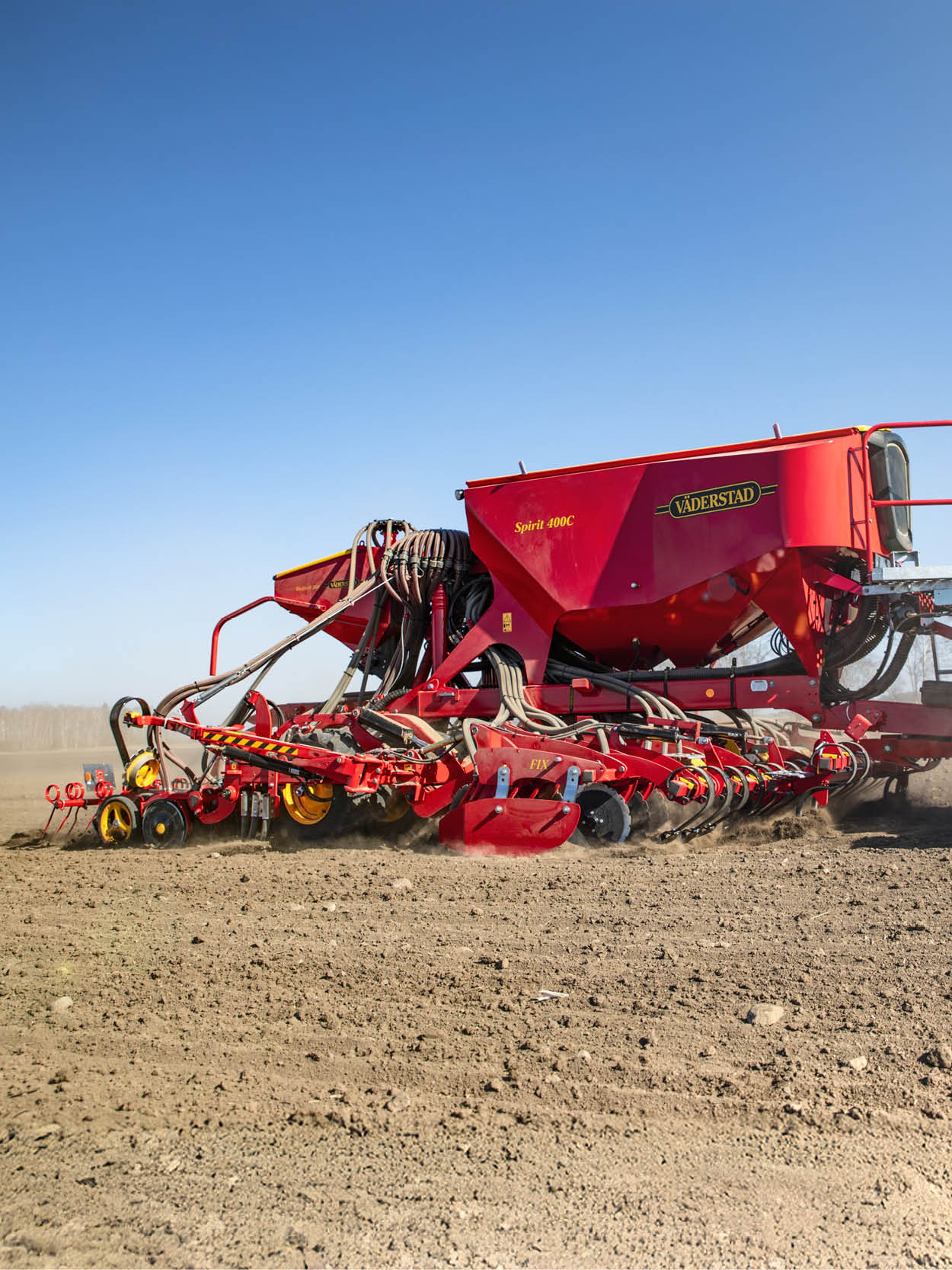

Full-scale seedbed preparation

Spirit 400-900C is equipped with powerful front tools that can be adjusted from the cab while working. For additional levelling, an individually adjustable CrossBoard can be mounted ahead of the disc tool, ensuring a well-prepared seedbed tailored to field conditions. To ensure a firm seedbed before seed placement, large packer wheels consolidate the soil between the front tool and the seed coulters. This provides significant advantages in lighter soils, as well as in fields where the soil is loose due to deep cultivation or insufficient reconsolidation.

Talk to an Expert

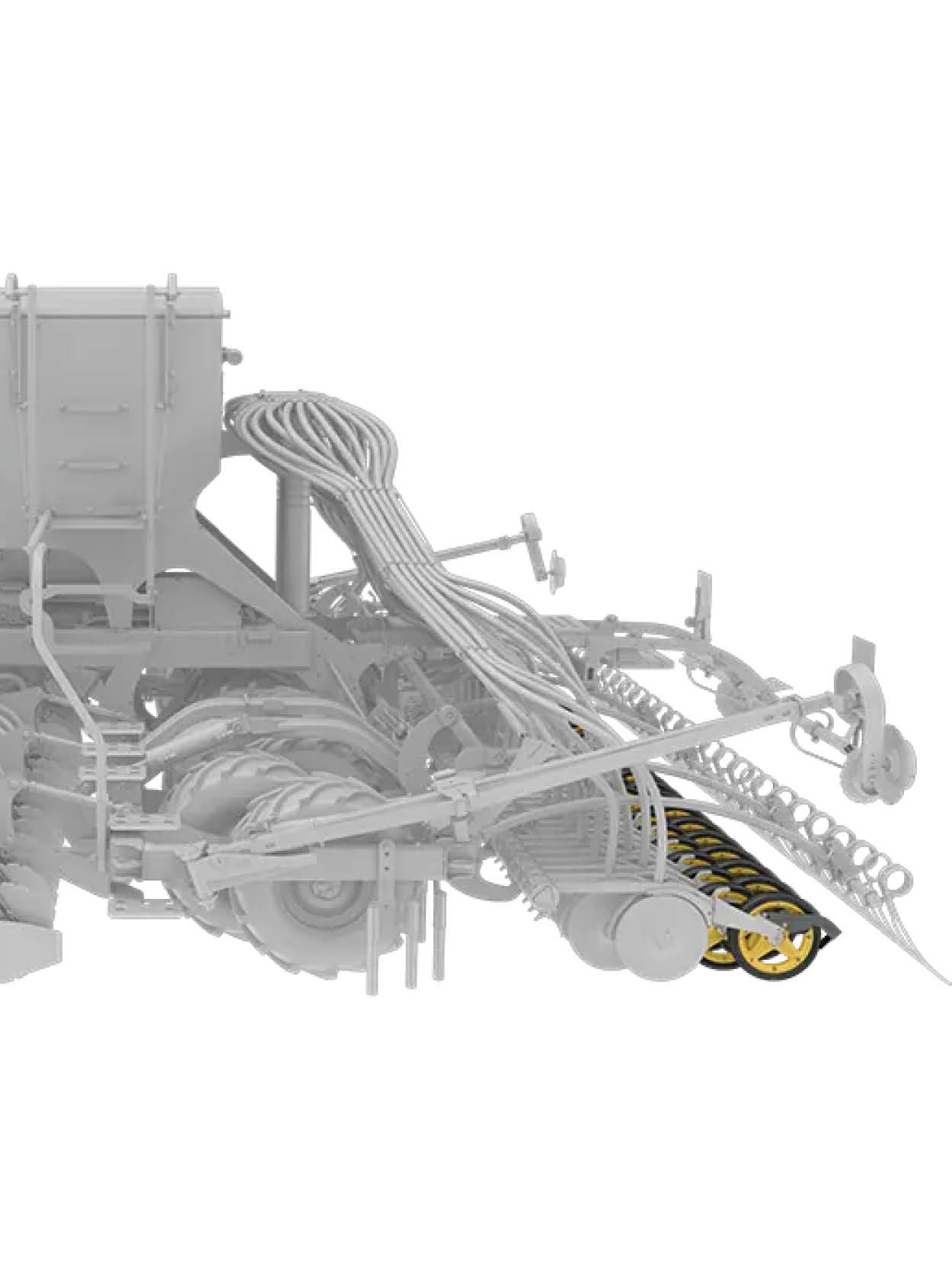

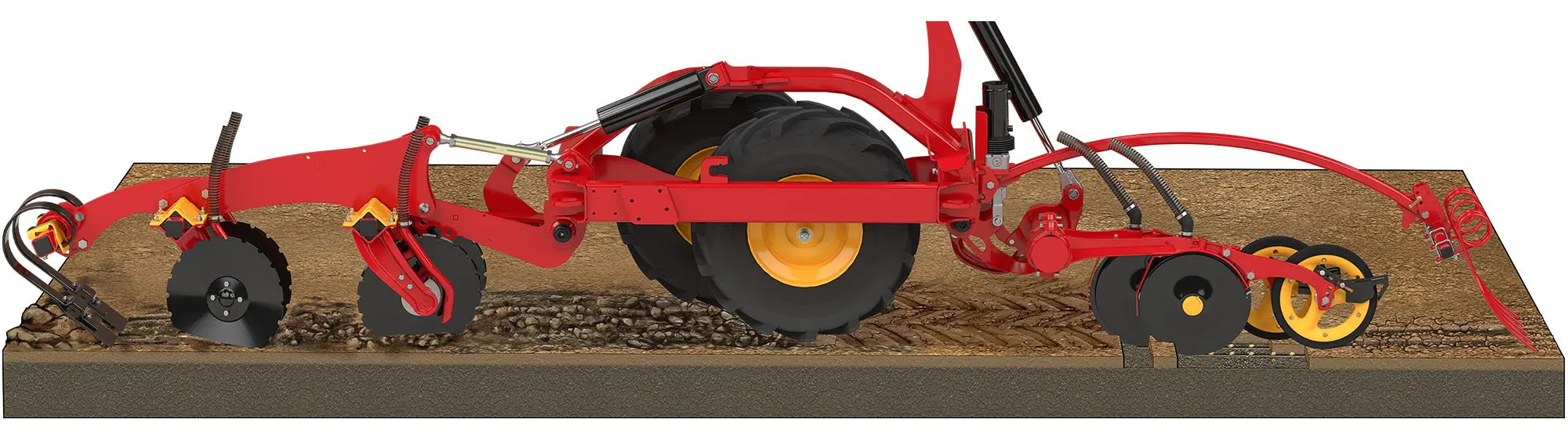

Product concept

Zone 1 - Seedbed preparation

The Spirit 400-900C adapts to different farming needs with front tools for fertiliser placement, all with cab-adjustable working depth.

FIX places fertiliser in 5 cm strips at 125 mm row spacing in front of each seed row and can be combined with or without a CrossBoard Heavy.

Nordic uses aggressive disc coulters to place fertiliser between seed rows at 250 mm spacing, ideal for conventional tillage in dry conditions.

Front tools include track eradicators for deep tire marks, CrossBoard Heavy for clod crushing and field levelling, System Disc Aggressive for min-till, and the combined CrossBoard Heavy System Disc Aggressive for intensive soil mixing in tough conditions.

Talk to an Expert

Product concept

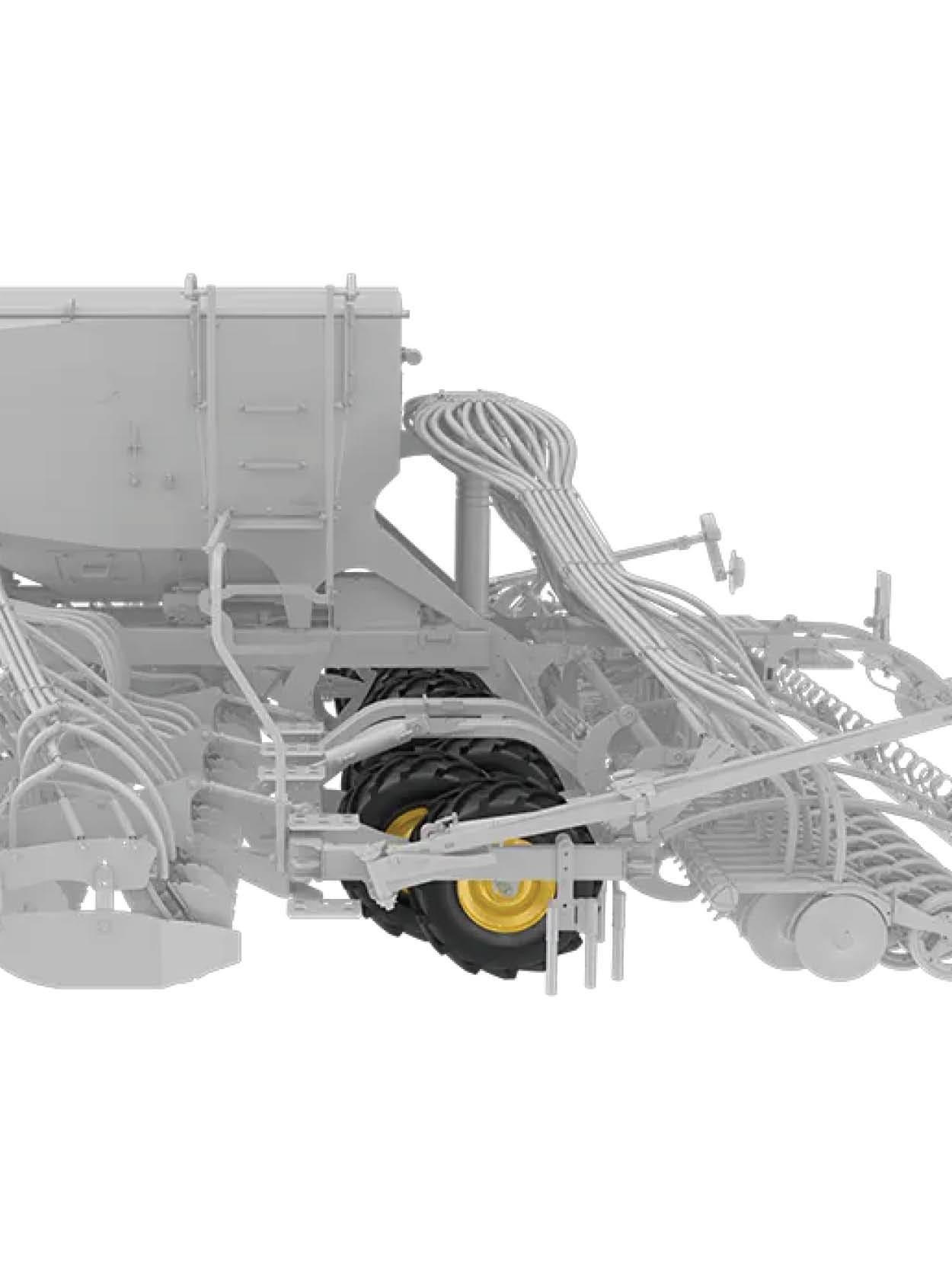

Zone 2 - Consolidation

To ensure a firm seedbed prior to seed placement, large packer wheels consolidates the soil between the front tool and seed coulters. This offers great advantages in lighter soil, as well as in fields where the soil is loose as an effect of a deep cultivation or a cultivation with insufficient reconsolidation.

Talk to an Expert

Product concept

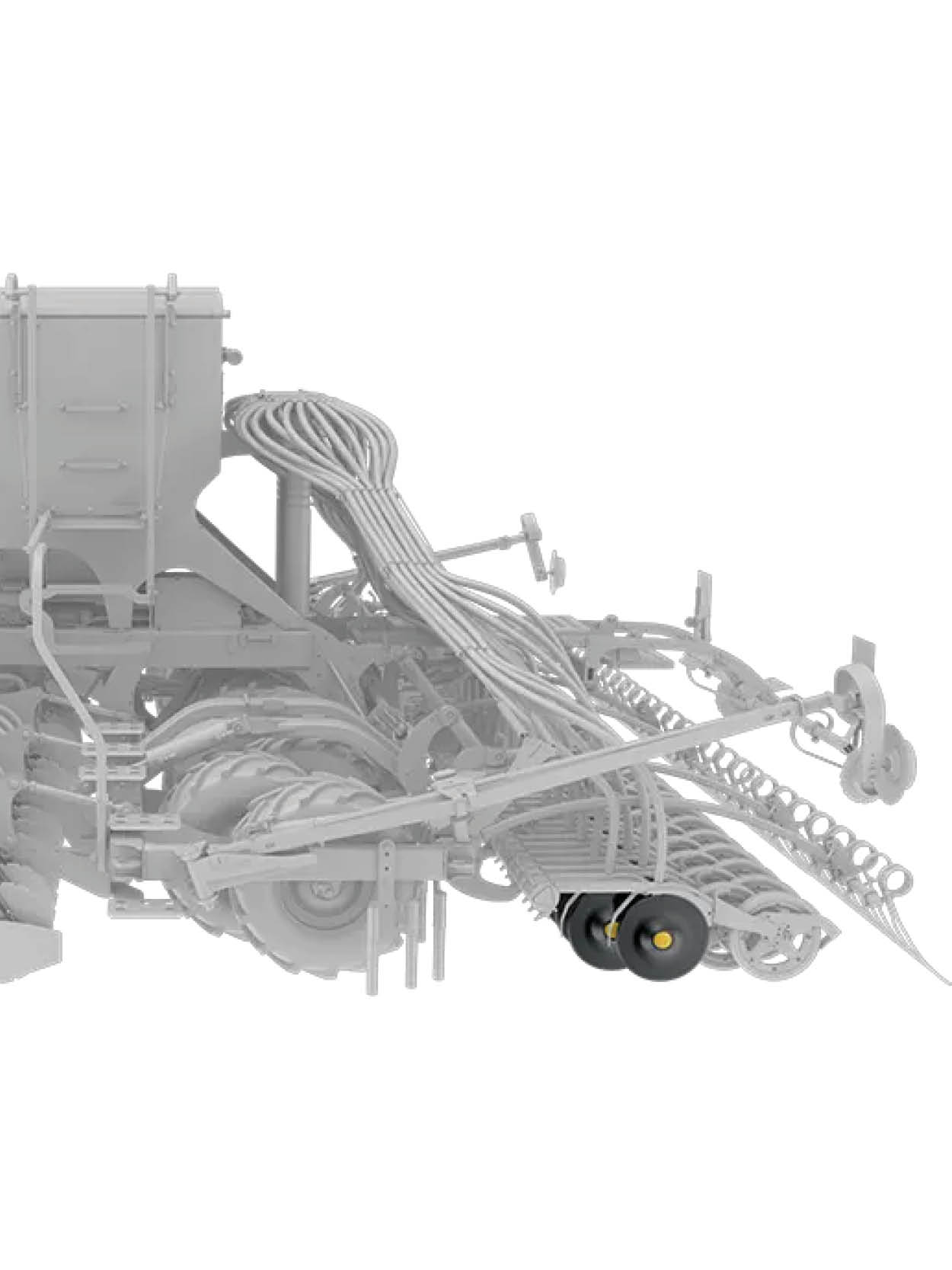

Zone 3 - Seed placement

Spirit has 380mm large discs for high speed accuracy. The OffSet discs move the soil to the side and place the seed in the bottom of the seed furrow. The soil falls back behind the discs and covers the seed with fine soil. The seed coulter pressure is up to 120kg to ensure a good penetration. The unique TriForce II® rubber suspension gives a supreme ability to follow ground contour.

Talk to an Expert

Product concept

Zone 4 - Reconsolidation

Each individual seed coulter has a wide coulter press wheel. This allows the seed coulters to respond to any irregularities or soil variations on the field, thereby ensuring the working depth is constantly maintained. The generous diameter of the coulter press wheel, further results in a smooth ride with minimal impacts from vibrations, thereby increasing precision at high speed.

Talk to an Expert

Product concept

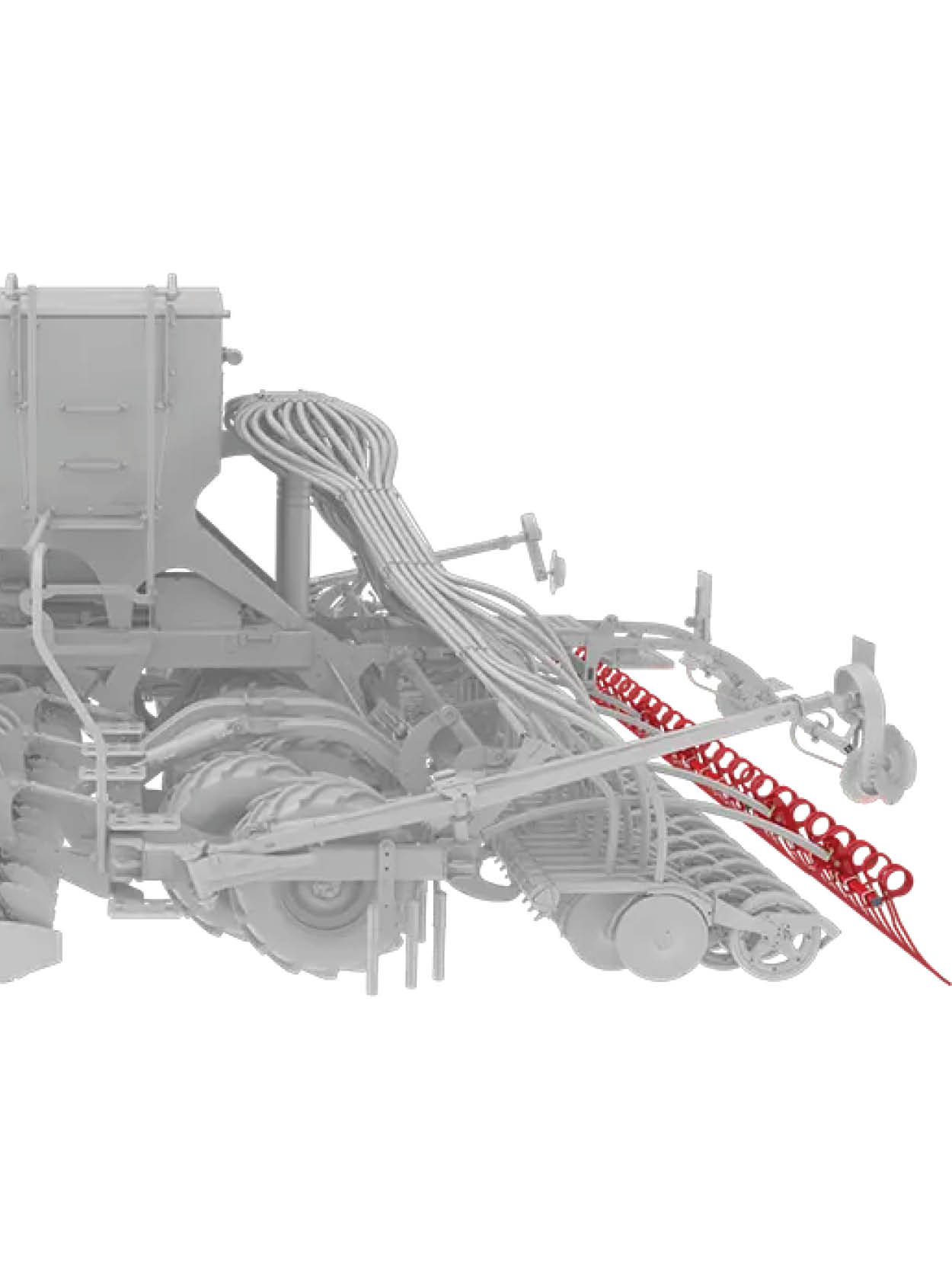

Zone 5 - Finishing

The following harrow runs between seed rows, avoiding disturbance of shallow-drilled seeds. It creates a loose surface layer that preserves moisture and prevents capping after heavy rain.

The harrow also finishes the seedbed by moving larger aggregates to the surface while keeping fine soil in the seed zone.

The Following Harrow Heavy features hydraulic pressure adjustment on the go, with the option for higher preset pressure on headlands.

It is also available as the Following Harrow Marathon, providing the same benefits of precise seedbed finishing, moisture preservation, and improved conditions for germination across varying soil types.

Talk to an Expert

Brochure

Specifications

Compare specifications below, to find out what will best suit your operations

Models	400C	600C	800C	900C
Min. HP Requirement	125 - 140 HP	170 - 200 HP	220 - 270 HP	240 - 290 HP
Hydraulic Requirements	4 DA + FR
Hopper Capacity	5000L
Weight	5300 kg	7300 - 7600 kg	9140 - 10160 kg	10860 - 10900 kg
Working Width	4 m	6 m	8 m	9 m
Transport Width	3 m
Working Speed (km/h)	8 - 14
No. of seed coulters	32	36 - 48	64	72
No. of fert coulters	16 - 32	24 - 48	32 - 64	36-72
Row spacing (mm)	125 - 250
