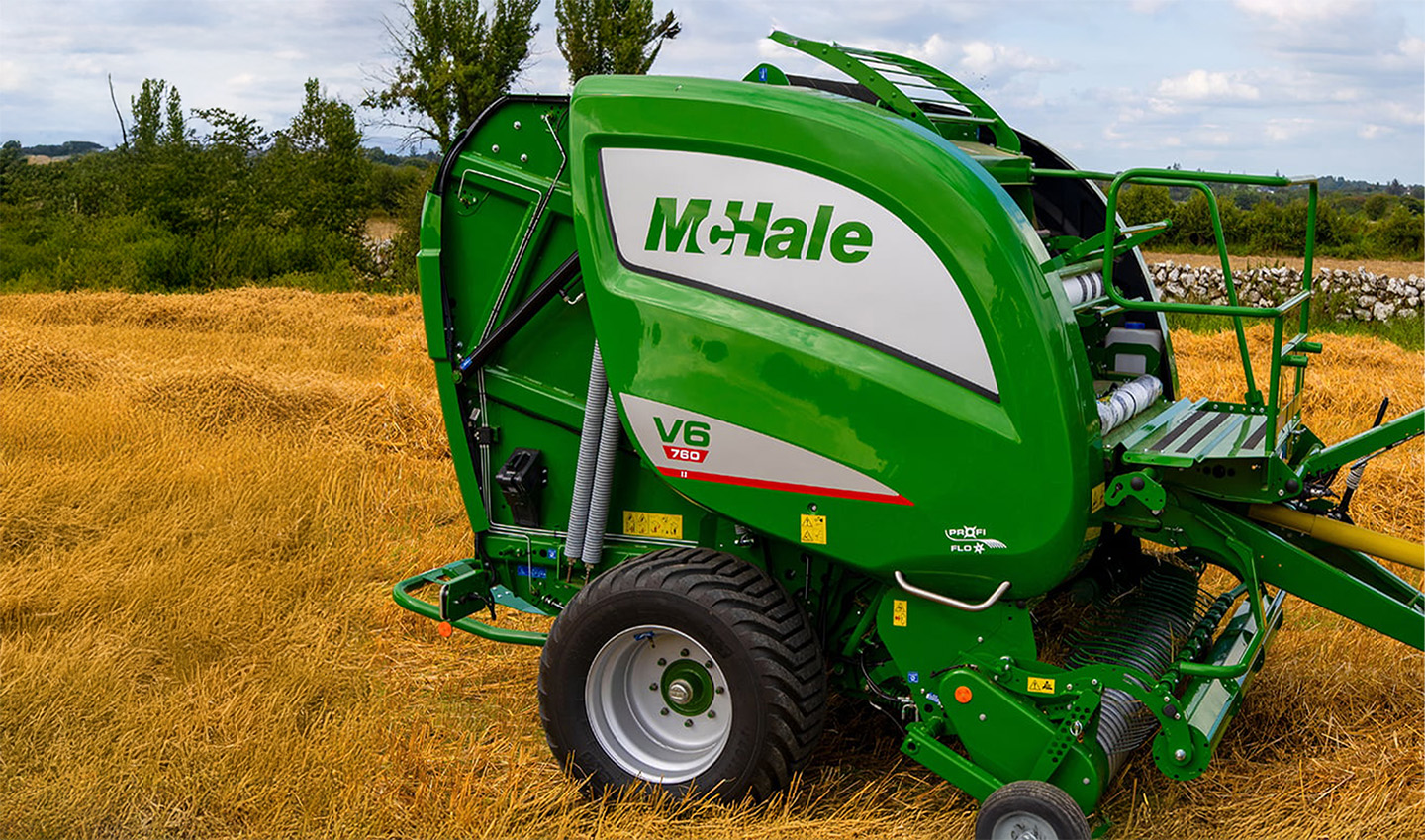

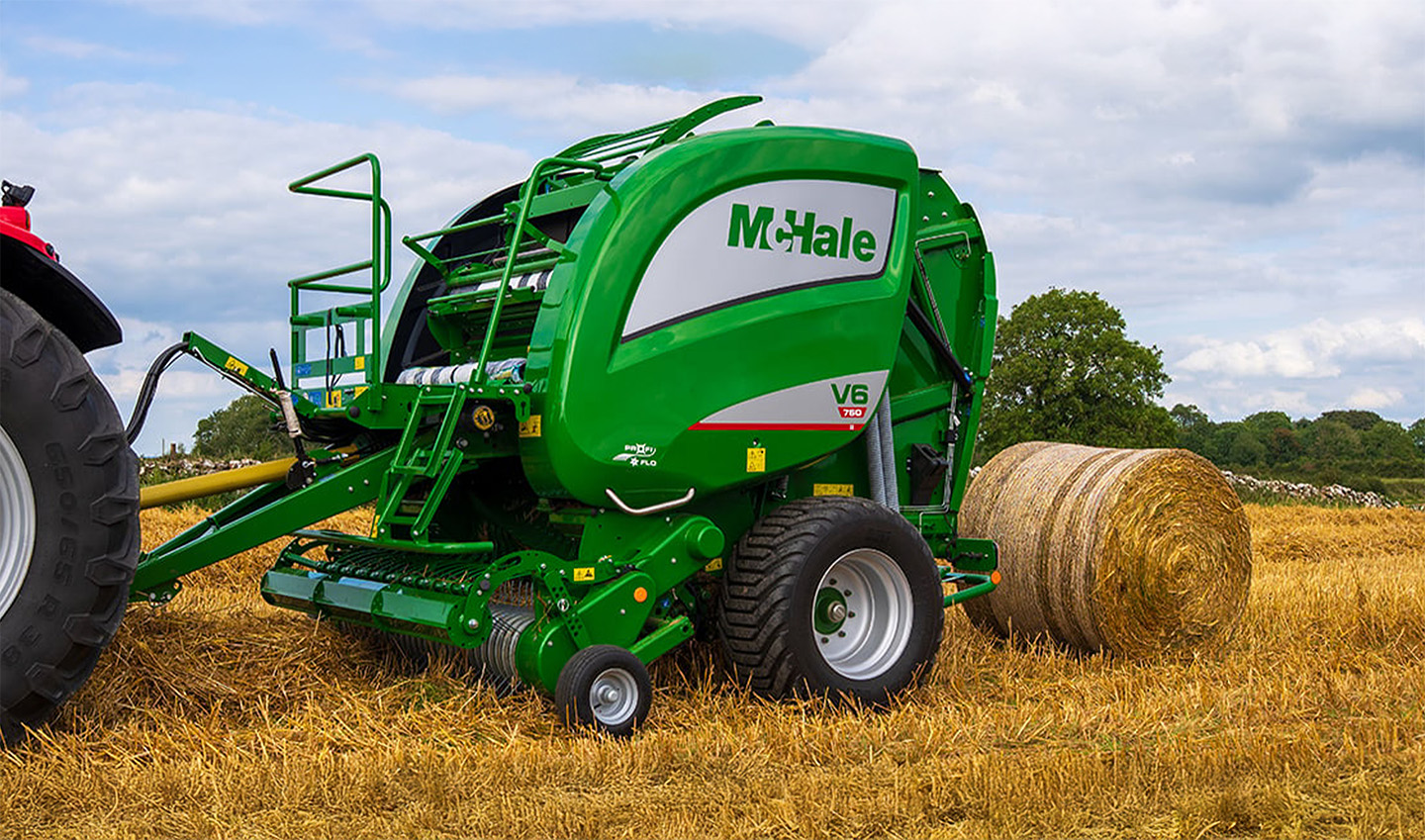

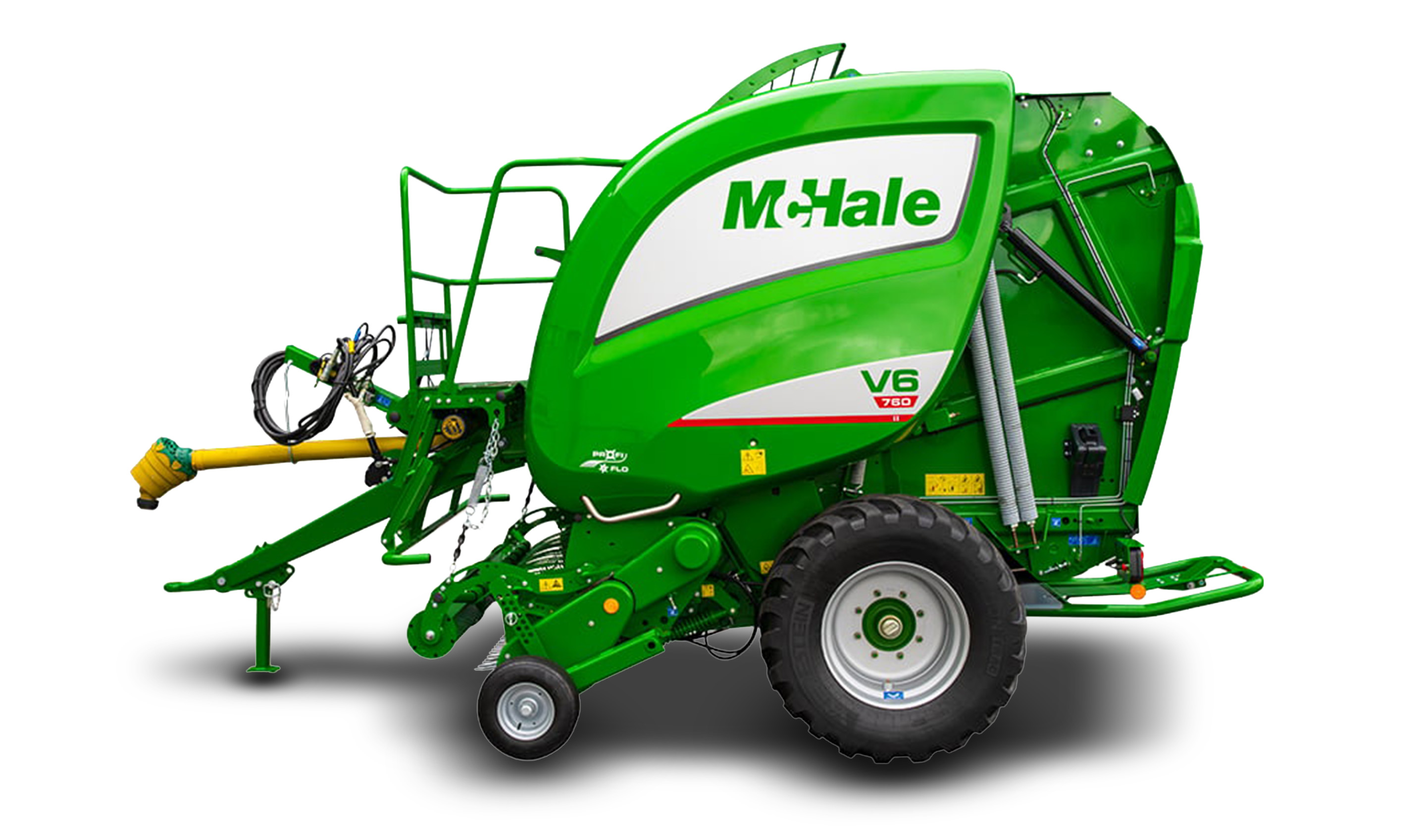

McHale V6760
The McHale V6760-II is a fully automatic machine fitted with a 15-knife chopper unit and heavy-duty rotor.
As the highest spec machine in the range, it is ISOBUS compatible with the option of using McHale’s ISO-Play terminals, to allow the operator to experience the highest level of customisation and machine performance.
Pick-up Options
McHale have developed various types of pick-ups. After extensive testing, McHale decided it would offer customers the choice of 2 pick-up options depending on their conditions:
Cam Pick-Up – Optional indent order only
As standard, a cam operated 2.1 m high-intake galvanised pick-up ensures excellent ground cleaning in all types of crop. The cam pick-up runs on a cam track that is fitted with double raced cam bearings to stand up to the most testing of conditions.
All pick-ups across the McHale variable chamber baler range are fitted with 5 tine bars for excellent delivery of crop to the bale chamber. The 2.1 metre galvanised pick-up will lift even the shortest of crop. A side inspection port allows the operator to quickly check and change the cam bearings.
Camless Pick-Up
A 2.1 m camless pick-up is available as an option on all machines in the variable chamber baler range. Six tine bars are fitted to all McHale camless pick-ups to provide excellent ground cleaning and fast delivery of crop to the chamber. The new camless pick-up has been designed for increased output, with that in mind the cam-track free pick-up is more reliable, consists of less moving parts and is maintenance free.
All McHale pick-ups come with a number of standard features that include:
Heavy Duty Pick-up
All McHale pick-ups feature heavy-duty tine bar supports to ensure long service life. A vital part of the pick-up is the tine, McHale have developed a pick-up tine designed to lift even the shortest of crop.
Efficient Crop Flow Delivery
The specially designed McHale pick-up is positioned close to the rotor to improve delivery of the crop through the rotor to the bale chamber. Large diameter lateral feed augers help direct crop to the bale chamber ensuring a consistent and even crop flow for producing high density bales.
Adaptive Intake
Over the course of a baling season, machines have to work with different volumes of crop. McHale have designed an adaptive intake which allows the intake area to automatically adjust for light and heavy crops. This avoids peak loads and results in higher daily throughput regardless of working conditions.
Profi-Flo Pick-up
McHale have created their highest output pick-up for the V6760. The new Profi-Flo pick-up has been designed to increase crop intake through more efficient crop flow and has been engineered to ensure end users are operating with a high-performance pick-up that is designed to suit various working conditions.
Rotor
The V6760 is fitted with a 15 Knife Chopper Rotor
The feed rotor or chopping unit boasts a heavy-duty rotor and comb. The flights are welded on both sides for superior strength and on the drive side the rotor is fitted with a double row bearing with a long service life. The star shaped feed rotors ensure a high capacity flow of grass into the bale chamber. The flights on the rotors are laid out in a spiral formation to achieve consistent crop flow. As crop enters the rotor, rotating flights feed the crop to the bale chamber. The flights on the rotor ensure high output, while the star layout reduces the load peaks as the machines work in heavy swaths.
Gear Box
A Split Drive Gearbox is fitted to all machines in the McHale variable chamber baler range. The gearbox design ensures that power is evenly distributed to both sides of the baler. The belt(s) in the bale chamber are driven from the left hand side of the machine, and the pickup and chopper unit are driven from the right hand side of the machine. This system ensures direct, short transfer paths, leading to optimal power distribution
Drop Floor
As baling conditions are not always ideal, uneven swaths can occur which can lead to blockages. The McHale variable chamber baler range is fitted with a drop floor unblocking system, which means blockages can be fed through in three simple steps.
Drop the Floor
Should a blockage occur, the sound of the slip clutch alerts the operator, who can hydraulically lower the floor from the tractor cab.
Re-engage the PTO
This widens the feed channel and on re-engaging the PTO, the blockage can be fed through.
Reset the Floor
The floor can then be reset to its original position and baling can resume.
Control Console
The McHale V6750 is fitted with an Expert Plus control console, which has a large graphic display. The Expert Plus console, also gives the operator the choice of selecting a soft or hard bale core, depending on the customers feed out requirements. The control console can also store ten bale count totals so the operator can record ten different counts that may be associated with different fields or different customers.
From the control console in the tractor cab the operator can adjust the following:
Core Size & Bale Size
Core Density & Bale Density
Revolutions of Net Being Applied
Lubrication

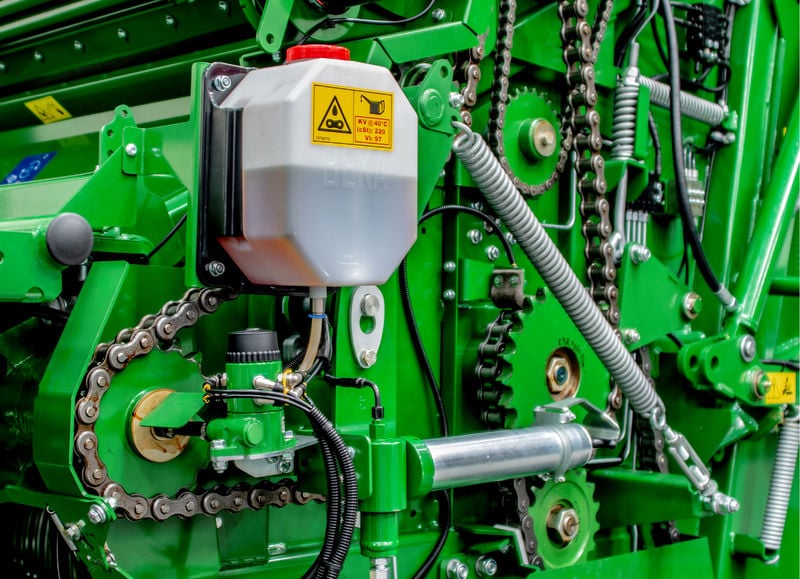

A pressurised system delivers a measured amount of grease around the baler every time a bale is ejected from the bale chamber. Automatic greasing saves time as it reduces the amount of manual greasing to be done by the operator. A lube alarm sounds after 300 bales to inform the operator to refill the grease
Specifications
Compare specifications below, to find out what will be suit your operations
| Models | V6750 | V6760 | V8950 |
|---|---|---|---|
| Min. HP Requirement | 80 | ||
| Weight | 4540 kg | 4580kg | 4850kg |
| Length | 5.1 m | ||
| Height | 2.75 m | 3.12 m | |
| Width | 2.54 m | ||
| Working Width | 2.1 m | ||
| Knives | 15 | ||
| Bale Diameter | 0.6 - 1.68 m | 0.6 to 1.9m | |
| Bale Chamber Width | 1.23 m | ||
| Bale Chamber Feed | 15 Knife Chopper Feed Rotor | ||
| Number of Belts | 3 | ||
| Binding Material | Net | ||
| Theor. Chop Length | 65 mm | ||
| Unblocking System | Drop Floor | Automatic Drop Floor* | Drop Floor |
| Knife Activation | Electronic Control | ||
| Knife Protection | Hydraulic | ||
