McHale Orbital
The McHale Orbital is a high-speed round bale wrapper which delivers an even and consistent overlap and achieves optimum levels of fodder preservation and quality.
3 Models
991 High Speed
998 High Speed
McHale Orbital
Fully Automatic Operation
Wrap Bales from 1m – 1.48m

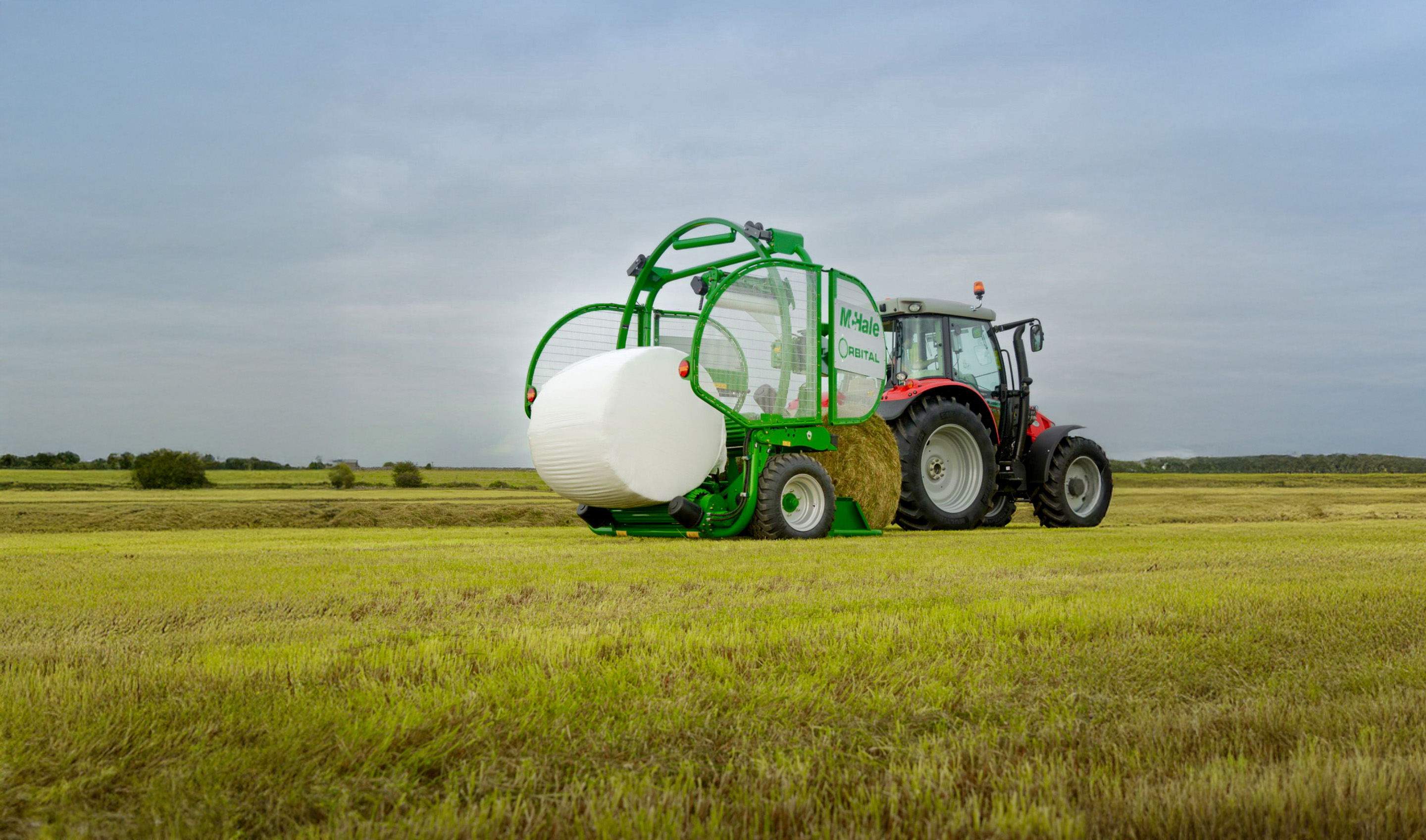

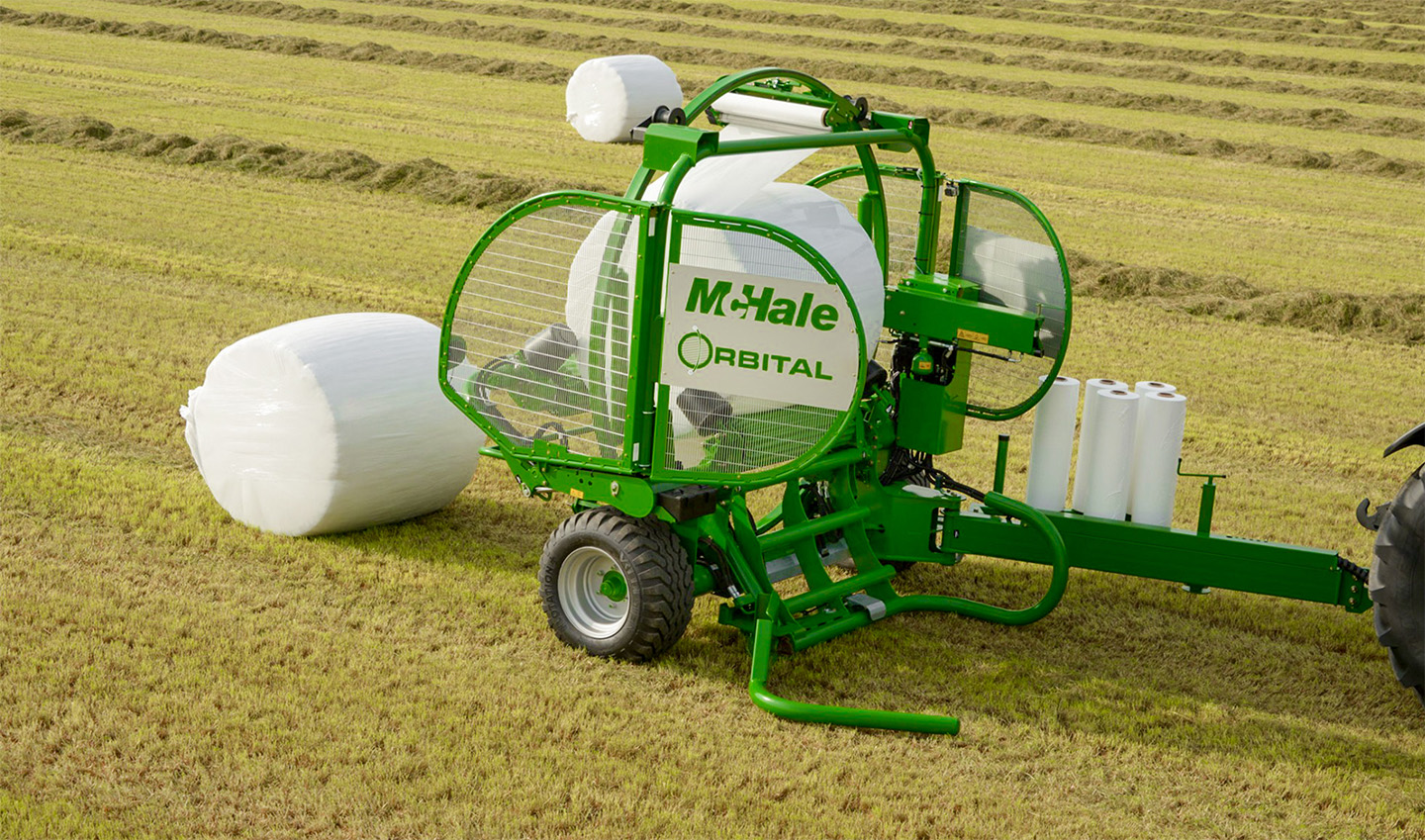

Gentle Bale Tip after Wrapping
Film Break Sensors

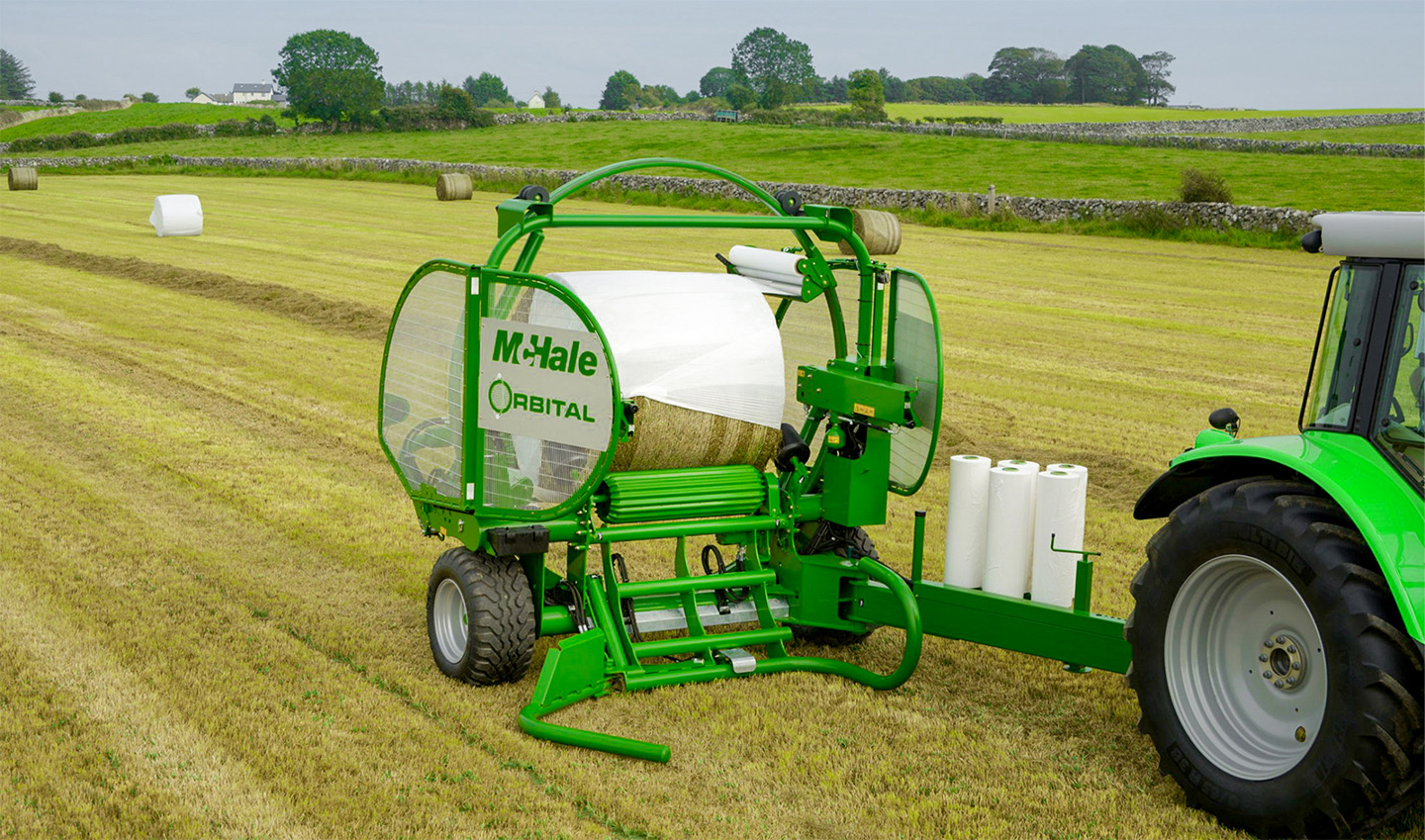

The McHale Orbital high-speed round bale wrapper harnesses the proven vertical wrapping ring technology used in the McHale Fusion such as the patented high-speed transfer system and the patented tip roller to deliver a high-output, low-maintenance wrapper which is capable of keeping up with multiple balers.
These patents ensure high output and superior levels of forage quality are achieved.

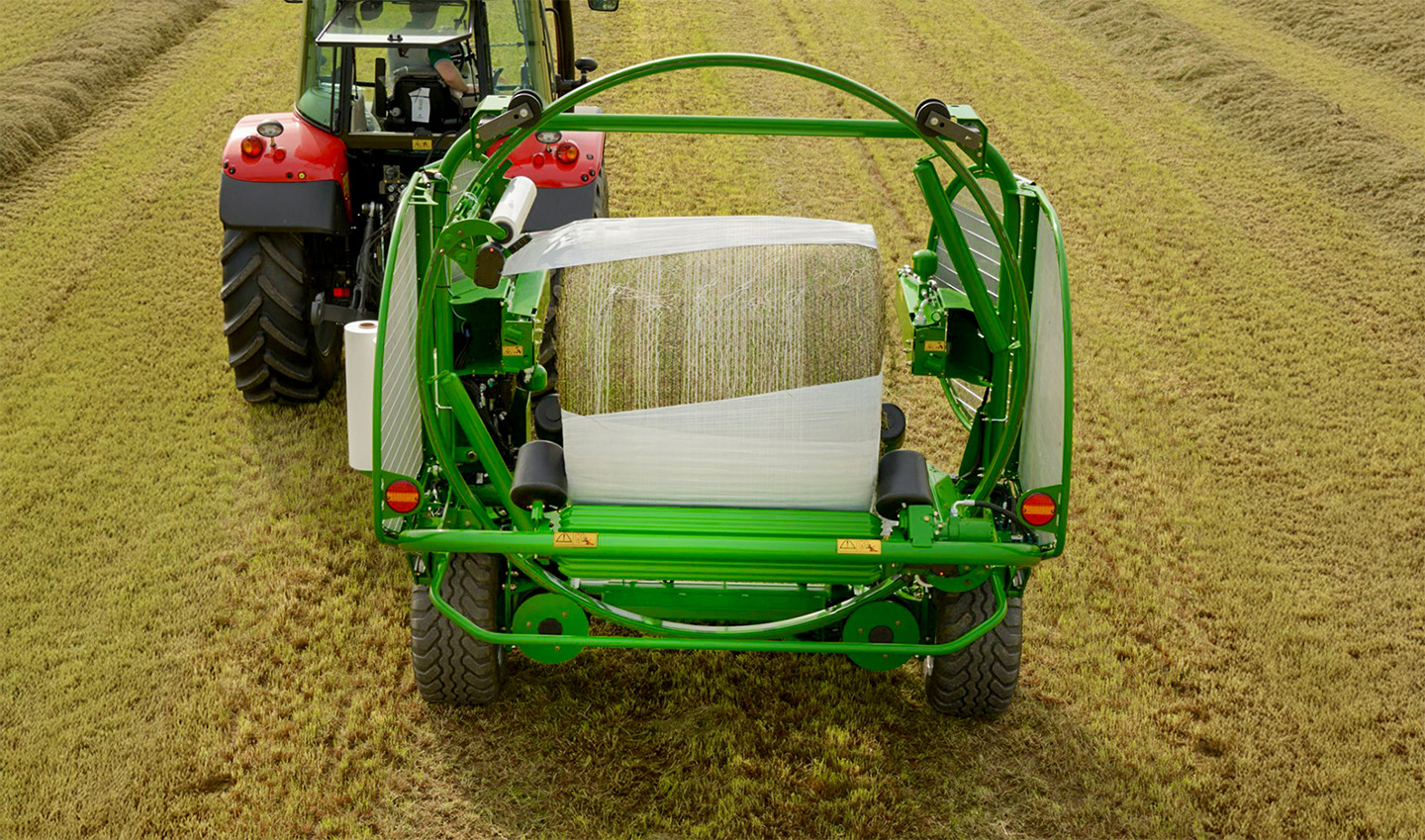

High-Speed Vertical Wrapping Ring
Once the bale is loaded onto the bale wrapper, the high-speed vertical wrapping ring can apply four layers of film to a 1.25m (4′) bale in approximately 18 seconds or six layers of film in under 25 seconds.
The low-maintenance design, with consistent distance between the dispensers and the bale ensures fast bale wrapping, an even overlap and reduces the likelihood of film breakages.
High-Speed Transfer System
As the lift arm moves the bale onto the wrapping platform, the front roller pivots down to reduce the height the bale has to travel to the wrapping position. This design allows the bale to transition in a smooth and quick manner that is stress-free on the machine. The lift arm also has the ability to carry a bale while another is being wrapped, delivering higher output.

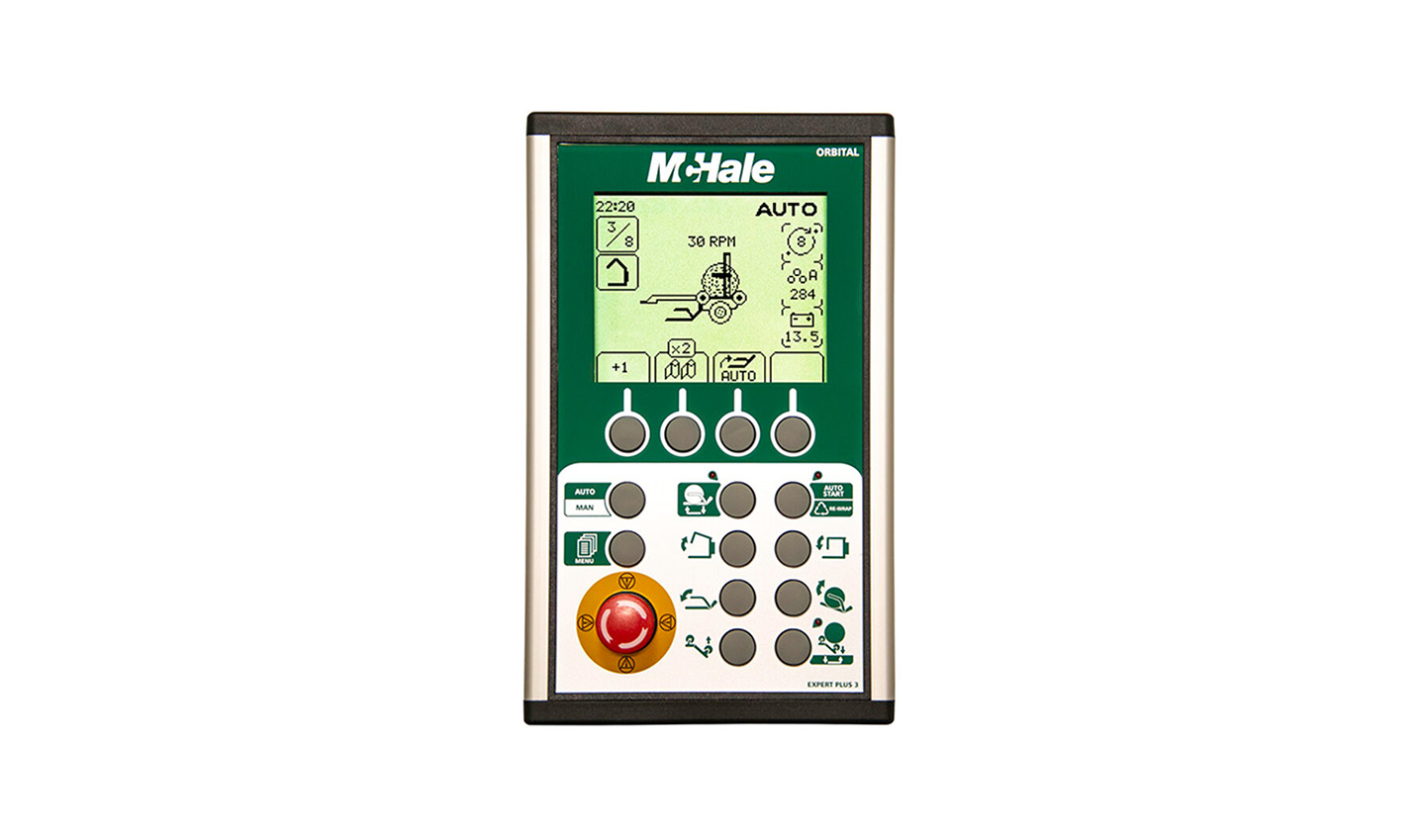

Control Unit
The Expert Plus control console provides clear indicators of machine performance on it’s large graphic display and with the load sensing valve, makes the high-speed wrapping operation fully automatic.
From the control console the operator can adjust the number of wrap layers, bale diameter and select manual or automatic bale tip. The control console features film break sensing and can also record a number of bale totals for different jobs.
Specifications
Compare specifications below, to find out what will be suit your operations
| Models | 991 High Speed | 998 High Speed | McHale Orbital |
|---|---|---|---|
| Sort | Wrapper | ||
| Min. HP Requirement | 47 | 50 | |
| Weight | 1900kg | 4073 kg | 1850kg |
| Length | 5.7 m | 7.3 m | 4.35 m |
| Height | 2.46 m | 3.69 m | 3.0 m |
| Width | 2.45 m | 2.99 m | 2.74 m |
| Lifting Capacity | 1100kg | 1200 kg | |
| PTO Speed | 500-800 RPM | ||
| Bale Diameter | 1.52 m | From 80 x 60 cm to 120 x 160 cm, including double bales: 120 x 70cm. Max. bale length 2 m | 1.48 m |
| Storage | 8 (2+6) | 12 (10 in storage and 2 in dispensers) | 8 (2+6) |
