McHale 991 High Speed
McHale’s round bale wrapper range is purpose-built for today’s farmers and contractors, delivering simple, reliable operation and high productivity. Designed to help reduce costs and increase output, the range features patented technologies including hydraulic ground-supported bale damping, high-speed transfer, tip rollers, a hydraulic cut-and-hold system, 750mm film dispensers, and premium-spec components — built to perform in demanding New Zealand conditions.
3 Models
McHale Orbital
991 High Speed
998 High Speed
Expert Control Console (Fully Automated)
Automatic Cut & Hold System
Film Break Sensors
750mm Twin Film Dispensers
Auto Load Lift Arm Function

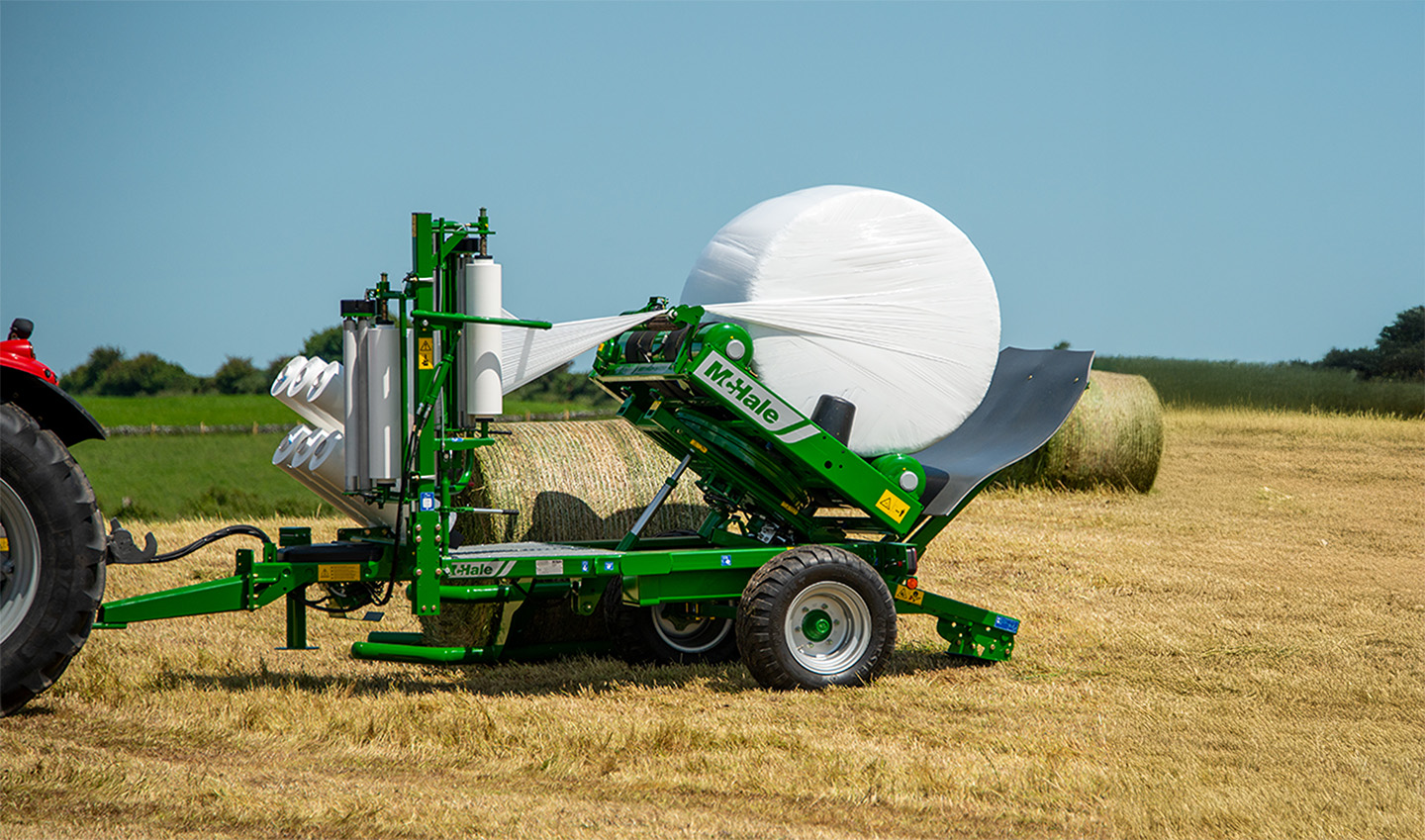

The McHale 991 High Speed sets the pace for efficient and effective round bale wrapping, with the hydraulically operated cut and hold system, reducing wrapping time with it’s twin dispensers and Patented Ground Supported Damper System.
The 991 High Speed delivers tightly wrapped bales which seal and preserve the crop, with all it’s natural juices, ensuring increased nutritional value. The twin 750mm aluminum dispensers maintain a consistent stretch, which maximises film usage. The dispenser units consist of two aluminium rollers, which are geared to each other with robust steel gears of different ratios. The two dispensers on the 991 High Speed are stepped so that there is an overlap where the two sheets of plastic come together.

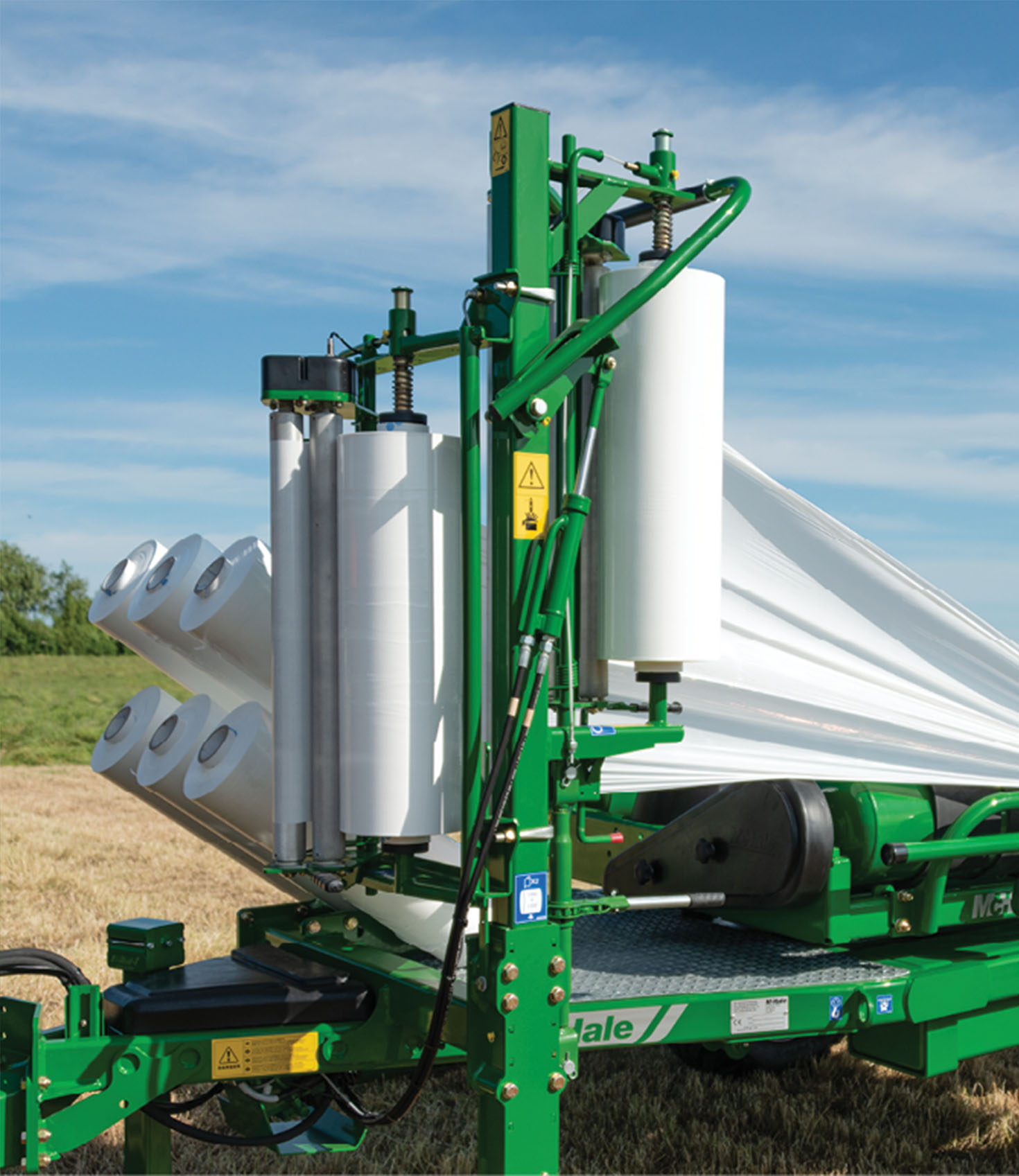

Twin Dispensers
Twin 750mm dispensers equipped with two aluminum rollers are paired to each other with robust steel gears of different ratios to maintain a consistent stretch and maximise film usage.

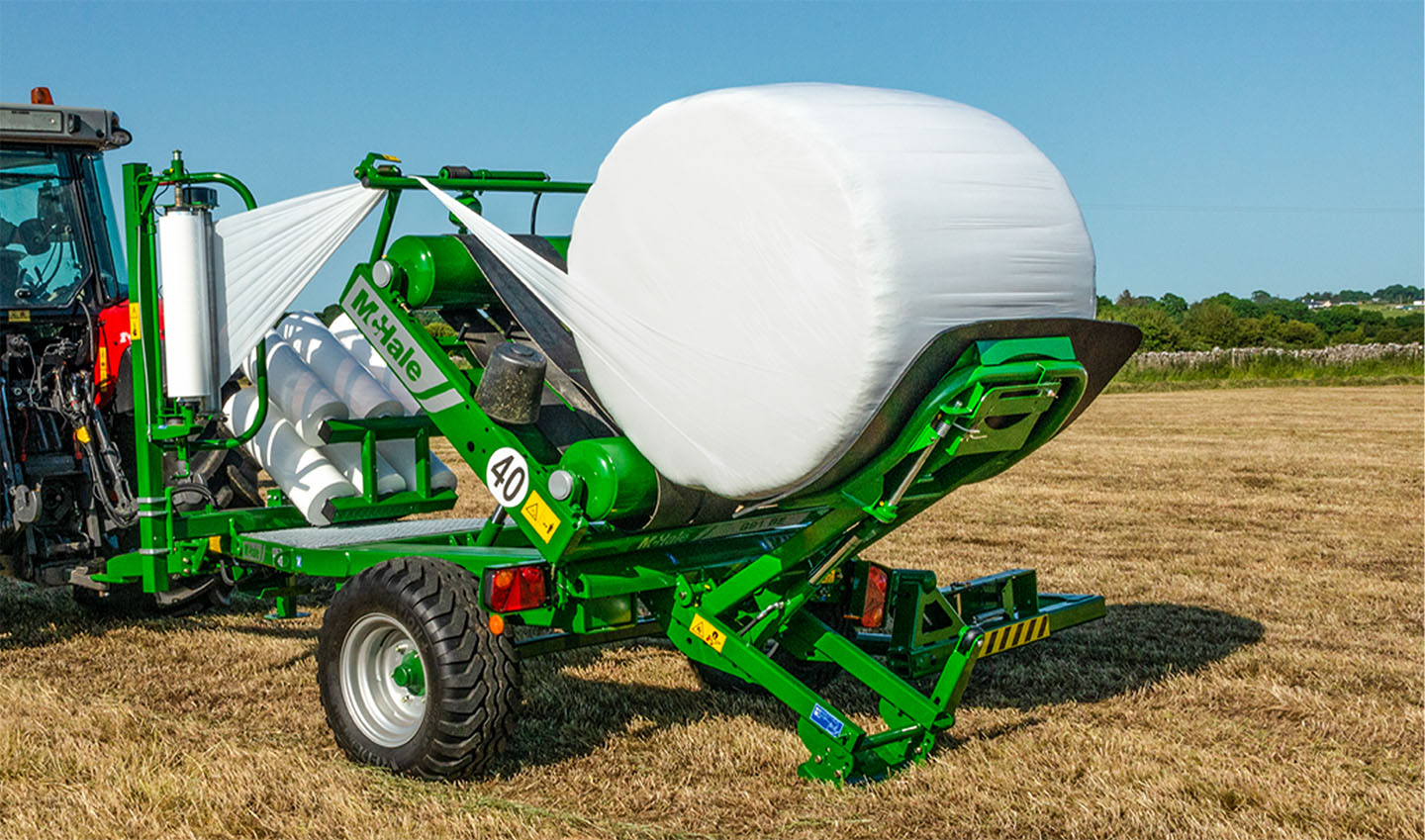

Ground Supported Damper System
The patented bale damper system gently lowers the bale to the ground while eliminating any stress on the chassis of the machine.
When tipping a bale, the heavy-duty damper is also lifted to cradle it, while the second arm is lowered automatically to the ground. This allows the heaviest of bales to be gently lowered to the ground, eliminating any damage.

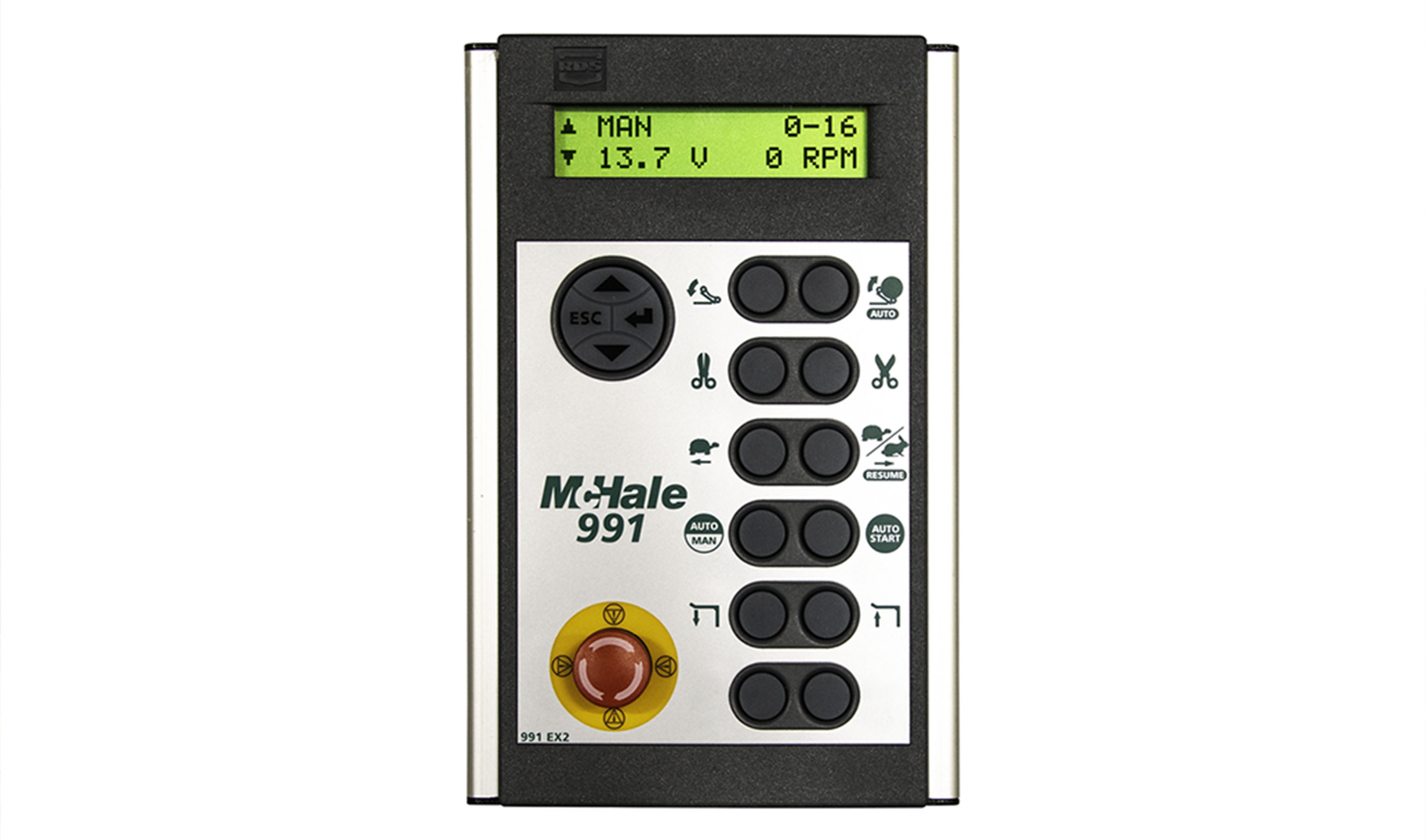

Control Unit
The Expert electronic control console fully automates the wrapping process. This user-friendly console provides access to all functions without ever having to leave the comfort of the tractor seat.
From the control console, an operator can select;
- Auto bale load function
- Auto bale tip function
- Single roll bale wrapping mode
Specifications
Compare specifications below, to find out what will be suit your operations
| Models | McHale Orbital | 991 High Speed | 998 High Speed |
|---|---|---|---|
| Sort | Wrapper | ||
| Min. HP Requirement | 50 | 47 | |
| Weight | 1850kg | 1900kg | 4073 kg |
| Length | 4.35 m | 5.7 m | 7.3 m |
| Height | 3.0 m | 2.46 m | 3.69 m |
| Width | 2.74 m | 2.45 m | 2.99 m |
| Lifting Capacity | 1200 kg | 1100kg | |
| PTO Speed | 500-800 RPM | ||
| Bale Diameter | 1.48 m | 1.52 m | From 80 x 60 cm to 120 x 160 cm, including double bales: 120 x 70cm. Max. bale length 2 m |
| Storage | 8 (2+6) | 12 (10 in storage and 2 in dispensers) | |
