Kverneland twin-rotor rakes, including the CompactLine and ProLine Series, are built for New Zealand farmers and contractors who need reliable, high-capacity windrowing in demanding conditions. With working widths from 7.2–9.0 m and hydraulically adjustable working and swath widths, they offer flexibility across varying crop volumes. Features such as TerraLink Quattro ground following, oil-bath gearboxes, strong carrier frames and sharp turning capability ensure smooth performance and durability. Hydro transport options keep transport height below 4 m, making them practical for NZ roads and gateways.

4 Models Working Width

9472 C

6.2 m - 7.2 m

9580 C

7 m - 8 m

9584 C

7.6 m - 8.4 m

9590 C-H

8m - 9 m

Hydraulic Adjustable Working Width

80° Turning Ability

Maintenance Free Proline Gearbox

Kverneland 94/9500 Series

Overview
Video
Brochure
Specifications
Gallery

Talk to an Expert

Kverneland 94/9500 Series

Overview
Video
Brochure
Specifications
Gallery

Talk to an Expert

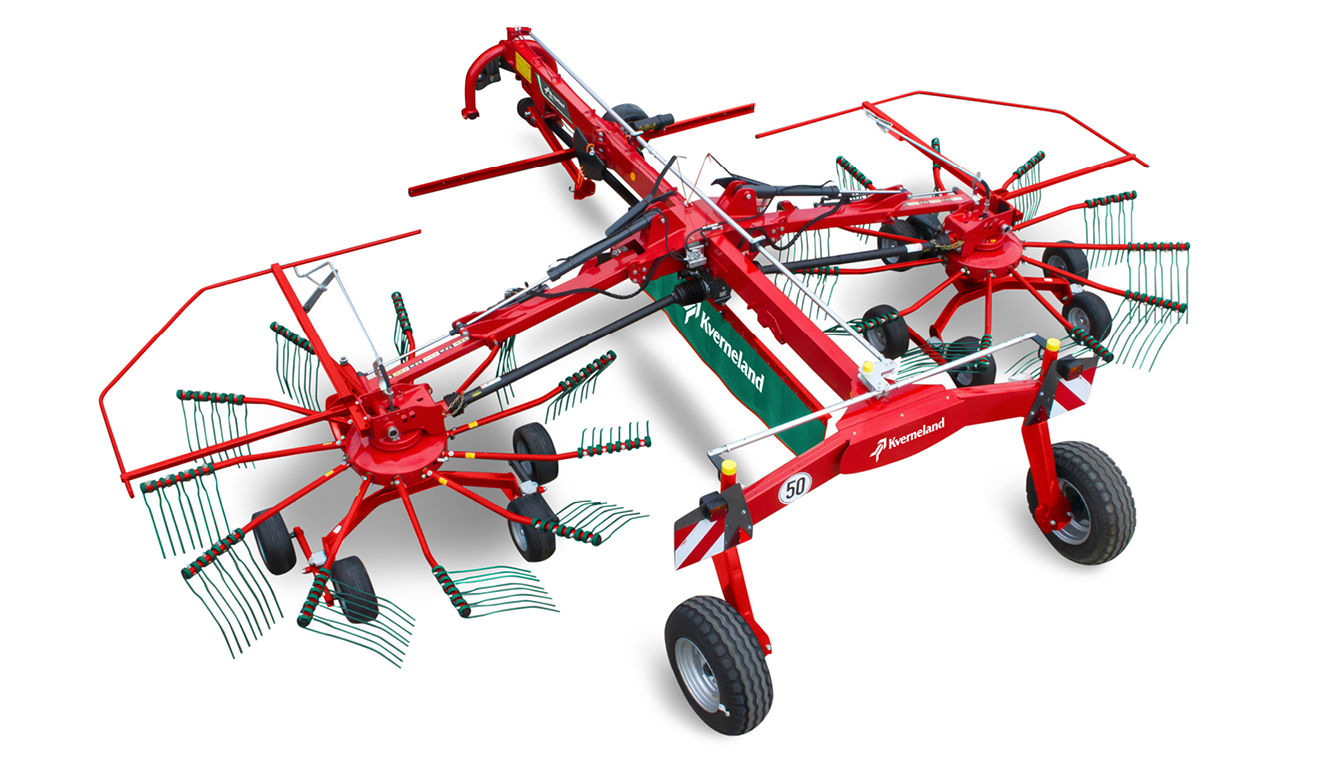

Kverneland 9472 C | 9580 C | 9584 C | 9590 C-H

Kverneland CompactLine and ProLine rakes are designed for efficient, reliable performance across a wide range of conditions, with working widths ranging from approximately 7 m to 9 m.

Built on solid, stable frames, these machines combine durability with ease of operation, featuring hydraulically adjustable working and swath widths, actively steered or flexible wheel systems, and transport solutions that minimise height for safe and convenient road travel. Heavy-duty models incorporate robust carrier frames, high-performance gearboxes, and advanced driveline designs to protect against PTO misuse, while features such as individual rotor lifting, simple lift arm suspension, and optional electric height adjustment enhance flexibility and efficiency. Overall, these rakes are engineered to deliver strong crop turning performance with minimal maintenance and maximum adaptability across varying terrains.

Talk to an Expert

9500 Series Feature

ProLine Gearbox

The ProLine rakes feature a unique drive system which comprises oil-immersed pinion and crown wheels
The fully enclosed design ensures full and permanent lubrication, and makes the entire system absolutely maintenance-free
The hardened cam track is adjustable, and features a flat curve and an extremely large 400mm-diameter, providing positive guidance to the steel rollers, and promoting quiet machine running
Aluminium-bearing housings, with two integral ball bearings and wide support, provide solid and maintenance-free tine arm mounting

Talk to an Expert

9000 Series Feature

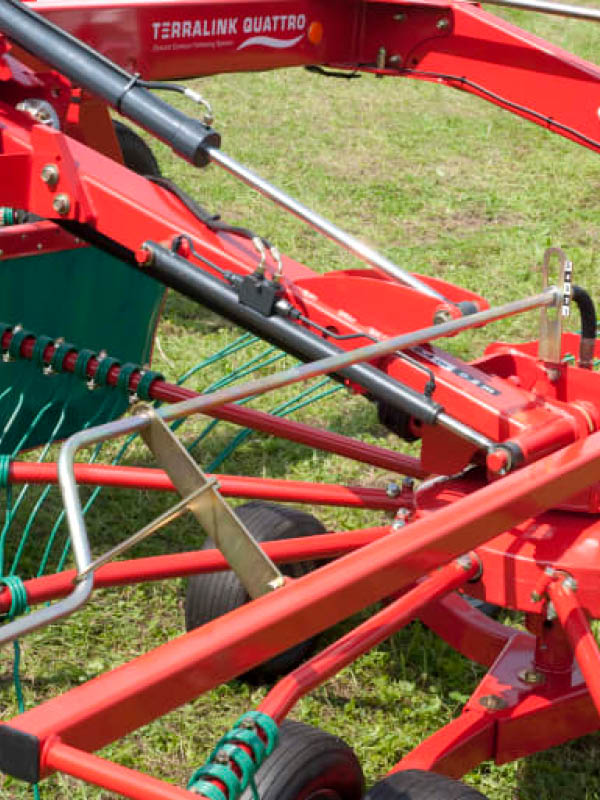

Hydraulically Adjustable Working Width

The Kverneland centre swath rakes offer hydraulic adjustable working width
This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers

Talk to an Expert

9000 Series Feature

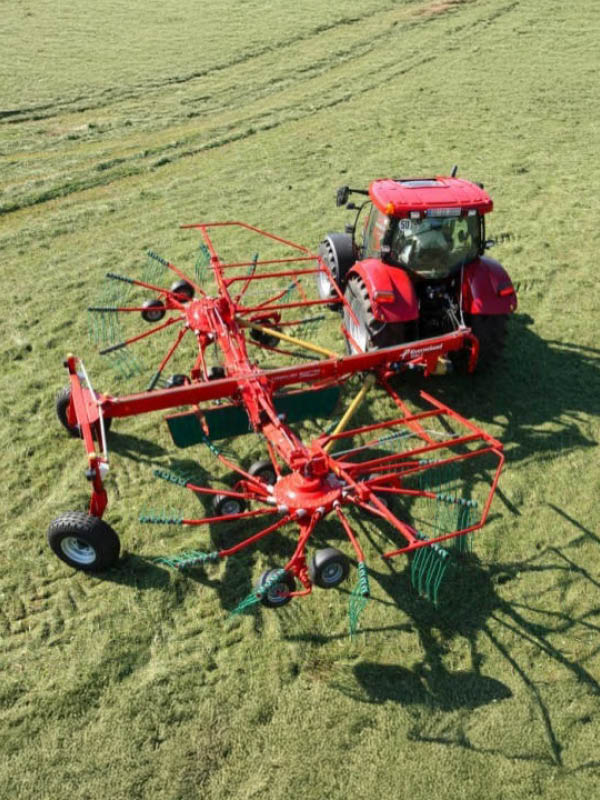

Maneuverability

The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields
Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation
The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features

Talk to an Expert

Brochure

Specifications

Compare specifications below, to find out what will be suit your operations

Models	9472 C	9580 C	9584 C	9590 C-H
Sort	Twin Rotor Rake
Weight	1640 kg	2065 kg	2284 kg	2350 kg
Working Width	6.2 m - 7.2 m	7 m - 8 m	7.6 m - 8.4 m	8m - 9 m
Transport Width	2.8 m		2.98 m
Rotor Diameter	2.95	3.35 m	3.65 m	3.85 m
No. of Rotors	2
Tine Arms Per Rotor	11	12		14
