Kverneland 800 Series

852

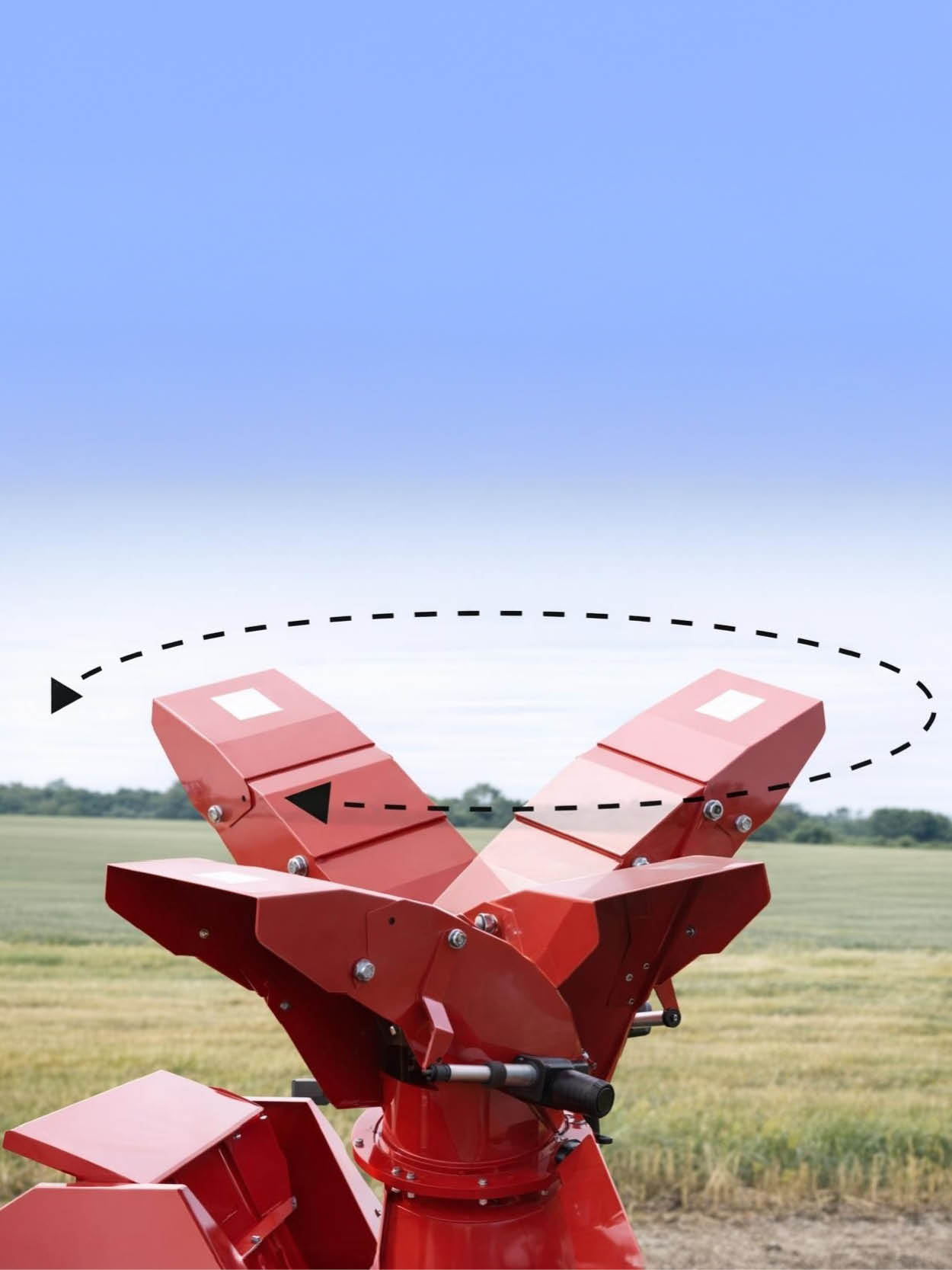

• The swivelling 3-stage chute operates to optimise the distance for bedding
• Offers a 260° rotation of the chute
• Discharges straw at a distance of up to 18 m

860 Series

• The swivelling chute operates in 4 stages to optimize the blowing distance for bedding
• Blowing distance up to 20m
• Turning radius of 260° which enables easy access to even difficult reachable spaces

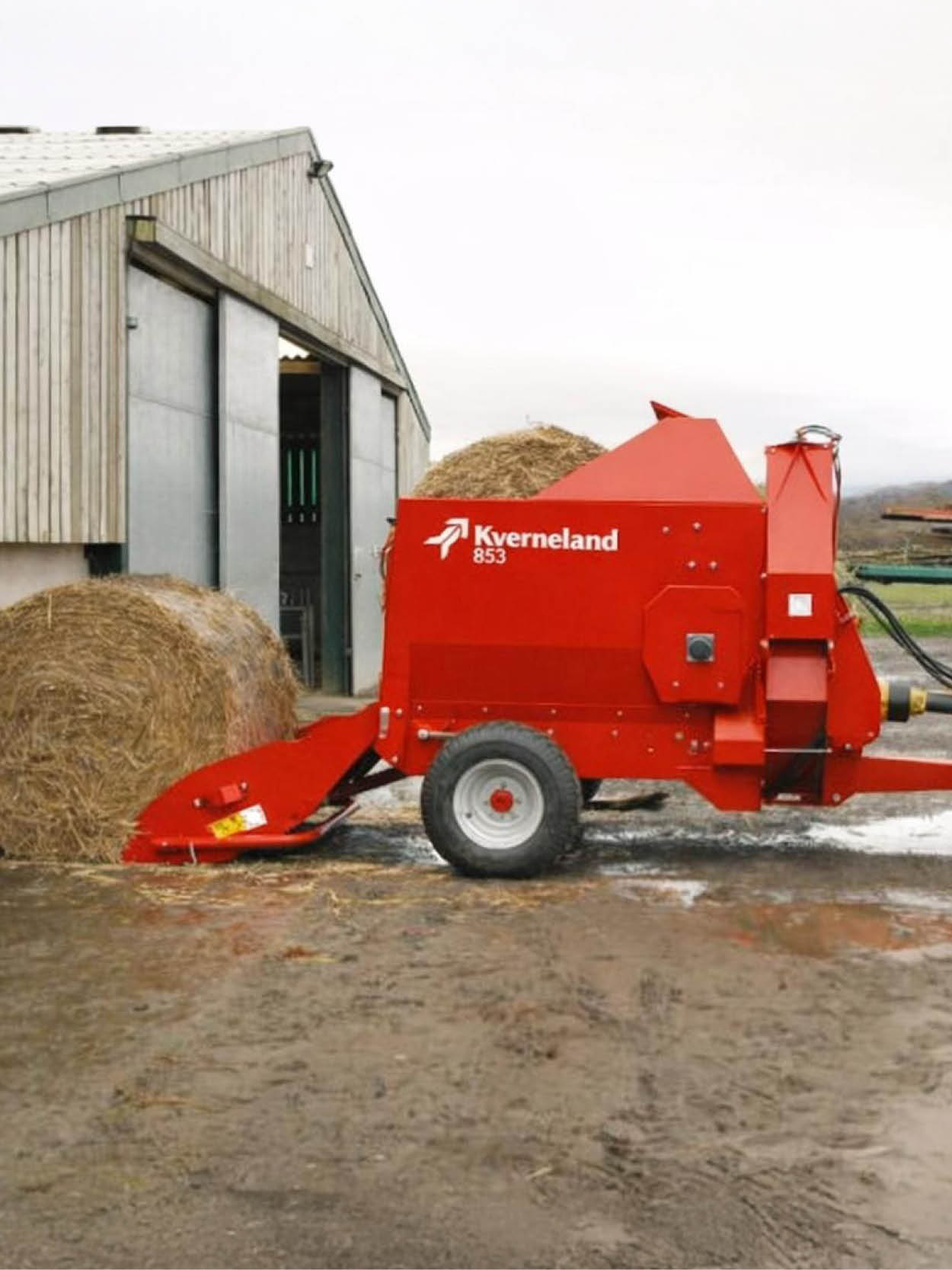

• The hydraulically operated rear door fitted provides a self loading facility for easy loading of square and round bales
• The rear door also offers the ability to carry a second round bale for increased capacity
• A bale kit can be fitted to the end of the tailgate to ensure that the bales stay in position during operation
• The size of the bale chamber makes it very easy to load the material with a loader – and two round bales can be loaded at the same time – saving time

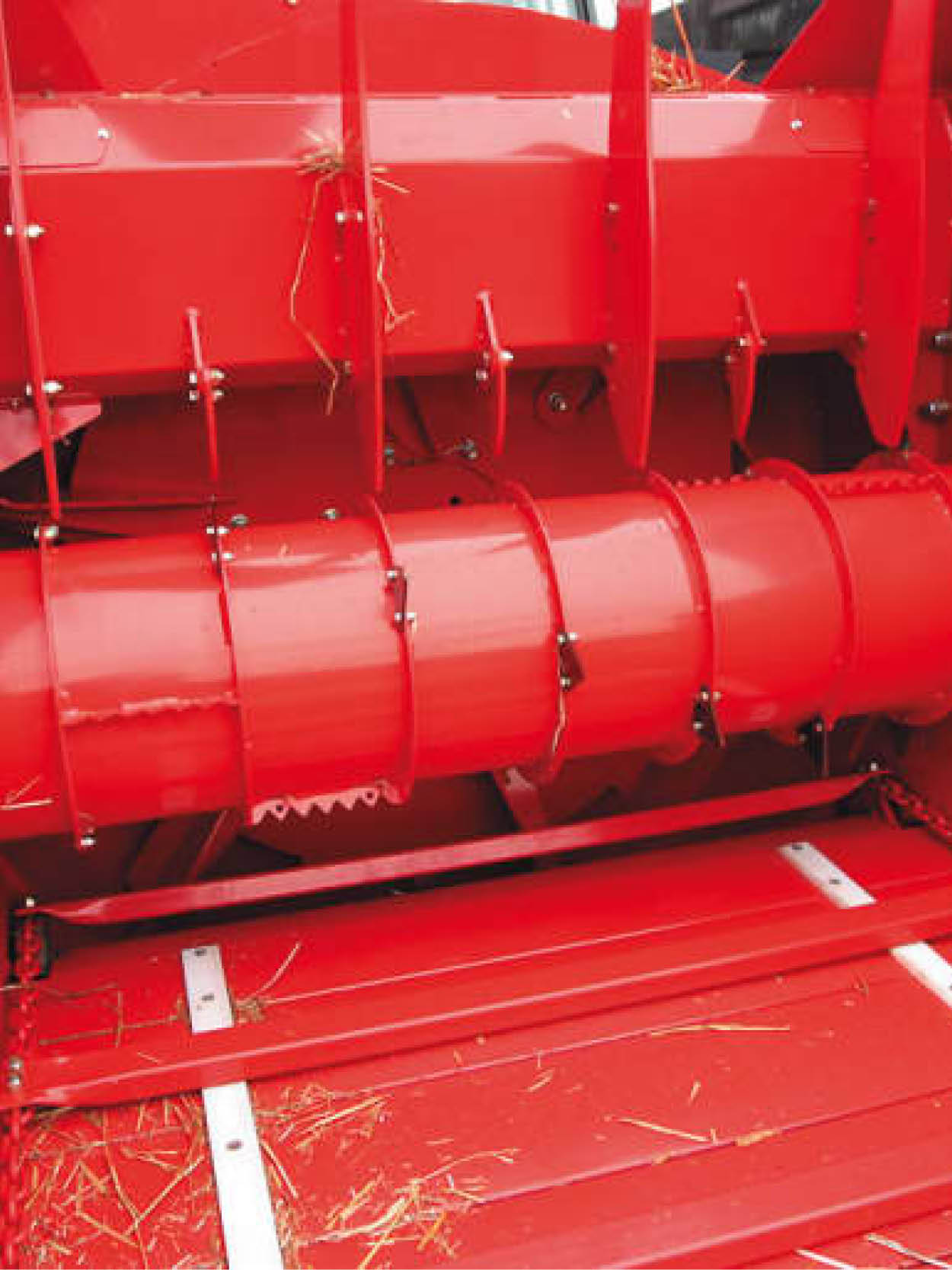

• The working heart of the 852 is the combination of drum, comb & flywheel – all specifically designed to shred straw bales in all formats
• The drum is fitted with spirals of blades and small ‘gripper’ teeth, which take the straw from the bale and feed it evenly into the flywheel chamber
• The flywheel can discharge the straw via the 280° swivelling chute at distances up to 15 metres – even feed of the straw onto the flywheel reduces blockage risk and maintains tractor power needed at a minimum level

• To provide the correct flywheel speed for bedding and feeding Kverneland 863 and 864 is fitted with a two speed gearbox
• At lower speeds the flywheel ensures a metered flow of silage or hay for feeding
• At high speed a powerful blow for the most efficient distribution during bedding is ensured

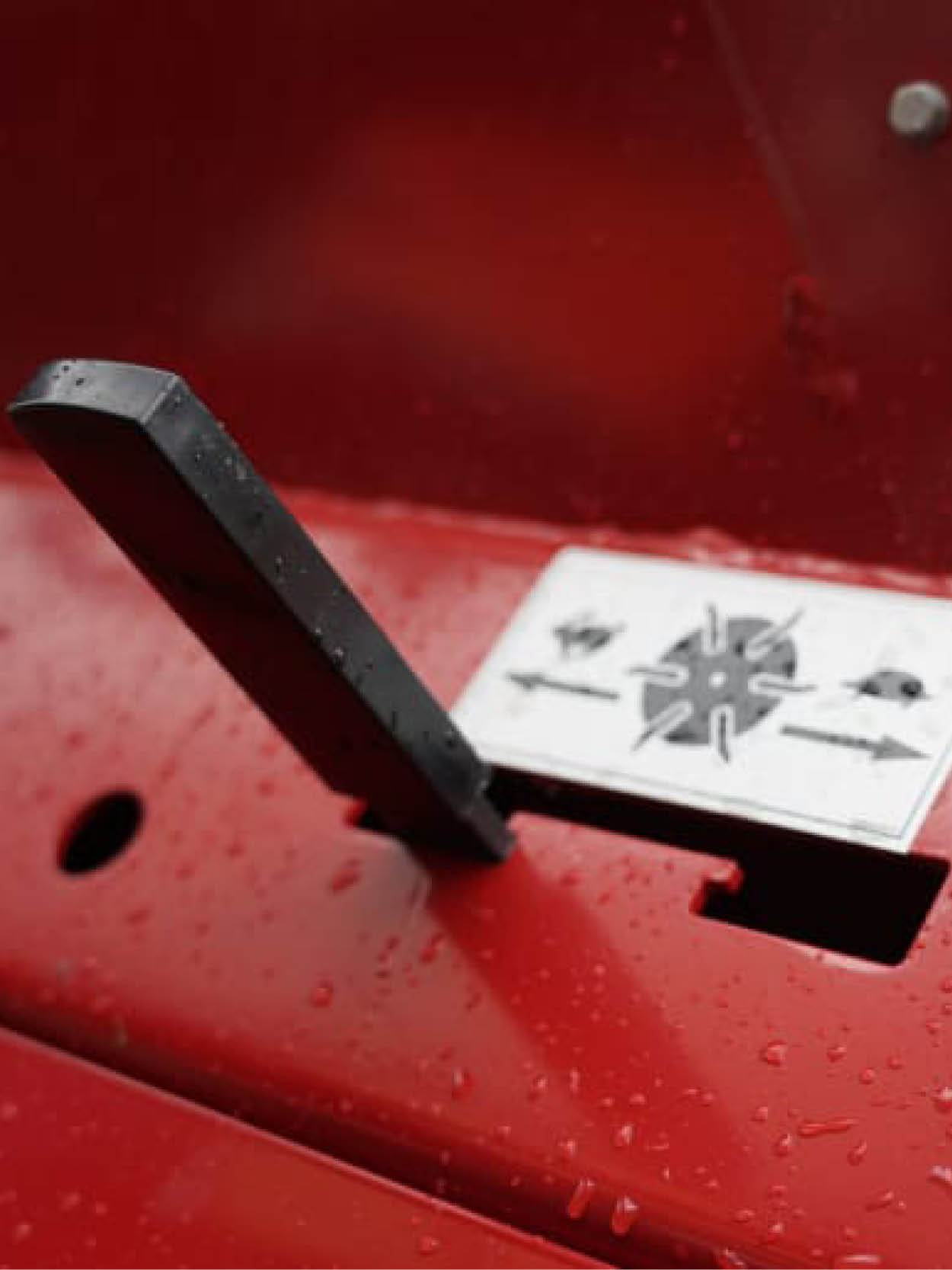

• The gearbox speed is adjusted via the handle on the front of the machine
