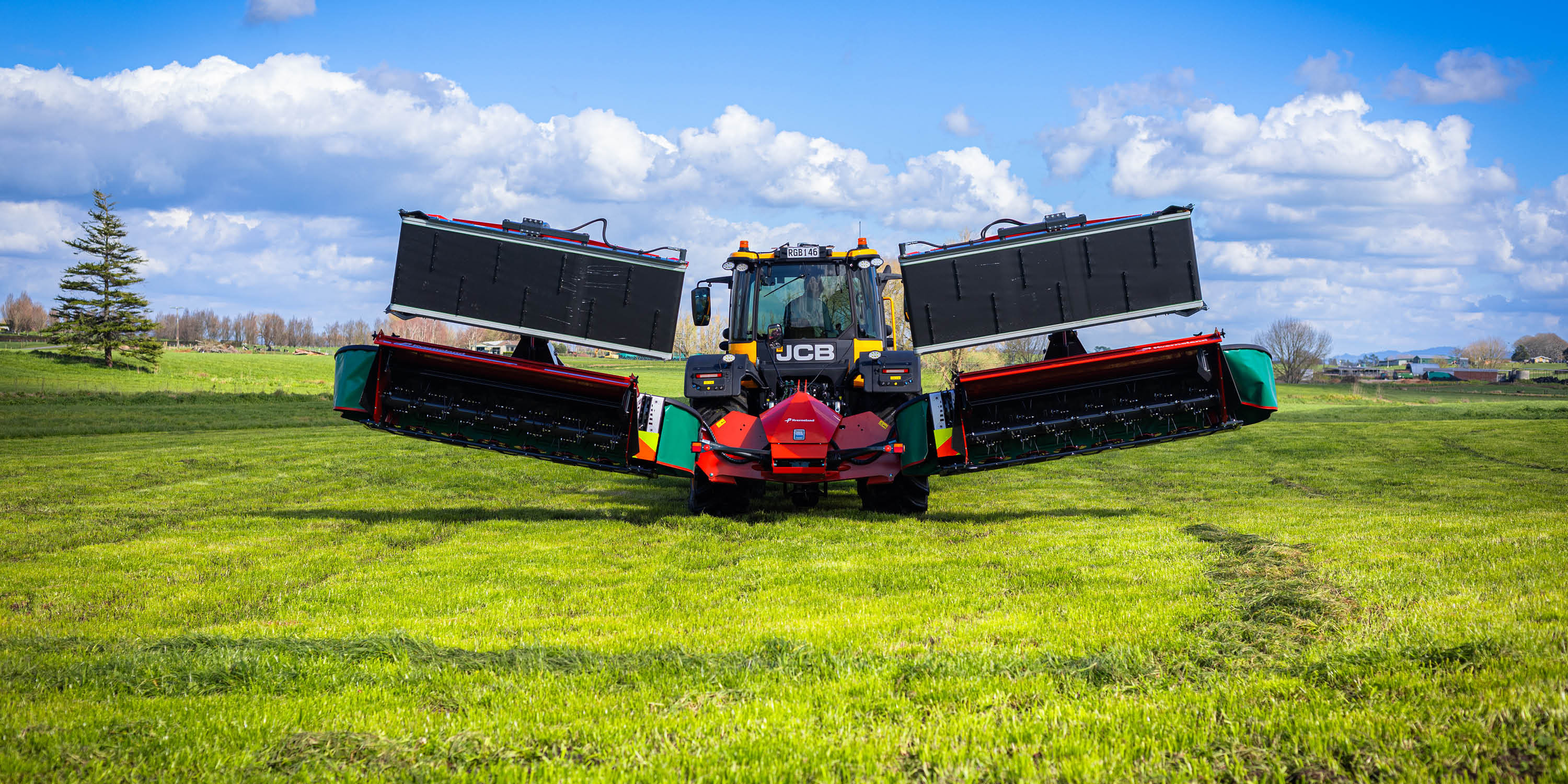

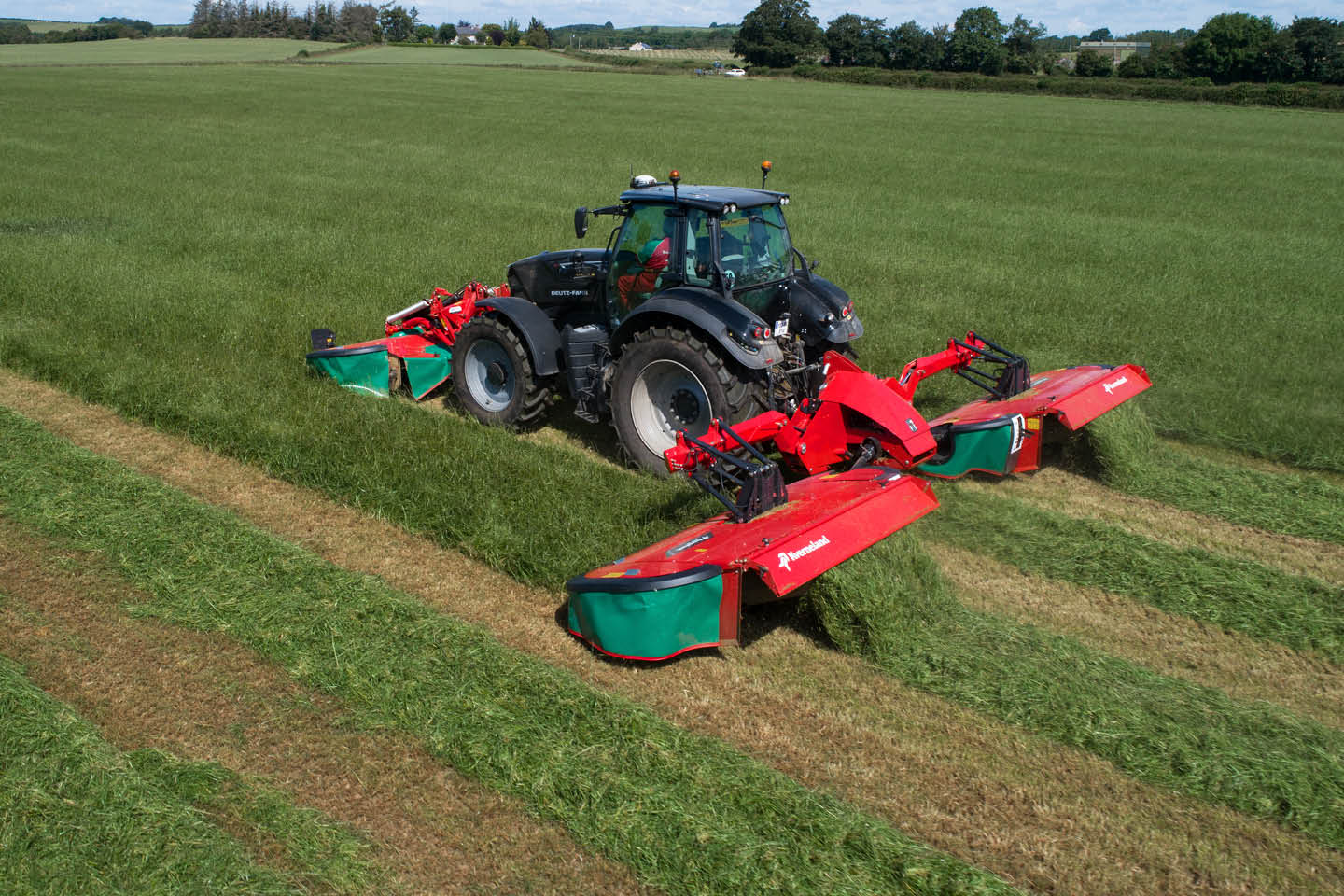

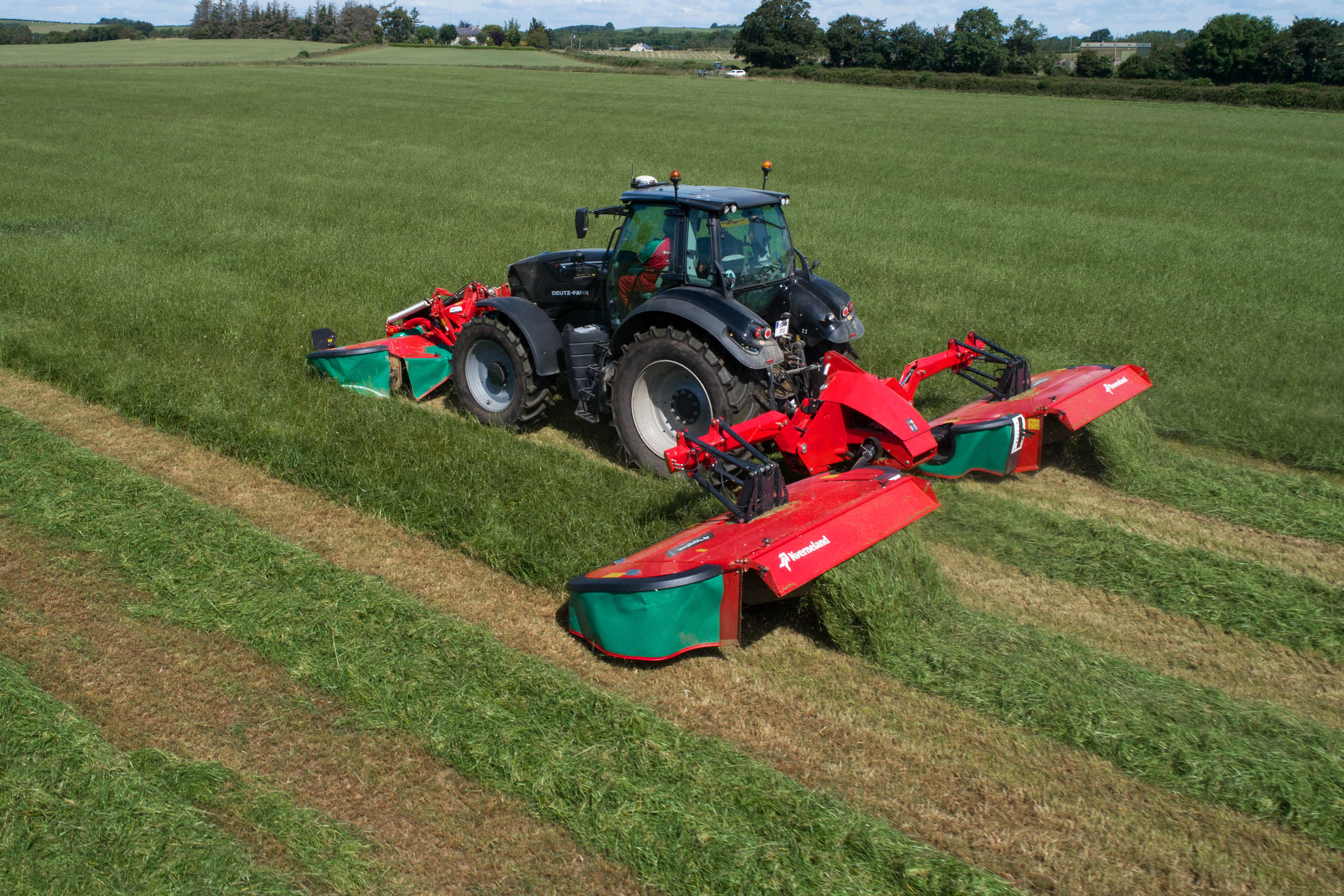

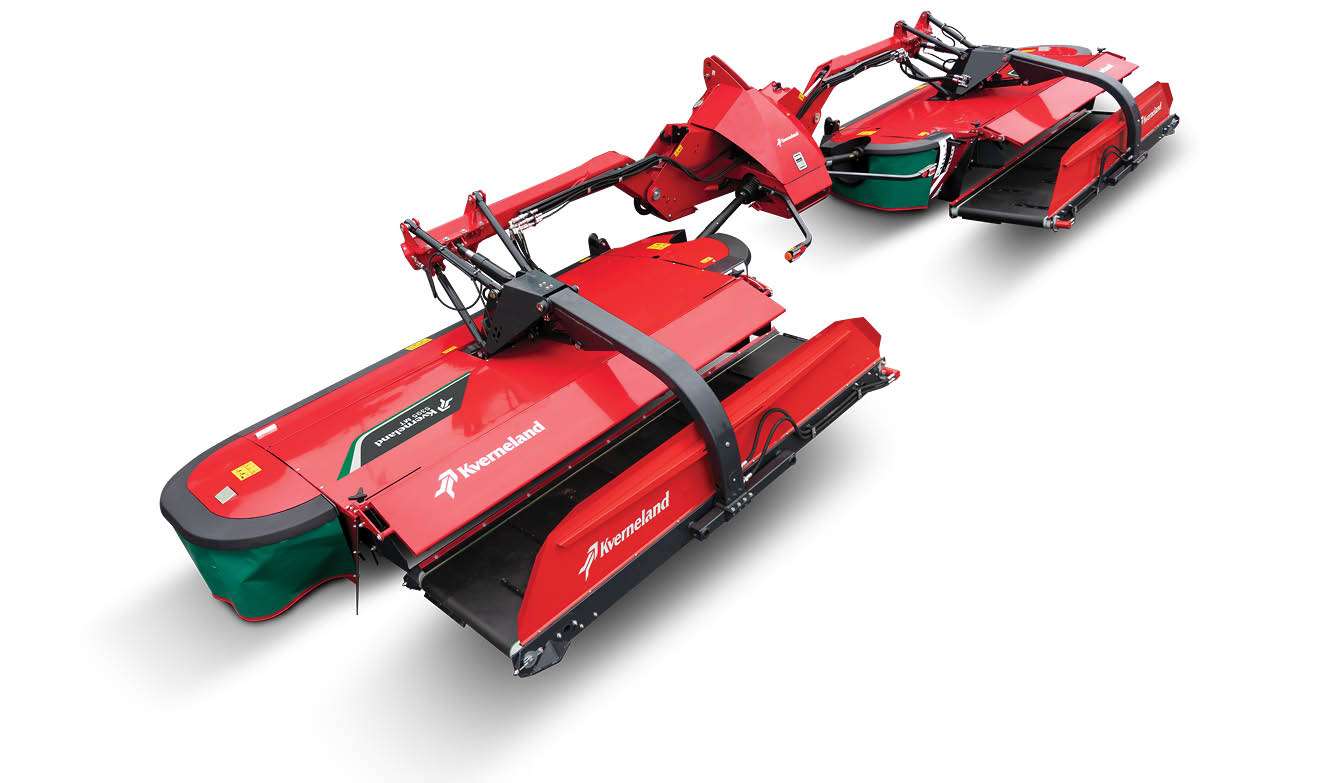

Kverneland 5000 Series Conditioners

Racecar Technology Applied for Mower Conditioners

What makes the QuattroLink suspension unique? The mowing unit is pulled by four suspension arms fitted onto a fixed carrying arm that allows the mowing unit to float independently over the field, adjusting highly accurately and instantly to any changes in ground contours.

No Compromises on Flexibility

The mowing pattern is extremely flexible with a vertical working range of 700mm up and down and a transverse working range of 30°. The 4 arm suspension concept ensures constant ground pressure during working operations.

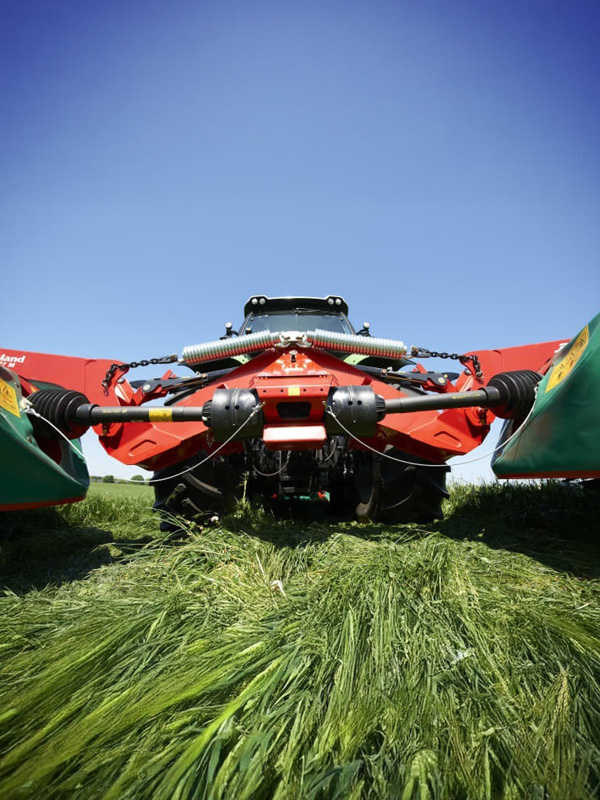

Accurate and Simple Suspension

The Kverneland 5087 MT is fitted with a highly efficient suspension system that includes centre suspended mowing units, efficient  spring suspension and NonStop BreakBack. The mowing units are centre suspended via a suspension spring, to give an even weight distribution across the complete mower width. The benefit is less skid wear, optimum protection of the stubble and less fuel consumption.

Two Mounting Options

Kverneland 5087 MT can be adjusted for optimal operation according to different circumstances, such as field contours or working width of the front mounted mower. To ensure optimal overlap between front and rear units, the mowing units can be mounted in two positions on the suspension arm.

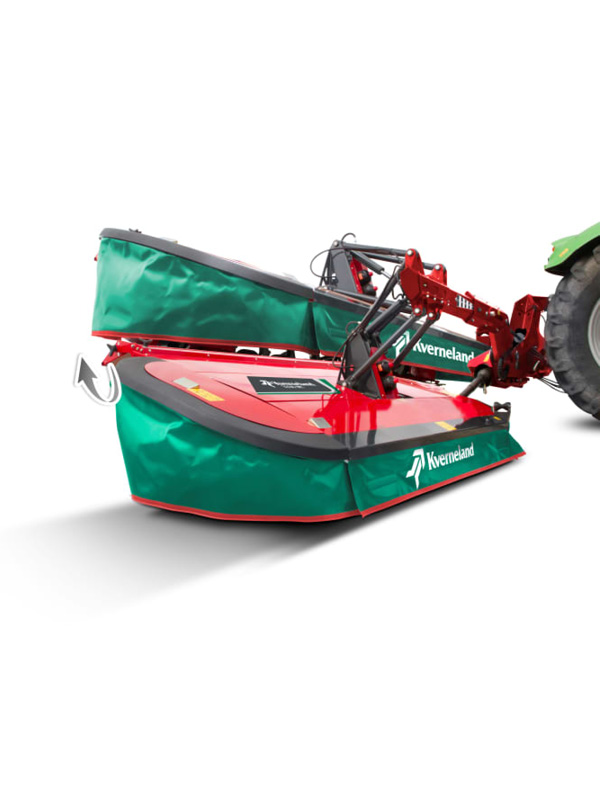

Our NonStop BreakBack system just got even better. With the new QuattroLink suspension this system now offers protection across the full working width of the mower, including the part closest to the tractor. There are no limiting factors on the inside part of the mower, giving the driver true peace of mind. When hitting an obstacle in the field, the mowing unit will instantly move backwards and up, and then return to the original position.

Even More Efficient Conditioning

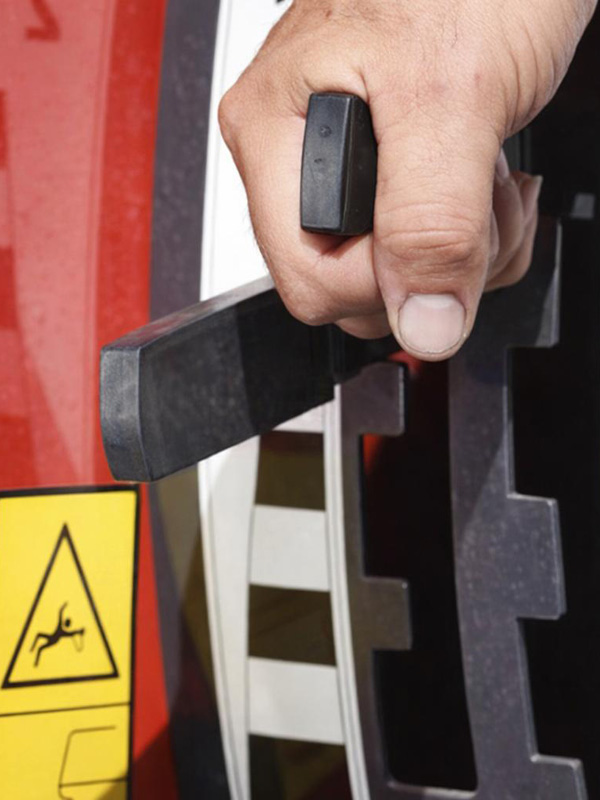

The new conditioner plate can be adjusted at both front and rear ends to customize the conditioner to crop intensity. The front end is adjusted separately to suit the crop intensity, even for massive crop, to avoid any blockages. Rear end is adjusted to ensure smooth and efficient crop flow into swaths or wide wide spreading.

Steel Tine Conditioner

Utilizing centrifugal force is what makes the Kverneland SemiSwing conditioner stand out among other conditioning systems.  It offers an aggressive conditioning effect while still offering excellent tine protection and virtually no wear and tear.  During operation tines will stay in a fixed position, providing full conditioning with minimum wear.

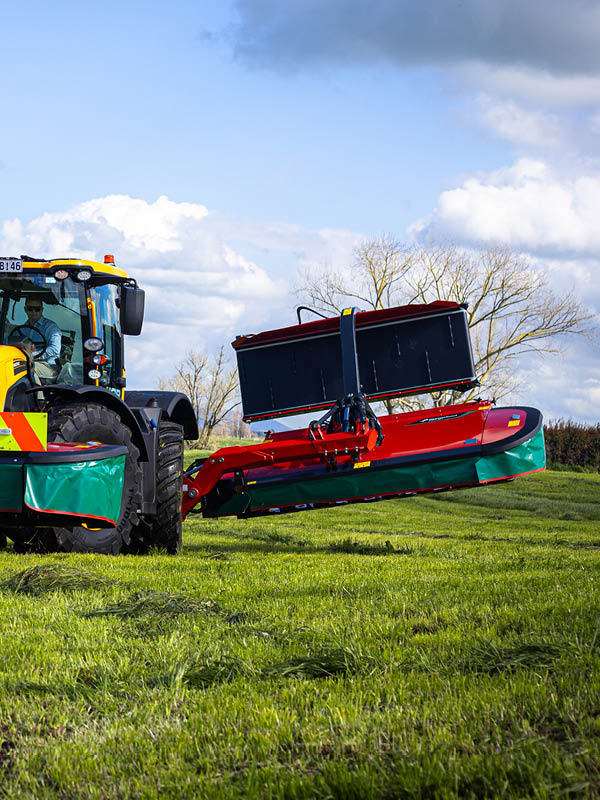

The Kverneland 5000 series provides generous clearance across the complete cutterbar, including the inside area. When lifting the mower on headlands, the mowing unit is raised and the carrying arm is tilted to a 10° angle. This provides the Kverneland 5000 series with a level ground clearance of minimum 500mm across the full working width. When lowing the mowing unit the carrying arm is lowered evenly without one side touching the ground before the rest of the mower, avoiding unnecessary stress and wear on the mower

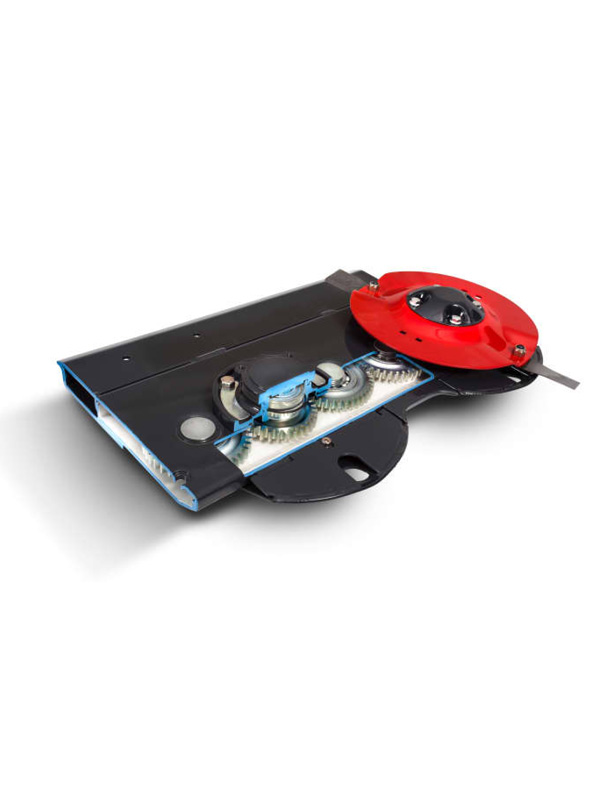

• Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission
• Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs – at the same time as a clean and aggressive cut
• The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar
• The long curved gear wheels running in oil provides a very quiet and reliable power transmission
• The fully welded cutterbar gives a very stiff and strong design for high durability
• With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever
