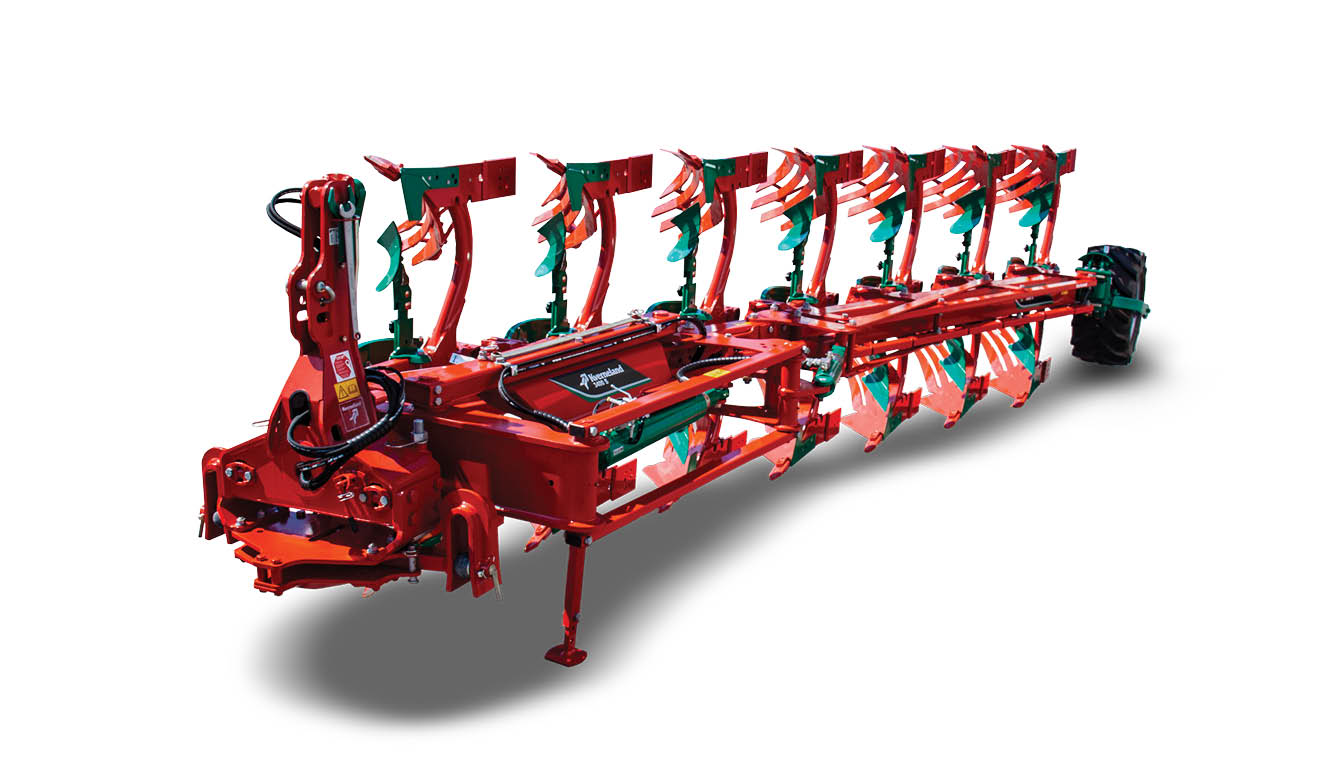

Kverneland 3400 S

The stepless Vari-width® system allows infinite adjustment of working width, available with hydraulic or mechanical furrow settings.

Benefits include easy variation of ploughing capacity to match tractor, implement, and soil conditions. It saves time with up to 30% higher capacity and reduces fuel consumption by up to 18%. The system allows ploughing close to hedges, fences, trees, and ditches.

A unique non-wearing linkage joint between beams and mainframe ensures minimum wear. The correct parallel linkage along the plough maintains a perfect line of pull, reducing draft requirements and wear while delivering consistent, efficient, and high-quality ploughing performance in all conditions.

With over 140 years of experience, Kverneland steels deliver exceptional strength and the best robustness-to-weight ratio on the market. Competitors would need more steel to achieve similar strength, adding weight, increasing wear, and reducing ploughing performance.

Lighter Kverneland steel means easier pulling, lower fuel use, reduced lift requirements, less tractor stress, and more economical operation. Higher resistance provides minimal breakage, less maintenance, longer life, and higher second-hand value.

Kverneland ploughs are designed for reliability when it matters most, giving consistent results in tough conditions, saving time and money, and providing complete peace of mind for the user.

TTS (Trailer Transport Solution)
The optional Kverneland TTS allows the plough to behave like a trailer during transport. A turnable cross shaft provides up to 45° offset for stable handling in curves, ensuring safety for the driver and surroundings. Conversion from transport to ploughing is quick and simple.

Aero-Profile Legs
Specially designed legs provide smooth soil flow and 80 cm clearance to prevent blockages in heavy residues or manure. Pre-shaped components reduce welds, while hollow legs lower weight and pulling requirements.

Auto-Reset System

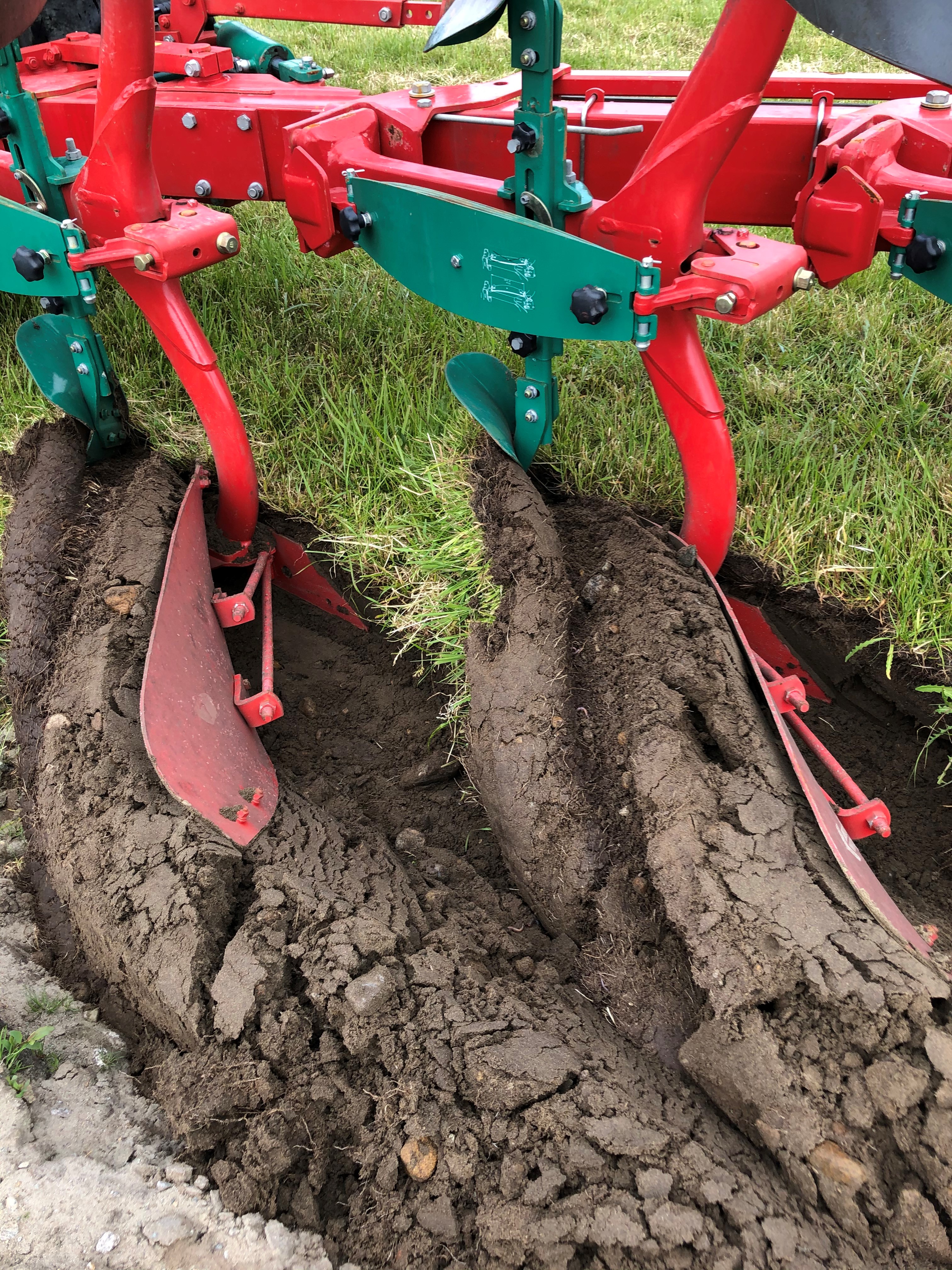

The maintenance-free leaf spring system allows independent body release and easy adjustment. Central skimmer adjustment ensures accurate setup and improved ploughing performance.

The plough frame is critical to overall strength. Kverneland frames are heat treated twice by induction, carefully controlling temperature to triple steel strength. This provides exceptional durability, robustness, and flexibility without adding weight.

A stronger frame with less steel reduces pulling forces, wear, lifting effort, tractor strain, and fuel consumption compared to heavier competitor frames.

Welds are eliminated by supplying frames as one solid part, further enhancing longevity.
