Front Mower

Kverneland 2800 F II Series

Download Brochures & Manuals Talk to an Expert

Kverneland front mowers, including the 2832 F and 2836F, are built for New Zealand farming conditions where clean cutting and reliable ground following matter. Designed for outstanding cutting performance across uneven terrain, they deliver smooth operation with low weight and easy handling. With movement engineered directly into the mower design, they eliminate the need for a flexible front linkage. Tough, efficient and contractor-ready, they’re a proven solution for NZ pasture, hay and silage work.

2 Models Working Width

2832 F II

3.16 m

2836 F II

3.57 m

NonStop BreakBack solution

Direct coupling to tractor

No A-frame needed

Excellent ground adaptation

Kverneland 2800 F II Series

Overview

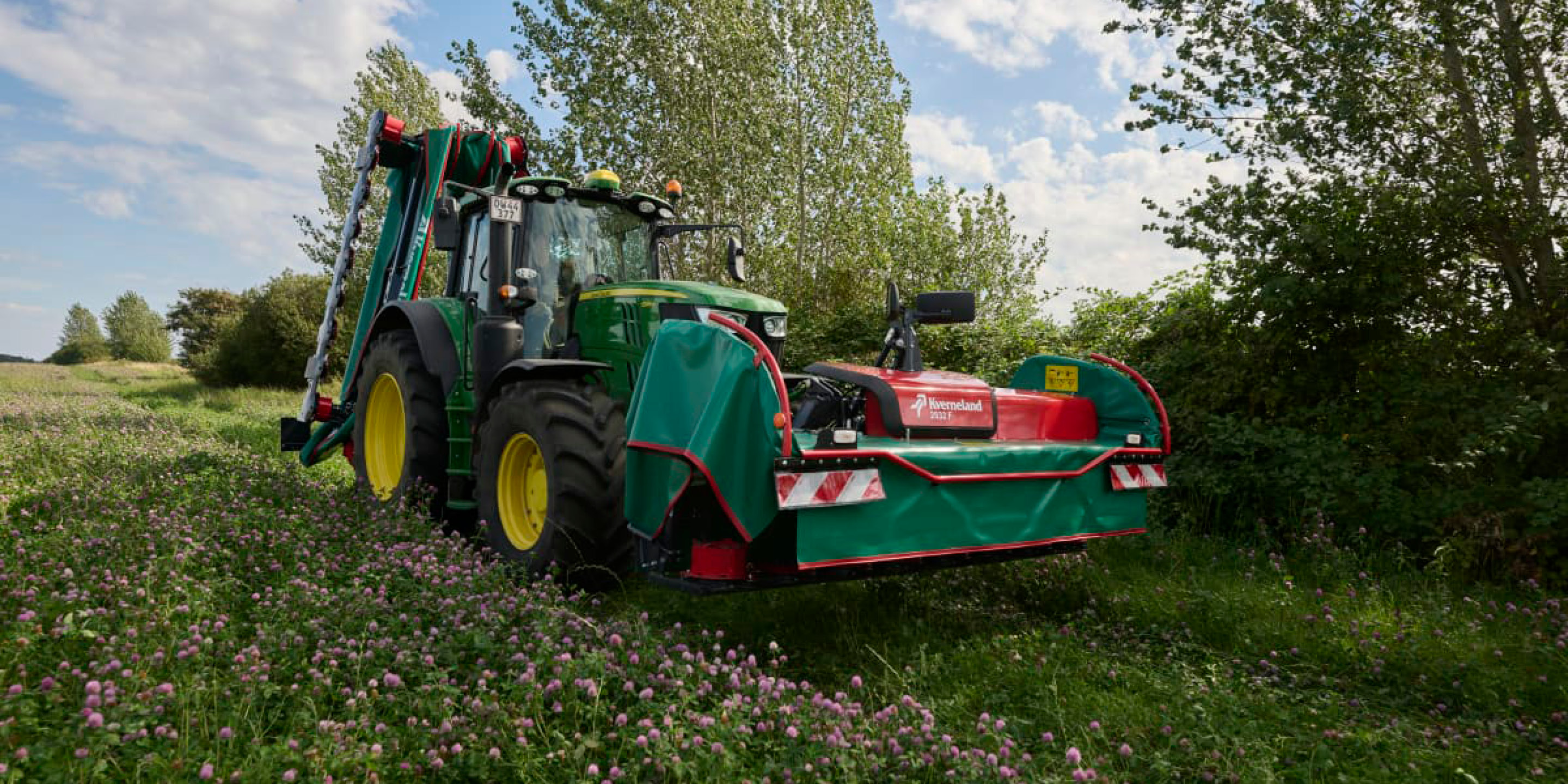

Video
Brochure
Specifications
Gallery

Talk to an Expert

Kverneland 2800 F II Series

Overview
Video
Brochure
Specifications
Gallery

Talk to an Expert

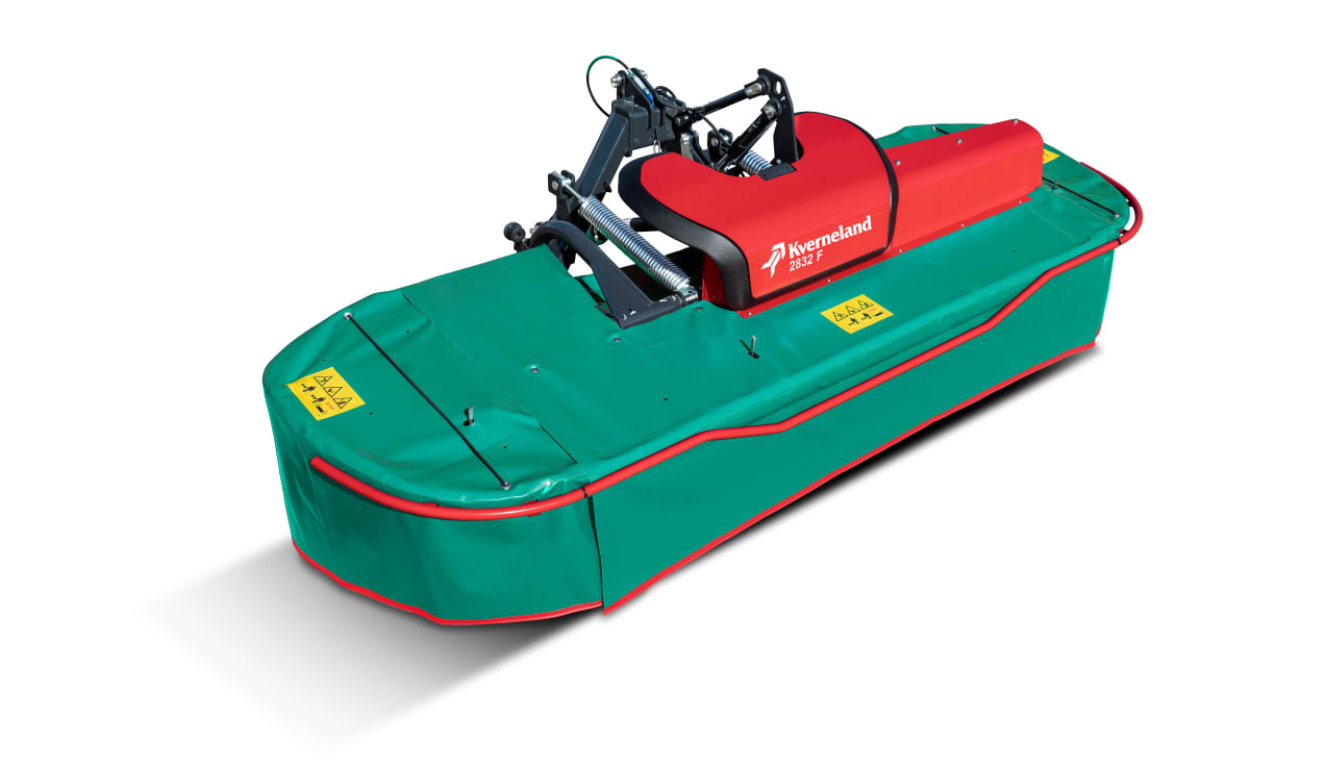

Kverneland 2832 F II | 2836 F II

Front Mounted Disc Mower

Kverneland 2800 F front mounted disc mowers, with 3.16 – 3.57m working width, is characterized by outstanding ground following ability, easy operation and low weight, leading to excellent cutting performance and ground following ability in all terrain. At standard settings the cutterbar has a remarkable 430mm upwards and 210mm downwards adaptation range, in combination with a transverse pivoting range of 17°. The design does not require a flexible front linkage, as the movement is built into the machine.

Talk to an Expert

Features

Cutterbar with Round Discs

Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission
Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs – at the same time as a clean and aggressive cut
The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar
The long curved gear wheels running in oil provides a very quiet and reliable power transmission
The fully welded cutterbar gives a very stiff and strong design for high durability
With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever

Talk to an Expert

Features

750/1000 rpm Gearbox

Standard PTO speed is 1000 rpm. However by simply switching driveline pulleys, 750 rpm for reduced fuel consumption can be achieved
This makes it possible to maintain the correct PTO speed, but using reduced engine revs, creating an opportunity for lower fuel consumption – an innovative solution to the problem of front PTO systems not offering an Economy speed

Talk to an Expert

Features

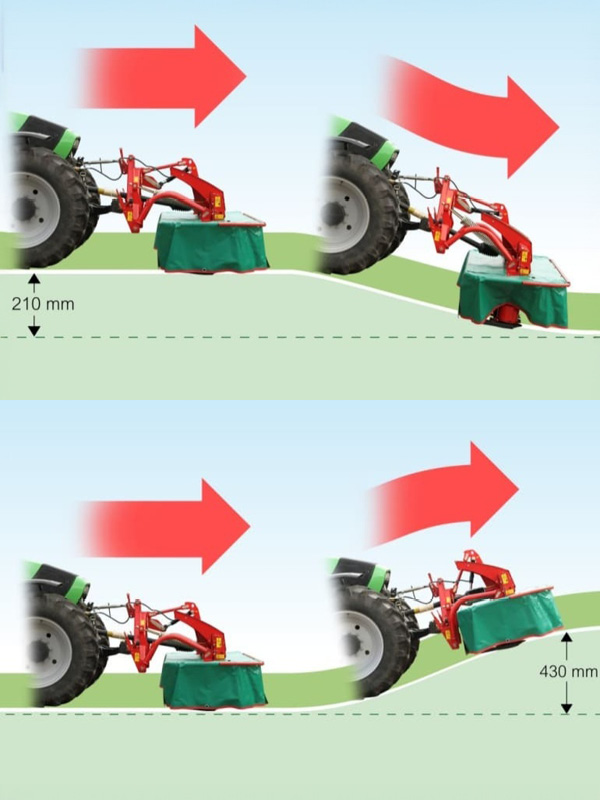

Ground Adaptation

The 2832 F is characterized by excellent cutting performance and ground following ability in all terrain. The design does not require a flexible front linkage, as the movement is build into the machine
To ensure best possible pattern of movement, the mowing unit moves independently from the front linkage
The mower design allows a transverse adaptation of up to 17°

Talk to an Expert

Brochure

Specifications

Compare specifications below, to find out what will be suit your operations

Models	2832 F II	2836 F II
Sort	Front Mounted
Min. HP Requirement	29 kW / 40 hp	37 kW / 50 HP
Weight	815 kg	900 kg
Width		Header Nav
Working Width	3.16 m	3.57 m
Transport Width	3 m	3.4 m
PTO Speed	750/1000 RPM
No. of Discs	8	9
Knives	16	18
Linkage (CAT)	2
