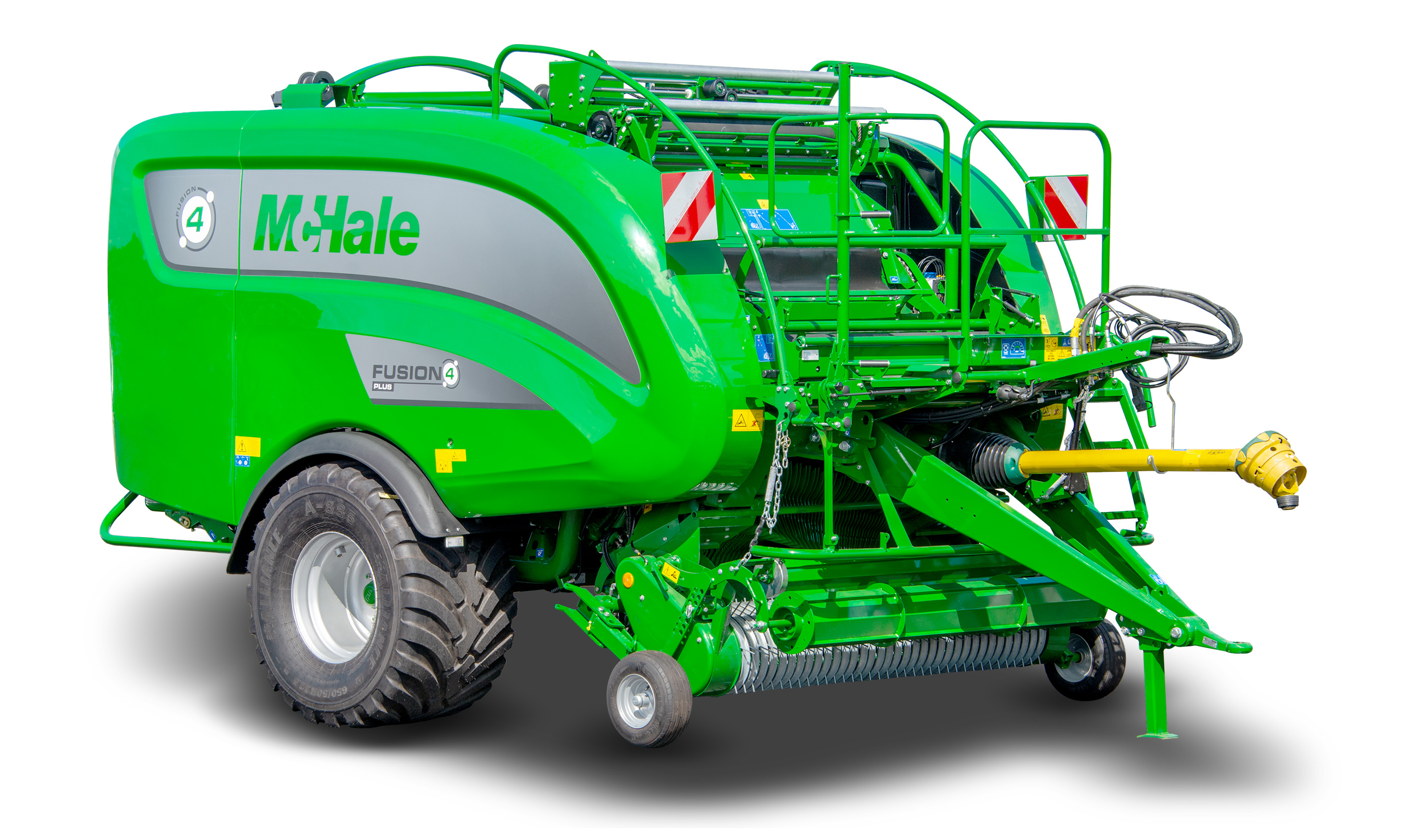

Fusion 4 Plus
The McHale Fusion 4 is a robust, fully automatic, integrated baler wrapper recognised worldwide for its unique patented bale transfer, vertical wrapping ring and high output.
The machine is equipped with a 25-knife chopping unit, automatic progressive greasing system and a servo operated load sensing control valve, which when combined with the Expert Plus control console, makes the baling and wrapping process fully automatic. The machine is fitted with 560/60-22.5 tyres as standard.
Film Binding
The concept of putting film on the barrel of the bale is known as “Film binding technology.” The plastic, which is applied to the barrel of the bale forms an additional layer of wrap across the largest surface of the bale, whilst also binding the bale together.
The film which is applied to the barrel of the bale can be stretched according to the manufacturers recommendations which is a higher ratio than can be achieved with net wrap. This additional layer of film on the barrel of the bale provides higher quality silage as the film can be stretched more than net. This in turn, expels more air, resulting in better silage quality.
By using film to bind the bale together, removal and recycling of the film is made easier as the farmer is only left with one form of waste to recycle and can avoid the unpleasant and time consuming job of separating net from the plastic.
Patented Bale Transfer
When the netting process is complete the bale chamber splits horizontally. As the top section of the bale chamber moves up, the lower section of the bale chamber simultaneously moves up and out, transferring the bale onto the wrapping platform.
Control Terminals
The McHale Fusion 4 Plus is fitted with ISOBUS as standard. For customers without an ISOBUS tractor, an optional ISO-PLAY 7 or ISO-PLAY 12 terminal can be used. Through the ISOBUS tractor’s terminal or McHale’s ISO-PLAY terminals, the operator is provided with clear indicators of machine performance and allows for increased levels of monitoring, through the graphic display.
In normal working conditions, the ever-efficient wrapping process is always completed ahead of the baler, meaning that the wrapping platform is always ready and waiting to receive the next bale.
Over the course of a baling season, machines have to work with different volumes of crop. The McHale patented adaptive intake allows the intake area to automatically adjust for light and heavy crops to facilitate a smooth crop flow into the chamber.

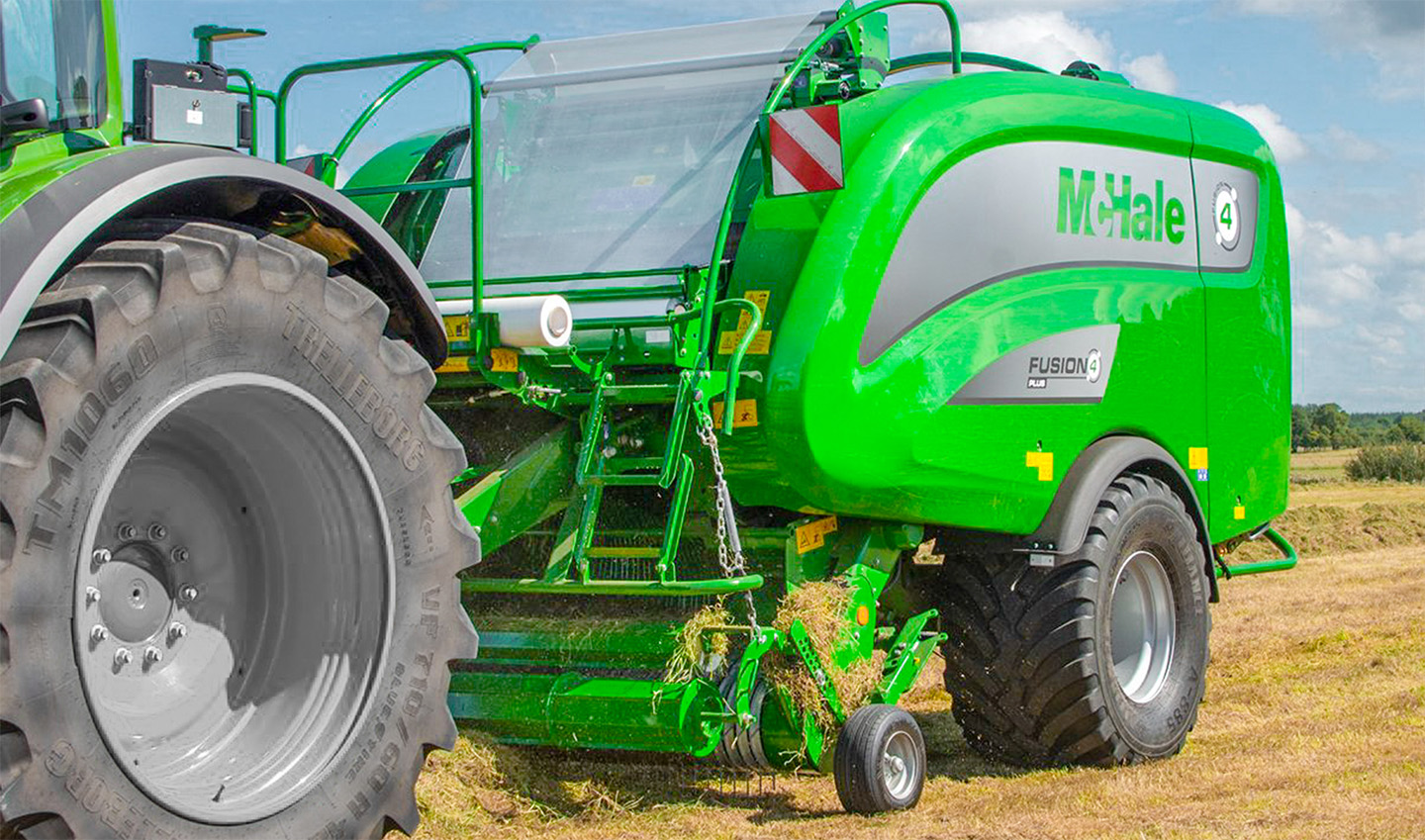

McHale have created their highest output pick-up for the Fusion range. The new Profi-Flo pick-up has been designed to increase crop intake through more efficient crop flow and has been engineered to ensure end users are operating with a high-performance pick-up that is designed to suit various working conditions.
Over the last decade, McHale has designed and developed various types of pick-ups. After extensive testing, McHale decided it will offer customers the choice of 2 pick-up options depending on their working conditions.
Specifications
Compare specifications below, to find out what will be suit your operations
| Models | Fusion Vario | Fusion Vario Plus | Fusion 4 Plus |
|---|---|---|---|
| Weight | 6500kg** | ||
| Length | 6.3 m | 5.8 m | |
| Height | 3.3 m | 3.03 m | |
| Width | 2.94 m | 2.76 or 2.94m* | |
| Working Width | 2 m | 2.1 m | |
| Knives | 15 | ||
| No. of Rollers | 18 | ||
| Bale Diameter | 0.6 - 1.68 m | 1.25 m | |
| Bale Chamber Width | 1.23 m | ||
| Bale Chamber Feed | 15 Knife Chopper Feed Rotor | V660 Rotor | |
| Number of Belts | 3 | 1 | 3 |
| Theor. Chop Length | 65 mm | 46 mm | |
| Unblocking System | Drop Floor | Automatic Drop Floor* | |
| Knife Activation | Electronic Control | ||
| Knife Protection | Hydraulic | ||
| Compare | |||
* When connected to an ISOBUS enabled tractor ** Value will vary depending on specification
